SIDE GEAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

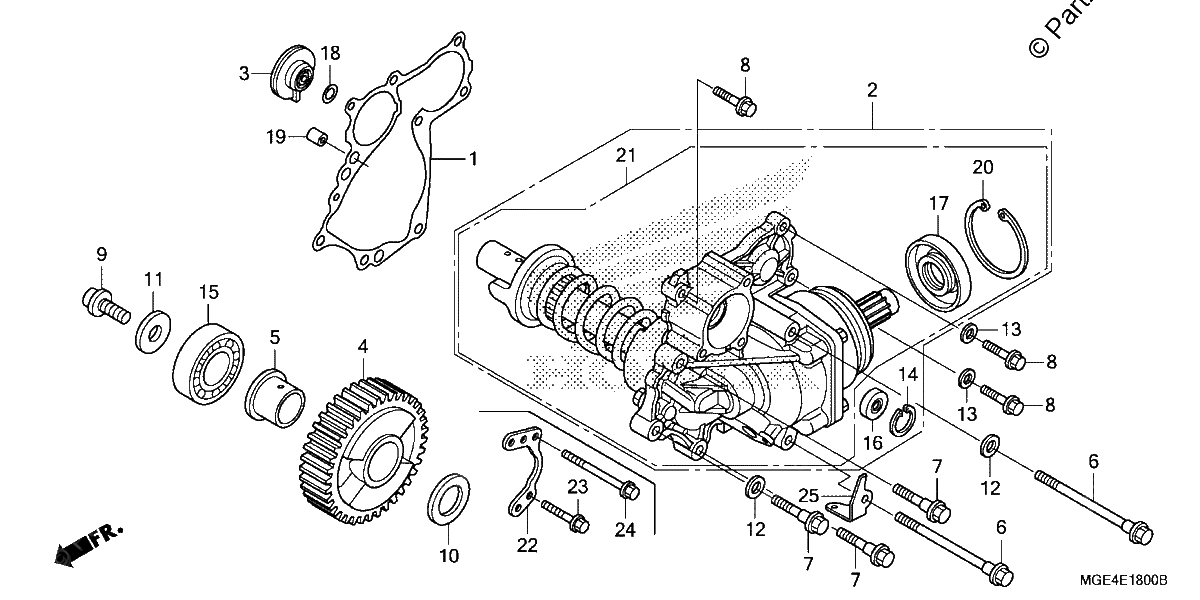

Diagrama de SIDE GEAR CASE

Repuestos

#001
11663-MGE-003
GASKET, SIDE GEAR CASE
$26.96¢13 478
1
#004
23541-MGE-D00
GEAR, FINAL DRIVEN (39T)
$145.75¢72 875
1
#005
23733-MGE-000
COLLAR (25X30X28.6)
$38.19¢19 096
1
#006
90005-MGE-010
BOLT, FLANGE (8X95)
$5.93¢2 967
1
#007
90006-MGE-010
BOLT, UBS (8X40)
$6.39¢3 197
1
#008
90016-GHB-680
BOLT, FLANGE (6X28)
$2.69¢1 346
1
#009
90037-ME9-000
BOLT, SPECIAL (10MM)
$8.58¢4 289
1
#010
90403-MGE-000
WASHER, SPECIAL (25X40.4X1.2)
$6.09¢3 048
1
#011
90414-MGE-D00
WASHER (10.5X36X4)
$2.78¢1 392
1
#012
90442-028-000
WASHER, SEALING (8MM)
$2.09¢1 047
1
#013
90441-706-000
WASHER, SEALING (6MM)
$1.31¢655
1
#015
91005-MGE-003
BEARING, BALL (6305)
$28.49¢14 243
1
#017
91205-MGE-003
OIL SEAL (28X66X8)
$12.95¢6 474
1
#019
94302-10120
PIN, DOWEL (10X12)
$1.70¢851
1
#020
94520-65120
CIRCLIP (INNER) (65MM)
$3.62¢1 811
1
#021
21100-MGE-D00
CASE ASSY., SIDE GEAR
$2991.74¢1 495 868
1
#022
32156-MGE-D01
STAY, HARNESS CLIP
$5.28¢2 639
1
#022
32156-MGE-D00
STAY, HARNESS CLIP
$5.28¢2 639
1
#023
90016-GHB-700
BOLT, FLANGE (6X35)
$2.59¢1 294
1
#024
90016-GHB-760
BOLT, FLANGE (6X65)
$2.96¢1 478
1
