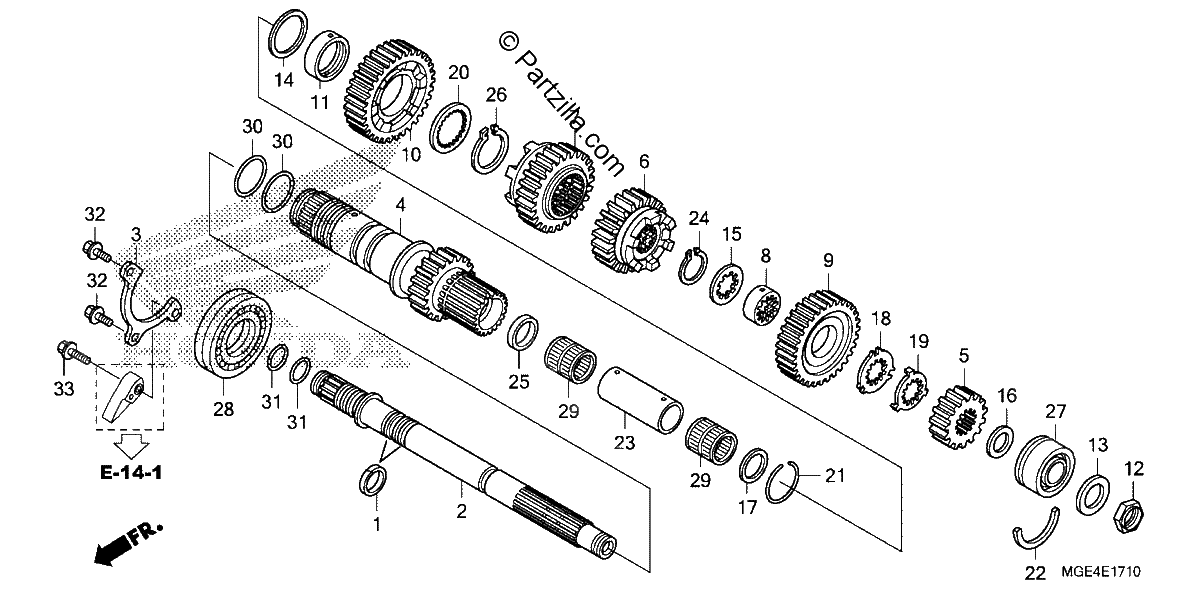

TRANSMISSION MAINSHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RING, SEAL (28MM)
$4.58¢2 288
#002
MAINSHAFT (INNER)
$315.86¢157 931
#003
PLATE, BEARING SETTING
$6.60¢3 300
#004
MAINSHAFT (OUTER) (19T)
$403.20¢201 600
#005
GEAR, MAINSHAFT LOW (15T)
$81.19¢40 594
#006
GEAR, MAINSHAFT THIRD (22T)
$158.38¢79 188
#007
GEAR, MAINSHAFT FOURTH (25T)
$165.32¢82 663
#008
COLLAR, SPLINE (28X13.5)
$39.81¢19 906
#009
GEAR, MAINSHAFT FIFTH (31T)
$161.16¢80 581
#010
GEAR, MAINSHAFT SIXTH (33T)
$161.16¢80 581
#011
COLLAR (40X43X12.5)
$19.04¢9 519
#012
NUT, LOCK (22MM)
$4.59¢2 294
#013
WASHER (22X38X2.5)
$6.64¢3 319
#014
WASHER (40.2X51X1)
$15.19¢7 594
#015
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
#016
WASHER B, THRUST (22MM) (BLUE)
$5.90¢2 950
#017
WASHER (28.5X32X1.5)
$10.25¢5 125
#018
WASHER, SPLINE (28MM)
$13.61¢6 806
#019
WASHER, LOCK (28MM)
$13.61¢6 806
#020
WASHER, SPLINE (40MM)
$10.39¢5 194
#021
CLIP (33.2MM)
$6.13¢3 063
#022
SET-RING (48MM)
$7.08¢3 538
#023
COLLAR, NEEDLE BEARING
$31.39¢15 694
#024
CIRCLIP (28MM)
$4.54¢2 269
#025
COLLAR B, NEEDLE BEARING
$10.02¢5 012
#026
CIRCLIP (40MM)
$8.94¢4 469
#027
BEARING, SPECIAL BALL (5204S)
$30.02¢15 013
#028
BEARING SET, RADIAL BALL
$67.31¢33 656
#029
BEARING, NEEDLE (28X32X27.2) (THOMPSON)
$20.90¢10 450
#030
O-RING (35.2X1.9)
$4.55¢2 275
#031
O-RING (23.3X1.9)
$2.50¢1 250
#032
BOLT, FLANGE (6X20)
$2.27¢1 138
#033
BOLT, FLANGE (6X28)
$2.34¢1 169
