SWINGARM

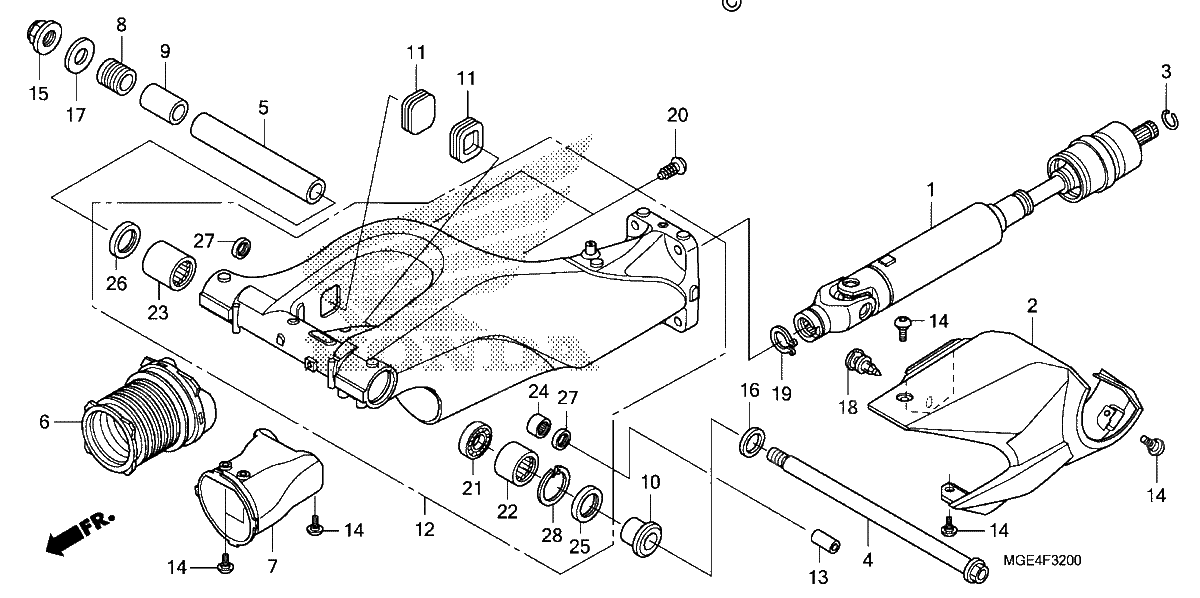

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SHAFT Assembly., PROPELLER
No Disponible
#001
SHAFT ASSY., PROPELLER
$1737.75¢868 875
#002
COVER, FINAL GEAR
$69.18¢34 588
#003
SET-RING (24X1.6)
$4.13¢2 063
#004
BOLT, SWINGARM PIVOT
$101.41¢50 706
#005
COLLAR, SWINGARM PIVOT
$39.63¢19 813
#006
BOOT, JOINT
$43.24¢21 619
#007
COVER, PROPELLER SHAFT
$46.19¢23 094
#008
BOLT, PIVOT ADJUSTING
$32.25¢16 125
#009
COLLAR, R. PIVOT DISTANCE
$35.64¢17 819
#010
COLLAR, R. PIVOT DISTANCE
$31.23¢15 613
#011
GROMMET, SWINGARM
$3.77¢1 888
#012
SWINGARM SUB-Assembly.
$1770.86¢885 431
#013
COLLAR, CUSHION ARM
$11.56¢5 781
#014
BOLT, SPECIAL (6X12)
$2.54¢1 269
#015
NUT, U (22MM)
$22.69¢11 344
#016
WASHER (26X41X3)
$5.78¢2 888
#017
WASHER (22.2X44X3)
$6.11¢3 056
#018
RIVET, PUSH PULL
$3.24¢1 619
#019
CIRCLIP, SPECIAL (26MM)
$7.54¢3 769
#020
PLUG, HOLE
$1.68¢838
#021
BEARING, RADIAL BALL (6905)
$19.49¢9 744
#022
BEARING, NEEDLE (32X42X20)
$37.27¢18 638
#023
BEARING, NEEDLE (32X42X37)
$24.45¢12 225
#024
BEARING, NEEDLE (20X26X20)
$21.50¢10 750
#025
DUST SEAL (32X45X5)
$8.39¢4 194
#026
DUST SEAL (32X42X6)
$7.77¢3 887
#027
DUST SEAL (20X26X4.5) (ARAI)
$10.76¢5 381
#028
CIRCLIP, INNER (45MM)
$2.95¢1 475
