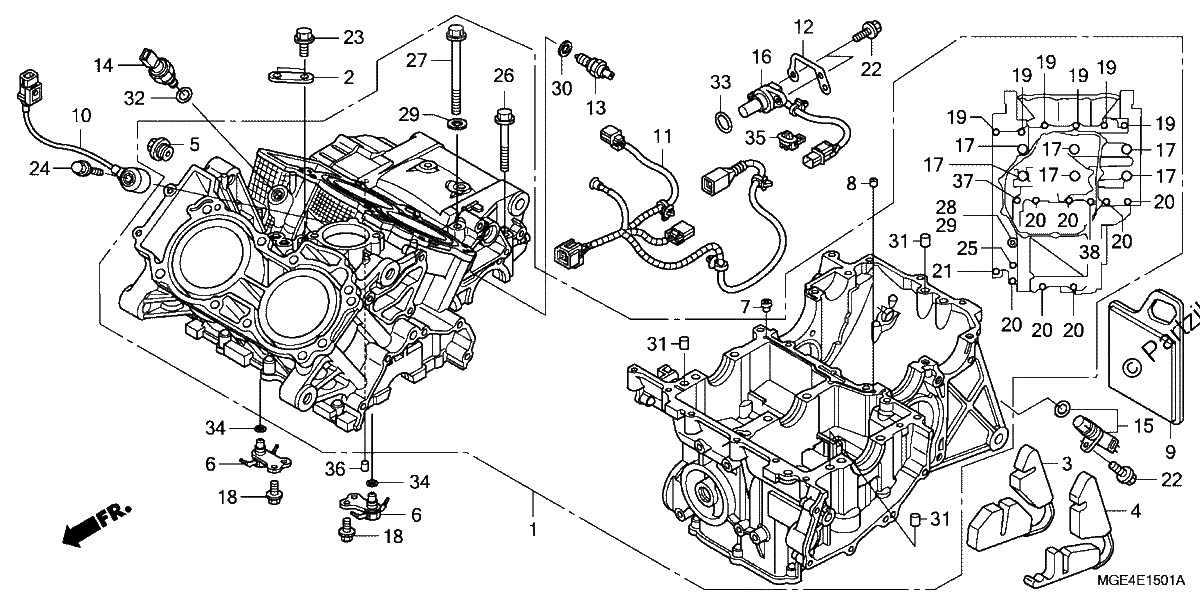

CRANKCASE 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE SET
$4333.53¢2 166 763
#002
BRIDGE, KNOCK SENSOR
$5.22¢2 613
#003
RUBBER, R. INSERT
$23.44¢11 719
#004
RUBBER, L. INSERT
$21.89¢10 944
#005
JOINT, COVER (INNER)
$29.20¢14 600
#006
JET, OIL
$48.61¢24 306
#007
ORIFICE A
$7.11¢3 556
#008
ORIFICE C
$6.80¢3 400
#009
RUBBER, RR. ENGINE
$17.38¢8 688
#010
SENSOR, KNOCK
$78.26¢39 131
#011
SUB-HARNESS, ENGINE (2)
$132.53¢66 263
#012
STAY, CONNECTOR
$4.14¢2 069
#013
SWITCH ASSY., NEUTRAL (TOYO)
$22.11¢11 056
#014
SENSOR, OIL PRESSURE
$220.39¢110 194
#015
SENSOR ASSY., SPEED
$102.91¢51 456
#016
SENSOR ASSY., SPEED
$183.84¢91 919
#017
BOLT, FLANGE (9X109)
$9.45¢4 725
#018
BOLT, KNOCK (6MM)
$3.65¢1 825
#019
BOLT, FLANGE (7X40)
$3.44¢1 719
#020
BOLT, FLANGE (6X28)
$2.81¢1 406
#021
BOLT, FLANGE (6X35)
$2.81¢1 406
#022
BOLT, FLANGE (6X16)
$3.01¢1 506
#023
BOLT, FLANGE (8X14)
$3.01¢1 506
#024
BOLT, FLANGE (8X30)
$3.44¢1 719
#025
BOLT, FLANGE (8X40)
$3.44¢1 719
#026
BOLT, FLANGE (8X70)
$4.30¢2 150
#027
BOLT, FLANGE (8X120)
$6.64¢3 319
#028
BOLT, FLANGE (8X125)
$6.64¢3 319
#029
WASHER, SEALING (8MM)
$2.92¢1 463
#030
WASHER, NEUTRAL
$2.48¢1 238
#031
PIN, DOWEL (10X16)
$5.21¢2 606
#032
O-RING (13X1.5)
$2.09¢1 044
#033
O-RING (18.1X3.6)
$4.28¢2 138
#034
O-RING (5X1.7) (ARAI)
$3.65¢1 825
#035
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#036
PIN B, DOWEL (8X10)
$2.89¢1 444
#037
BOLT, FLANGE (8X65)
$2.21¢1 106
#038
BOLT, FLANGE (8X110)
$3.54¢1 769
