CLUTCH VFR1200F

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

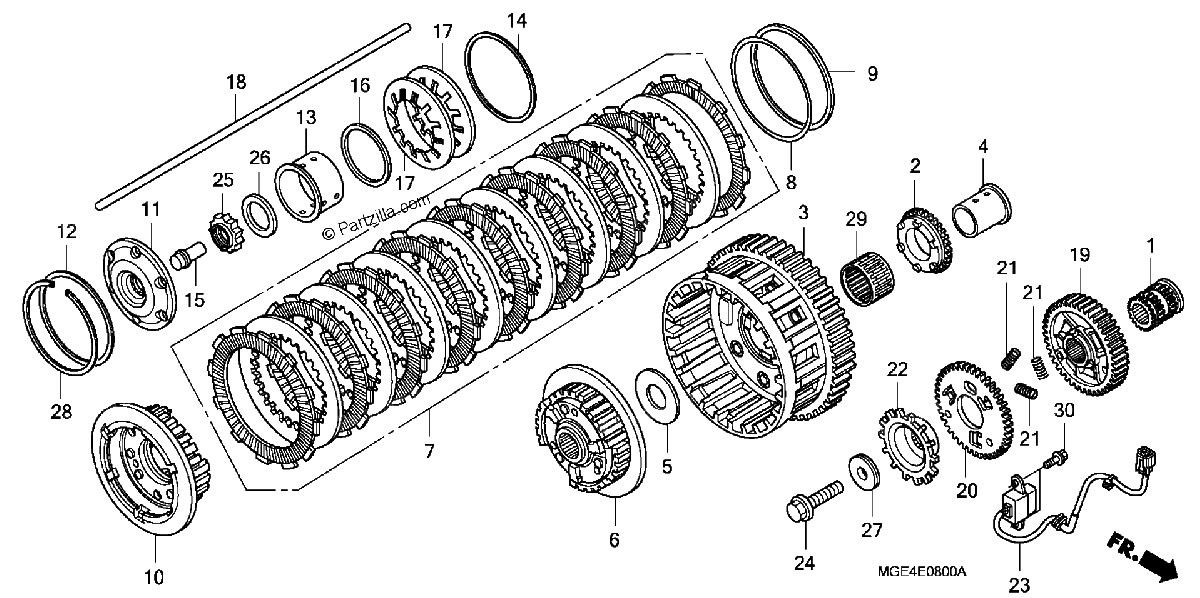

Diagrama de CLUTCH VFR1200F

Repuestos

#1
14406-MGE-000
SPROCKET, TIMING (20T)
$76.28¢38 138
1
#2
15131-MGE-003
SPROCKET, OIL PUMP DRIVE (30T)
$75.96¢37 981
1
#3
22100-MGE-000
CLUTCH OUTER
$487.98¢243 988
1
#4
22116-MGE-000
GUIDE, CLUTCH (OUTER)
$29.26¢14 631
1
#5
22117-MEJ-610
COLLAR, DISTANCE
$12.05¢6 025
1
#6
22120-MGE-050
CENTER, CLUTCH
$550.45¢275 225
1
#7
22210-MGE-305
DISK SET, CLUTCH
$268.52¢134 263
1
#8
22325-MEL-000
SPRING, CLUTCH PLATE
$13.51¢6 756
1
#9
22326-MGE-000
SEAT, JUDDER SPRING
$15.38¢7 688
1
#10
22350-MGE-010
PLATE, CLUTCH PRESSURE
$328.59¢164 294
1
#11
22354-MGE-000
LIFTER, CLUTCH
$73.75¢36 875
1
#12
22356-MGE-000
SEAT, CLUTCH LIFTER
$18.61¢9 306
1
#13
22365-MGE-010
HOLDER, CLUTCH SPRING
$59.35¢29 675
1
#14
22366-MGE-000
SEAT, CLUTCH SPRING
$20.41¢10 206
1
#15
22366-MM5-000
PIECE, CLUTCH JOINT
$31.44¢15 719
1
#16
22368-MGE-020
SEAT B, CLUTCH SPRING
$18.17¢9 087
1
#17
22401-MGE-020
SPRING, CLUTCH
$16.29¢8 144
1
#18
22850-MGE-000
ROD, CLUTCH LIFTER
$37.95¢18 975
1
#19
23103-MGE-000
GEAR, PRIMARY DRIVE (42T)
$147.91¢73 956
1
#20
23104-MGE-000
SUB-GEAR, PRIMARY (42T)
$84.65¢42 325
1
#21
23115-MGE-000
SPRING, PRIMARY DAMPER
$11.84¢5 919
1
#22
30291-MGE-000
ROTOR, PULSE
$25.49¢12 744
1
#23
30300-MGE-641
GENERATOR ASSY., PULSE
$97.64¢48 819
1
#24
90024-MGE-000
BOLT, FLANGE (12X45)
$9.20¢4 600
1
#25
90231-MS2-610
NUT, LOCK (25MM)
$21.80¢10 900
1
#26
90407-MFL-000
WASHER (25.1X37X3.2)
$5.02¢2 512
1
#27
90408-MGE-000
WASHER (12.5X36X6)
$9.20¢4 600
1
#28
90601-MFL-000
CIRCLIP (INNER) (102)
$7.30¢3 650
1
#29
91102-MFL-881
BEARING B, NEEDLE (35X41X27.8) (WHITE)
$10.00¢5 000
1
#30
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
