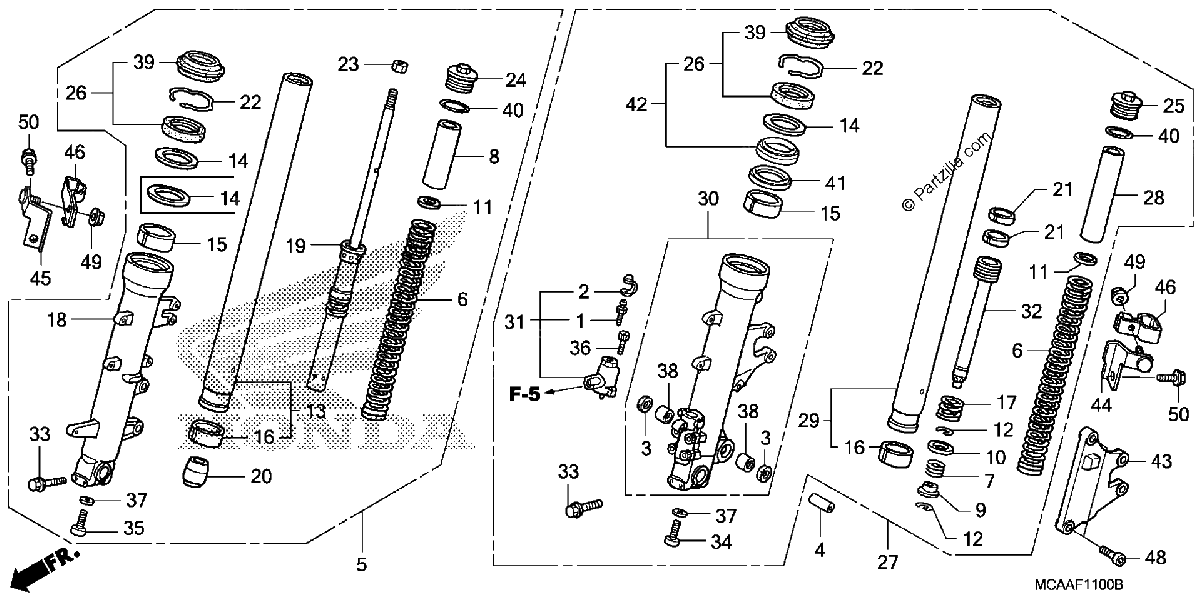

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#1
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#002
CAP, BLEEDER
$6.13¢3 063
#2
CAP, BLEEDER
$6.13¢3 063
#3
DUST SEAL, BRAKE CAM (NOK)
$3.65¢1 825
#003
DUST SEAL, BRAKE CAM (NOK)
$3.65¢1 825
#4
COLLAR, PIVOT
$11.74¢5 869
#004
COLLAR, PIVOT
$11.74¢5 869
#005
FORK ASSY., R. FR. (SHOWA)
$736.76¢368 381
#5
FORK ASSY., R. FR. (SHOWA)
$736.76¢368 381
#6
SPRING, FR. FORK
$19.24¢9 619
#006
SPRING, FR. FORK
$19.24¢9 619
#007
SPRING, OIL LOCK
$7.13¢3 563
#7
SPRING, OIL LOCK
$7.13¢3 563
#8
COLLAR, SPRING
$6.29¢3 144
#008
COLLAR, SPRING
$6.29¢3 144
#9
VALVE, OIL LOCK
$6.09¢3 044
#009
VALVE, OIL LOCK
$6.09¢3 044
#010
SEAT, SPRING
$6.79¢3 394
#10
SEAT, SPRING
$6.79¢3 394
#011
SEAT, SPRING
$7.55¢3 775
#11
SEAT, SPRING
$7.55¢3 775
#12
RING, STOPPER
$3.65¢1 825
#012
RING, STOPPER
$3.65¢1 825
#013
PIPE, R. FR. FORK
$311.22¢155 612
#13
PIPE, R. FR. FORK
$311.22¢155 612
#14
RING, BACK-UP
$11.03¢5 513
#014
RING, BACK-UP
$11.03¢5 513
#15
BUSH, GUIDE
$12.61¢6 306
#015
BUSH, GUIDE
$12.61¢6 306
#016
BUSH, SLIDER
$12.96¢6 481
#16
BUSH, SLIDER
$12.96¢6 481
#17
SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)
$18.21¢9 106
#017
SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)
$18.21¢9 106
#018
CASE, R. (LOWER) (SHOWA)
$277.59¢138 794
#18
CASE, R. (LOWER) (SHOWA)
$277.59¢138 794
#19
DAMPER, FR.
$171.41¢85 706
#019
DAMPER, FR.
$171.41¢85 706
#20
PIECE, OIL LOCK
$12.31¢6 156
#020
PIECE, OIL LOCK
$12.31¢6 156
#21
RING, PISTON
$9.22¢4 613
#021
RING, PISTON
$9.22¢4 613
#022
RING, OIL SEAL STOPPER
$6.20¢3 100
#22
RING, OIL SEAL STOPPER
$6.20¢3 100
#23
NUT, HEX. (10MM)
$3.73¢1 863
#023
NUT, HEX. (10MM)
$3.73¢1 863
#24
BOLT, FR. FORK
$37.56¢18 781
#024
BOLT, FR. FORK
$37.56¢18 781
#025
BOLT, FR. FORK
$20.76¢10 381
#25
BOLT, FR. FORK
$20.76¢10 381
#26
SEAL SET, Front FORK
$37.79¢18 894
#026
SEAL SET, Front FORK
$37.79¢18 894
#027
FORK ASSY., L. FR. (SHOWA)
$875.14¢437 569
#27
FORK ASSY., L. FR. (SHOWA)
$875.14¢437 569
#028
COLLAR B, SPRING
$6.29¢3 144
#28
COLLAR B, SPRING
$6.29¢3 144
#029
PIPE, L. FR. FORK
$184.51¢92 256
#29
PIPE, L. FR. FORK
$184.51¢92 256
#30
CASE ASSY., L. (LOWER) (CONTRLD PART:CONTACT TECHLINE
$276.57¢138 288
#030
CASE ASSY., L. (LOWER) (CONTRLD PART:CONTACT TECHLINE
$276.57¢138 288
#031
CASE, PLUNGER
$337.25¢168 625
#31
CASE, PLUNGER
$337.25¢168 625
#032
PIPE, SEAT
$290.88¢145 438
#32
PIPE, SEAT
$290.88¢145 438
#33
BOLT, FLANGE (8X45)
$5.99¢2 994
#033
BOLT, FLANGE (8X45)
$5.99¢2 994
#034
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
#34
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
#035
BOLT, SOCKET (8X27)
$6.21¢3 106
#35
BOLT, SOCKET (8X27)
$6.21¢3 106
#036
BOLT, SOCKET (5X18)
$5.21¢2 606
#36
BOLT, SOCKET (5X18)
$5.21¢2 606
#37
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#037
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#38
BEARING, NEEDLE (14X20X12)
$49.61¢24 806
#038
BEARING, NEEDLE (14X20X12)
$49.61¢24 806
#39
DUST SEAL
$14.95¢7 475
#039
DUST SEAL
$14.95¢7 475
#40
O-RING (37.2X2.4) (SHOWA)
$3.65¢1 825
#040
O-RING (37.2X2.4) (SHOWA)
$3.65¢1 825
#041
RING, BACK-UP
$5.45¢2 725
#41
RING, BACK-UP
$5.45¢2 725
#042
SEAL SET, FR. FORK
$37.17¢18 588
#42
SEAL SET, FR. FORK
$37.17¢18 588
