WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

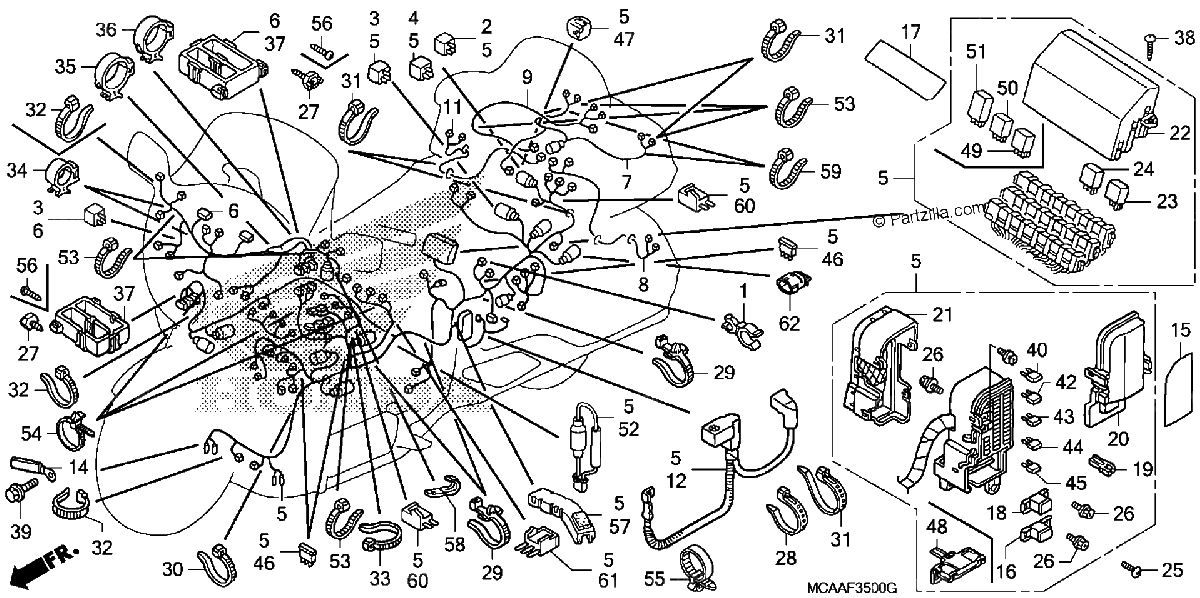

Diagrama de WIRE HARNESS

Repuestos

#001
11338-KJ9-751
CLIP, BREATHER TUBE
$3.53¢1 765
1
#1
11338-KJ9-751
CLIP, BREATHER TUBE
$3.53¢1 765
1
#002
31700-MM8-610
RECTIFIER, SILICON
$28.21¢14 105
1
#2
31700-MM8-610
RECTIFIER, SILICON
$28.21¢14 105
1
#5
32100-MCA-R50
WIRE HARNESS
$1867.34¢933 668
1
#005
32100-MCA-R50
WIRE HARNESS
$1867.34¢933 668
1
#6
32105-MCA-R50
SUB-HARNESS, FAIRING (NOT AVAILABLE)
No Disponible
1
#006
32105-MCA-R50
SUB-HARNESS, FAIRING (NOT AVAILABLE)
No Disponible
1
#7
32120-MCA-H50
SUB-HARNESS, TAIL&TRUNK
$224.95¢112 476
1
#007
32120-MCA-H50
SUB-HARNESS, TAIL&TRUNK
$224.95¢112 476
1
#8
32130-MCA-A60
SUB-HARNESS, L SADDLEBAG
$89.11¢44 557
1
#008
32130-MCA-A60
SUB-HARNESS, L SADDLEBAG
$89.11¢44 557
1
#009
32140-MCA-A71
SUB-HARNESS, TRUNK UNIT
$453.33¢226 665
1
#9
32140-MCA-A71
SUB-HARNESS, TRUNK UNIT
$453.33¢226 665
1
#011
32180-MCA-A60
SUB-HARNESS, R. SADDLEBAG
$81.40¢40 698
1
#11
32180-MCA-A60
SUB-HARNESS, R. SADDLEBAG
$81.40¢40 698
1
#012
32401-MCA-A60
CABLE, STARTER BATTERY
$26.71¢13 357
1
#12
32401-MCA-A60
CABLE, STARTER BATTERY
$26.71¢13 357
1
#16
38211-MCA-A61
FUSE, BLOCK (60A) (LOW-PROFILE)
$2.64¢1 322
1
#016
38211-MCA-A61
FUSE, BLOCK (60A) (LOW-PROFILE)
$2.64¢1 322
1
#18
38211-SNA-A11
FUSE, BLOCK (30A)
$4.83¢2 415
1
#018
38211-SNA-A11
FUSE, BLOCK (30A)
$4.83¢2 415
1
#019
38235-S04-003
PULLER, MINI FUSE (SUMITOMO)
$1.15¢575
1
#19
38235-S04-003
PULLER, MINI FUSE (SUMITOMO)
$1.15¢575
1
#20
38252-MCA-A61
COVER (UPPER)
$8.85¢4 427
1
#020
38252-MCA-A61
COVER (UPPER)
$8.85¢4 427
1
#021
38256-MCA-A61
COVER (LOWER)
$8.14¢4 071
1
#21
38256-MCA-A61
COVER (LOWER)
$8.14¢4 071
1
#22
38281-MCA-A61
COVER (UPPER)
$16.12¢8 061
1
#022
38281-MCA-A61
COVER (UPPER)
$16.12¢8 061
1
#025
90114-KFK-000
SCREW, SPECIAL (5X12)
$1.89¢943
1
#25
90114-KFK-000
SCREW, SPECIAL (5X12)
$1.89¢943
1
#29
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
$6.47¢3 237
1
#029
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
$6.47¢3 237
1
#030
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#30
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#32
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#032
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#033
90679-SG9-E01
BAND, SUCTION HOSE (BLACK)
$4.21¢2 105
1
#33
90679-SG9-E01
BAND, SUCTION HOSE (BLACK)
$4.21¢2 105
1
#34
90690-GHB-671
CLIP, CABLE (25MM)
$2.59¢1 294
1
#034
90690-GHB-671
CLIP, CABLE (25MM)
$2.59¢1 294
1
#35
90690-GHB-681
CLIP, CABLE (30MM)
$3.36¢1 679
1
#035
90690-GHB-681
CLIP, CABLE (30MM)
$3.36¢1 679
1
#037
91571-MCA-P00
HOLDER, CONNECTOR
$3.98¢1 989
1
#37
91571-MCA-P00
HOLDER, CONNECTOR
$3.98¢1 989
1
#038
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#38
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#39
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#040
98200-40500
FUSE, MINI (5A)
$1.37¢684
1
#40
98200-40500
FUSE, MINI (5A)
$1.37¢684
1
#42
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
#042
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
#43
98200-41500
FUSE, MINI (15A)
$1.37¢684
1
#043
98200-41500
FUSE, MINI (15A)
$1.37¢684
1
#44
98200-42000
FUSE, MINI (20A)
$1.37¢684
1
#044
98200-42000
FUSE, MINI (20A)
$1.37¢684
1
#045
98200-43000
FUSE, MINI (30A)
$1.98¢989
1
#45
98200-43000
FUSE, MINI (30A)
$1.98¢989
1
#046
32147-SF1-003
CONNECTOR, DIODE (3P)
$44.25¢22 126
1
#46
32147-SF1-003
CONNECTOR, DIODE (3P)
$44.25¢22 126
1
#47
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#047
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#48
38231-SFE-J01
FUSE A, MULTI BLOCK (120A/40A)
$23.72¢11 862
1
#048
38231-SFE-J01
FUSE A, MULTI BLOCK (120A/40A)
$23.72¢11 862
1
#49
38501-MCA-A61
RELAY ASSY., POWER (MICRO ISO 4P)
$16.51¢8 257
1
#049
38501-MCA-A61
RELAY ASSY., POWER (MICRO ISO 4P)
$16.51¢8 257
1
#50
38502-MCA-A61
RELAY ASSY., POWER (MICRO ISO 5P)
$16.51¢8 257
1
#050
38502-MCA-A61
RELAY ASSY., POWER (MICRO ISO 5P)
$16.51¢8 257
1
#51
38503-MCA-A61
RELAY, POWER (MICRO ISO 4P)
$4.47¢2 237
1
#051
38503-MCA-A61
RELAY, POWER (MICRO ISO 4P)
$4.47¢2 237
1
#052
39260-MCA-A01
FILTER, NOISE
No Disponible
1
#52
39260-MCA-A01
FILTER, NOISE
No Disponible
1
#053
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#054
90672-SA0-003
STRAP, CABLE (118MM) (BLACK)
$6.97¢3 484
1
#54
90672-SA0-003
STRAP, CABLE (118MM) (BLACK)
$6.97¢3 484
1
#055
90672-SB2-003
STRAP, CABLE (105MM) (BLACK)
$6.49¢3 243
1
#55
90672-SB2-003
STRAP, CABLE (105MM) (BLACK)
$6.49¢3 243
1
#56
93903-25320
SCREW, TAPPING (5X16)
$1.07¢535
1
#056
93903-25320
SCREW, TAPPING (5X16)
$1.07¢535
1
#57
32702-MCA-A61
PROTECTOR, HARNESS (B)
$6.14¢3 070
1
#057
32702-MCA-A61
PROTECTOR, HARNESS (B)
$6.14¢3 070
1
#61
32146-SJ4-003
DIODE (3P)
$19.02¢9 510
1
#061
32146-SJ4-003
DIODE (3P)
$19.02¢9 510
1
#62
32606-KCW-J91
CAP, DUMMY (2P) (RED)
$3.81¢1 903
1
#062
32606-KCW-J91
CAP, DUMMY (2P) (RED)
$3.81¢1 903
1
