CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

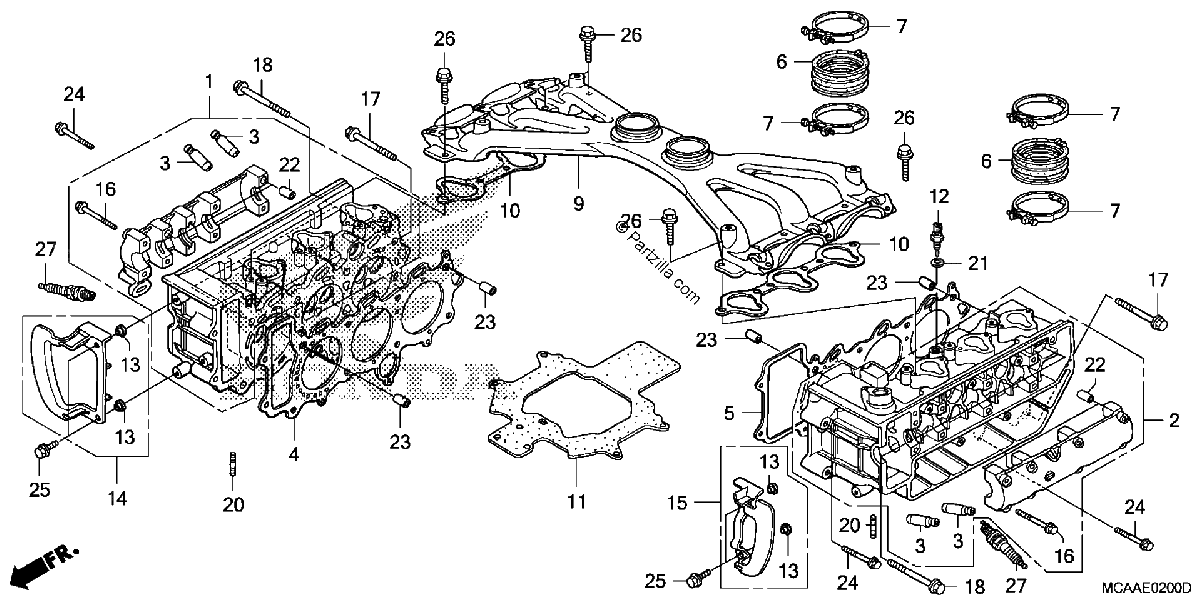

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-MCA-A20
CYLINDER HEAD Assembly BARE, Right.
$1378.11¢689 056
1
#001
12010-MCA-A20
CYLINDER HEAD Assembly BARE, Right.
$1378.11¢689 056
1
#002
12020-MCA-A20
CYLINDER HEAD ASSY., L.
$1318.81¢659 406
1
#2
12020-MCA-A20
CYLINDER HEAD ASSY., L.
$1318.81¢659 406
1
#3
12204-MCA-P00
GUIDE, VALVE (OVER SIZE)
$25.38¢12 688
1
#003
12204-MCA-P00
GUIDE, VALVE (OVER SIZE)
$25.38¢12 688
1
#4
12251-MCA-A61
GASKET, R. CYLINDER HEAD
$95.43¢47 713
1
#004
12251-MCA-A61
GASKET, R. CYLINDER HEAD
$95.43¢47 713
1
#5
12252-MCA-A61
GASKET, L. CYLINDER HEAD
$112.25¢56 125
1
#005
12252-MCA-A61
GASKET, L. CYLINDER HEAD
$112.25¢56 125
1
#6
16211-MCA-000
INSULATOR, THROTTLE BODY
$26.74¢13 369
1
#006
16211-MCA-000
INSULATOR, THROTTLE BODY
$26.74¢13 369
1
#007
16218-MCA-000
BAND, INSULATOR
$8.84¢4 419
1
#7
16218-MCA-000
BAND, INSULATOR
$8.84¢4 419
1
#9
17110-MCA-000
MANIFOLD, IN.
$650.25¢325 125
1
#009
17110-MCA-000
MANIFOLD, IN.
$650.25¢325 125
1
#10
17134-MCA-003
GASKET, IN. MANIFOLD
$20.82¢10 413
1
#010
17134-MCA-003
GASKET, IN. MANIFOLD
$20.82¢10 413
1
#011
17140-MCA-000
SHEET, IN. MANIFOLD
$53.52¢26 763
1
#11
17140-MCA-000
SHEET, IN. MANIFOLD
$53.52¢26 763
1
#012
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#12
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#013
61105-MA3-000
COLLAR, FR. FENDER
$4.90¢2 450
1
#13
61105-MA3-000
COLLAR, FR. FENDER
$4.90¢2 450
1
#014
64303-MCA-000
COVER, R. FR. (LOWER) (INNER)
$17.18¢8 588
1
#14
64303-MCA-000
COVER, R. FR. (LOWER) (INNER)
$17.18¢8 588
1
#015
64304-MCA-000
COVER, L. FR. (LOWER) (INNER)
$17.18¢8 588
1
#15
64304-MCA-000
COVER, L. FR. (LOWER) (INNER)
$17.18¢8 588
1
#016
90003-PT0-000
BOLT, FLANGE (6X50)
$5.13¢2 563
1
#16
90003-PT0-000
BOLT, FLANGE (6X50)
$5.13¢2 563
1
#017
90010-MCA-000
BOLT, FLANGE (9X73)
$4.46¢2 231
1
#17
90010-MCA-000
BOLT, FLANGE (9X73)
$4.46¢2 231
1
#018
90012-MCA-000
BOLT, FLANGE (9X89)
$3.24¢1 619
1
#18
90012-MCA-000
BOLT, FLANGE (9X89)
$3.24¢1 619
1
#020
90035-MN5-000
BOLT, STUD (8-6X40)
$5.47¢2 738
1
#20
90035-MN5-000
BOLT, STUD (8-6X40)
$5.47¢2 738
1
#21
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#021
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#22
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#022
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#023
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#23
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#24
95701-06045-08
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#024
95701-06045-08
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#25
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#025
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#026
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#26
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#027
98079-5514E
SPARK PLUG (BKR5E-11) (NGK)
$3.65¢1 825
1
#27
98079-5514E
SPARK PLUG (BKR5E-11) (NGK)
$3.65¢1 825
1
#027
98079-5515E
SPARK PLUG (K16PR-U11) (DENSO)
$3.65¢1 825
1
#27
98079-5515E
SPARK PLUG (K16PR-U11) (DENSO)
$3.65¢1 825
1
#27
98079-5614E
SPARK PLUG (BKR6E-11) (NGK)
$3.65¢1 825
1
#027
98079-5614E
SPARK PLUG (BKR6E-11) (NGK)
$3.65¢1 825
1
#27
98079-5714E
SPARK PLUG (BKR7E-11) (NGK)
$3.65¢1 825
1
#027
98079-5714E
SPARK PLUG (BKR7E-11) (NGK)
$3.65¢1 825
1
#027
98079-5715E
SPARK PLUG (K22PR-U11) (DENSO)
$3.65¢1 825
1
#27
98079-5715E
SPARK PLUG (K22PR-U11) (DENSO)
$3.65¢1 825
1
