WINDSCREEN GL1800 06

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

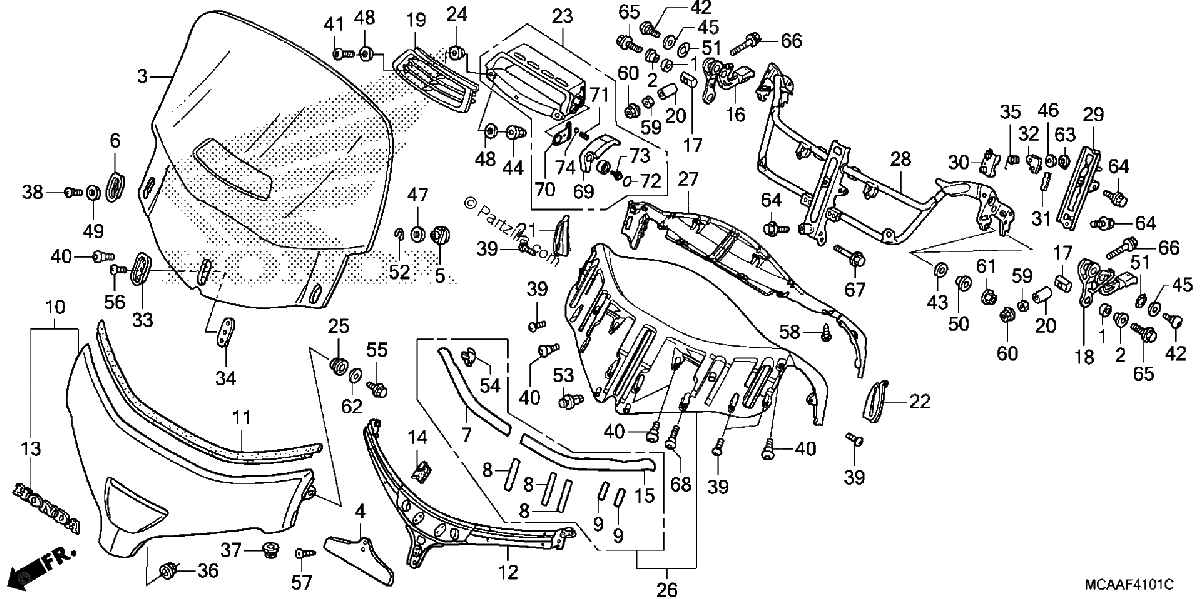

Diagrama de WINDSCREEN GL1800 06

Repuestos

#1
50605-GZ4-670
COLLAR, STEP RUBBER SETTING
$4.06¢2 030
1
#001
50605-GZ4-670
COLLAR, STEP RUBBER SETTING
$4.06¢2 030
1
#2
61105-KM7-910
COLLAR, FR. FENDER
$3.45¢1 725
1
#002
61105-KM7-910
COLLAR, FR. FENDER
$3.45¢1 725
1
#3
64100-MCA-305
WINDSCREEN (COO)
$790.58¢395 290
1
#003
64100-MCA-305
WINDSCREEN (COO)
$790.58¢395 290
1
#4
64113-MCA-000
COVER, GARNISH
$9.65¢4 824
1
#004
64113-MCA-000
COVER, GARNISH
$9.65¢4 824
1
#005
64114-MCA-000
NUT, WINDSCREEN SETTING
$6.54¢3 272
1
#5
64114-MCA-000
NUT, WINDSCREEN SETTING
$6.54¢3 272
1
#006
64116-MN5-000
PLATE, WINDSCREEN SETTING
$6.92¢3 461
1
#6
64116-MN5-000
PLATE, WINDSCREEN SETTING
$6.92¢3 461
1
#7
64117-MCA-300
TAPE A, R. SLIDE
$15.74¢7 872
1
#007
64117-MCA-300
TAPE A, R. SLIDE
$15.74¢7 872
1
#8
64118-MCA-300
TAPE B, SLIDE
$2.92¢1 461
1
#008
64118-MCA-300
TAPE B, SLIDE
$2.92¢1 461
1
#009
64119-MCA-300
TAPE C, SLIDE
$2.09¢1 047
1
#9
64119-MCA-300
TAPE C, SLIDE
$2.09¢1 047
1
#010
64120-MCA-A60ZR
GARNISH SET, SCREEN *YR292M* (WL) (MESQUITE BROWN METALLIC)
No Disponible
1
#10
64120-MCA-A60ZS
GARNISH SET, SCREEN Y130P (WL)(PEARL HOT ROD YELLOW) (NOT AVAILABLE)
No Disponible
1
#010
64120-MCA-A60ZS
GARNISH SET, SCREEN Y130P (WL)(PEARL HOT ROD YELLOW) (NOT AVAILABLE)
No Disponible
1
#010
64120-MCA-A60ZH
GARNISH SET, SCREEN *NHA73M* (WL) (NEBULOUS BLACK METALLIC)
No Disponible
1
#10
64120-MCA-A60ZR
GARNISH SET, SCREEN *YR292M* (WL) (MESQUITE BROWN METALLIC)
No Disponible
1
#010
64120-MCA-A60ZL
GARNISH SET, SCREEN *R325M* (WL) (CALIENTE RED METALLIC)
No Disponible
1
#10
64120-MCA-A60ZL
GARNISH SET, SCREEN *R325M* (WL) (CALIENTE RED METALLIC)
No Disponible
1
#10
64120-MCA-A60ZH
GARNISH SET, SCREEN *NHA73M* (WL) (NEBULOUS BLACK METALLIC)
No Disponible
1
#11
64121-MCA-000
SEAL, WINDSCREEN
$38.62¢19 309
1
#011
64121-MCA-000
SEAL, WINDSCREEN
$38.62¢19 309
1
#12
64122-MCA-000
HOLDER, WINDSCREEN
$84.04¢42 021
1
#012
64122-MCA-000
HOLDER, WINDSCREEN
$84.04¢42 021
1
#13
64125-MCA-A40
EMBLEM, FR. (HONDA)
$47.18¢23 592
1
#013
64125-MCA-A40
EMBLEM, FR. (HONDA)
$47.18¢23 592
1
#14
64127-MCA-010
RUBBER, SCREEN HOLDER
$5.21¢2 605
1
#014
64127-MCA-010
RUBBER, SCREEN HOLDER
$5.21¢2 605
1
#15
64128-MCA-300
TAPE A, L. SLIDE
$15.74¢7 872
1
#015
64128-MCA-300
TAPE A, L. SLIDE
$15.74¢7 872
1
#16
64133-MCA-A60
LINK, R. ADJUST
$32.17¢16 083
1
#016
64133-MCA-A60
LINK, R. ADJUST
$32.17¢16 083
1
#17
64137-MCA-000
BRACKET, TENSIONER
$8.11¢4 054
1
#017
64137-MCA-000
BRACKET, TENSIONER
$8.11¢4 054
1
#018
64143-MCA-A60
LINK, L. ADJUSTING
$32.17¢16 083
1
#18
64143-MCA-A60
LINK, L. ADJUSTING
$32.17¢16 083
1
#019
64150-MCA-A21
GRILLE, CENTER FRESH AIR
$13.98¢6 992
1
#19
64150-MCA-A21
GRILLE, CENTER FRESH AIR
$13.98¢6 992
1
#020
64152-MCA-000
COLLAR, ADJUSTING LEVER
$6.05¢3 024
1
#20
64152-MCA-000
COLLAR, ADJUSTING LEVER
$6.05¢3 024
1
#21
64153-MCA-A60
RUBBER, R. ADJUSTING LEVER
$8.49¢4 244
1
#021
64153-MCA-A60
RUBBER, R. ADJUSTING LEVER
$8.49¢4 244
1
#22
64163-MCA-A60
RUBBER, L. ADJUSTING LEVER
$7.27¢3 634
1
#022
64163-MCA-A60
RUBBER, L. ADJUSTING LEVER
$7.27¢3 634
1
#023
64170-MCA-A22
VISOR ASSY., FRESH AIR
$40.73¢20 367
1
#23
64170-MCA-A22
VISOR ASSY., FRESH AIR
$40.73¢20 367
1
#024
64205-MCA-A21
GROMMET
$0.77¢385
1
#24
64205-MCA-A21
GROMMET
$0.77¢385
1
#25
64246-MJ4-670
RUBBER, FAIRING MOUNTING
$5.36¢2 680
1
#025
64246-MJ4-670
RUBBER, FAIRING MOUNTING
$5.36¢2 680
1
#026
64255-MCA-S40ZA
VISOR A, METER PANEL *NH105* (MAT BLACK)
$321.44¢160 718
1
#26
64255-MCA-R30ZB
VISOR A, METER PANEL NH105 (MAT BLACK)
$321.44¢160 718
1
#026
64255-MCA-R30ZB
VISOR A, METER PANEL NH105 (MAT BLACK)
$321.44¢160 718
1
#027
64265-MCA-A60ZA
VISOR B, METER PANEL *NH1* (BLACK)
$96.14¢48 070
1
#27
64265-MCA-A60ZA
VISOR B, METER PANEL *NH1* (BLACK)
$96.14¢48 070
1
#28
64511-MCA-A60
STAY B, COWL (UPPER)
$301.22¢150 610
1
#028
64511-MCA-A60
STAY B, COWL (UPPER)
$301.22¢150 610
1
#029
64541-MCA-A60
HOLDER, ADJUSTER
$589.65¢294 826
1
#29
64541-MCA-A60
HOLDER, ADJUSTER
$589.65¢294 826
1
#30
64542-MCA-010
BODY, ADJUSTER
$15.31¢7 653
1
#030
64542-MCA-010
BODY, ADJUSTER
$15.31¢7 653
1
#31
64543-MCA-000
CAM B, ADJUSTER
$6.26¢3 128
1
#031
64543-MCA-000
CAM B, ADJUSTER
$6.26¢3 128
1
#032
64544-MCA-000
CAM A, ADJUSTER
$6.55¢3 278
1
#32
64544-MCA-000
CAM A, ADJUSTER
$6.55¢3 278
1
#033
64547-MCA-000
HOLDER A, SCREEN
$44.59¢22 293
1
#33
64547-MCA-000
HOLDER A, SCREEN
$44.59¢22 293
1
#34
64548-MCA-000
HOLDER B, SCREEN
$3.22¢1 610
1
#034
64548-MCA-000
HOLDER B, SCREEN
$3.22¢1 610
1
#035
64549-MCA-000
SPRING, HOLDER
$2.85¢1 426
1
#35
64549-MCA-000
SPRING, HOLDER
$2.85¢1 426
1
#036
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#36
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#37
83601-MN5-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#037
83601-MN5-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#38
90103-HC4-770
SCREW, SPLASH GUARD
$2.64¢1 322
1
#038
90103-HC4-770
SCREW, SPLASH GUARD
$2.64¢1 322
1
#039
90104-964-000
SCREW (5X12)
$2.77¢1 386
1
#39
90657-SB0-003
CLIP, SPLASH SHIELD
$5.88¢2 938
1
#39
90104-964-000
SCREW (5X12)
$2.77¢1 386
1
#40
90106-KY2-701
SCREW, PAN (6X11)
$4.74¢2 369
1
#040
90106-KY2-701
SCREW, PAN (6X11)
$4.74¢2 369
1
#041
90109-MBL-610
SCREW, PAN (5X15.5)
$3.36¢1 679
1
#41
90109-MBL-610
SCREW, PAN (5X15.5)
$3.36¢1 679
1
#042
90118-MCA-000
SCREW, PAN (6X11)
$3.06¢1 529
1
#42
90118-MCA-000
SCREW, PAN (6X11)
$3.06¢1 529
1
#43
90148-SA0-000
WASHER, BUMPER BOLT
$4.04¢2 018
1
#043
90148-SA0-000
WASHER, BUMPER BOLT
$4.04¢2 018
1
#044
90167-SA0-980
NUT, FLANGE CAP (5MM)
$6.24¢3 122
1
#44
90167-SA0-980
NUT, FLANGE CAP (5MM)
$6.24¢3 122
1
#045
90589-VD6-901
WASHER, THRUST (8.6X13X0.6)
$2.61¢1 305
1
#45
90589-VD6-901
WASHER, THRUST (8.6X13X0.6)
$2.61¢1 305
1
#046
90443-ZG3-000
WASHER (15.5MM)
$2.69¢1 346
1
#46
90443-ZG3-000
WASHER (15.5MM)
$2.69¢1 346
1
#047
90476-703-000
WASHER
$1.15¢575
1
#47
90476-703-000
WASHER
$1.15¢575
1
#48
90504-MCA-H50
WASHER, THRUST (5MM)
$1.71¢857
1
#048
90504-MCA-H50
WASHER, THRUST (5MM)
$1.71¢857
1
#049
90507-921-000
WASHER, NYLON (8MM)
$1.09¢546
1
#49
90507-921-000
WASHER, NYLON (8MM)
$1.09¢546
1
#50
90512-300-000
WASHER (6X20)
$3.44¢1 719
1
#050
90512-300-000
WASHER (6X20)
$3.44¢1 719
1
#051
90435-422-000
WASHER, WAVE (10MM)
$3.83¢1 915
1
#51
90435-422-000
WASHER, WAVE (10MM)
$3.83¢1 915
1
#52
90601-473-003
E-RING (8MM)
$2.66¢1 328
1
#052
90601-473-003
E-RING (8MM)
$2.66¢1 328
1
#053
90657-SB0-003
CLIP, SPLASH SHIELD
$5.88¢2 938
1
#54
90666-S84-A01
CLIP, SNAP FITTING
$0.76¢380
1
#054
90666-S84-A01
CLIP, SNAP FITTING
$0.76¢380
1
#055
92301-06008-0A
BOLT, RECESSED (6X8)
$1.74¢868
1
#55
92301-06008-0A
BOLT, RECESSED (6X8)
$1.74¢868
1
#056
90053-371-980
SCREW, PAN (6X8)
$1.30¢650
1
#56
93500-06008-1H
SCREW, PAN (6X8)
$1.30¢650
1
#56
93500-06008-0H
SCREW, PAN (6X8)
$1.30¢650
1
#56
90053-371-980
SCREW, PAN (6X8)
$1.30¢650
1
#056
93500-06008-0H
SCREW, PAN (6X8)
$1.30¢650
1
#056
93500-06008-0A
SCREW, PAN (6X8)
$1.30¢650
1
#56
93500-06008-0A
SCREW, PAN (6X8)
$1.30¢650
1
#056
93500-06008-1H
SCREW, PAN (6X8)
$1.30¢650
1
#057
93903-24020
SCREW, TAPPING (4X6)
$0.98¢489
1
#57
93903-24020
SCREW, TAPPING (4X6)
$0.98¢489
1
#058
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#58
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#59
94002-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#059
94002-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#60
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#060
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#61
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#061
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#62
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#062
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#63
94510-10000
CIRCLIP, OUTER (10MM)
$1.30¢650
1
#063
94510-10000
CIRCLIP, OUTER (10MM)
$1.30¢650
1
#64
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#064
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#65
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#065
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#066
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#66
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#67
96001-06045-00
BOLT, FLANGE (6X45)
$2.32¢1 162
1
#067
96001-06045-00
BOLT, FLANGE (6X45)
$2.32¢1 162
1
#68
90138-MCA-000
SCREW, PAN (6X14)
$2.33¢1 167
1
#068
90138-MCA-000
SCREW, PAN (6X14)
$2.33¢1 167
1
#69
64157-MCA-A20
LEVER, CENTER FRESH AIR
$19.10¢9 551
1
#069
64157-MCA-A20
LEVER, CENTER FRESH AIR
$19.10¢9 551
1
#070
64167-MCA-A21
PLATE, LEVER CLICK
$4.36¢2 179
1
#70
64167-MCA-A21
PLATE, LEVER CLICK
$4.36¢2 179
1
#071
64167-MT8-770
SPRING, LEVER CLICK
$3.69¢1 846
1
#71
64167-MT8-770
SPRING, LEVER CLICK
$3.69¢1 846
1
#072
64168-MT8-770
PLATE, COVER
$2.96¢1 478
1
#72
64168-MT8-770
PLATE, COVER
$2.96¢1 478
1
#73
90105-MB1-000
SCREW, SPECIAL (5X12)
$3.36¢1 679
1
#073
90105-MB1-000
SCREW, SPECIAL (5X12)
$3.36¢1 679
1
#074
91101-MAM-A80
BALL, STEEL (#6) (3/16)
$0.21¢104
1
#74
91101-MAM-A80
BALL, STEEL (#6) (3/16)
$0.21¢104
1
