REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

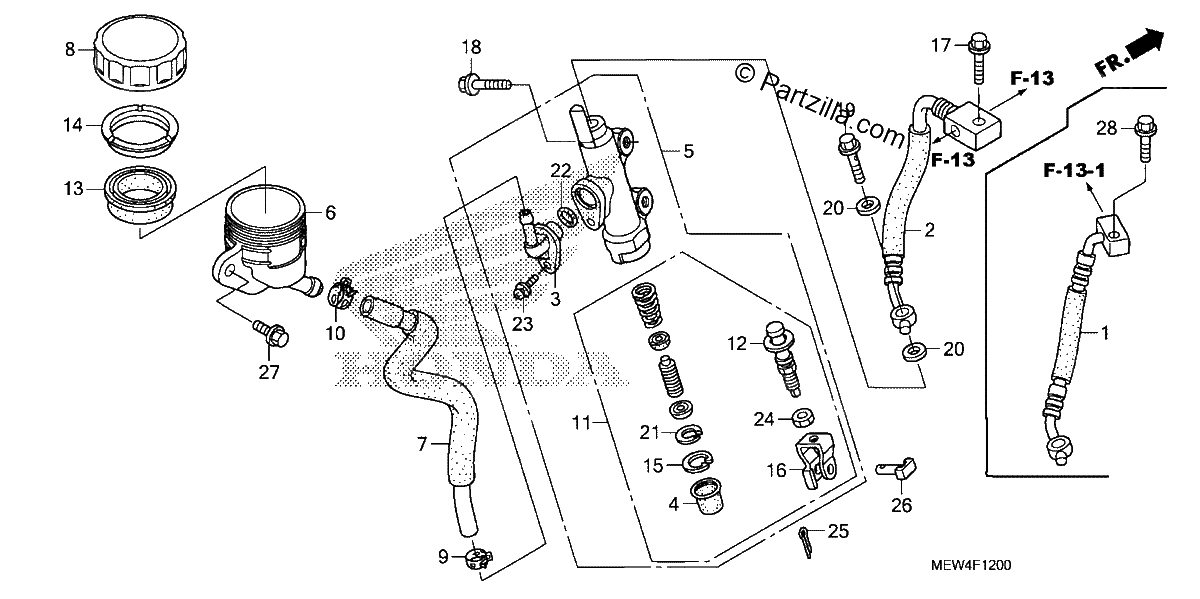

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#001
43310-MEW-851
HOSE A, RR. BRAKE
$46.05¢23 025
1
#003
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
1
#004
43504-MB2-006
BOOT
$11.74¢5 869
1
#005
43510-MEW-923
MASTER CYLINDER SUB-ASSY., RR.
$248.69¢124 344
1
#006
43511-MA6-006
CUP, MASTER CYLINDER OIL
$47.05¢23 525
1
#007
43512-MEW-921
HOSE, RR. BRAKE MASTER CYLINDER
$19.63¢9 813
1
#008
43513-MY1-006
CAP, OIL CUP
$34.38¢17 188
1
#009
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#010
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
1
#011
43520-MBL-D02
PISTON SET, RR. MASTER CYLINDER
$78.15¢39 075
1
#012
43530-MBL-D01
ROD, PUSH
$29.77¢14 888
1
#013
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#014
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#015
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#016
46504-KV6-702
JOINT, BRAKE ROD
$9.50¢4 750
1
#018
90131-124-000
BOLT, FLANGE (6X25)
$0.96¢481
1
#019
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#020
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#021
90651-MBG-006
CIRCLIP, PISTON
$3.66¢1 831
1
#022
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#023
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#023
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#024
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#025
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#026
95015-54000
PIN D, JOINT
$5.15¢2 575
1
#027
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#028
95701-06020-07
BOLT, FLANGE (6X20)
$2.09¢1 044
1
