MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

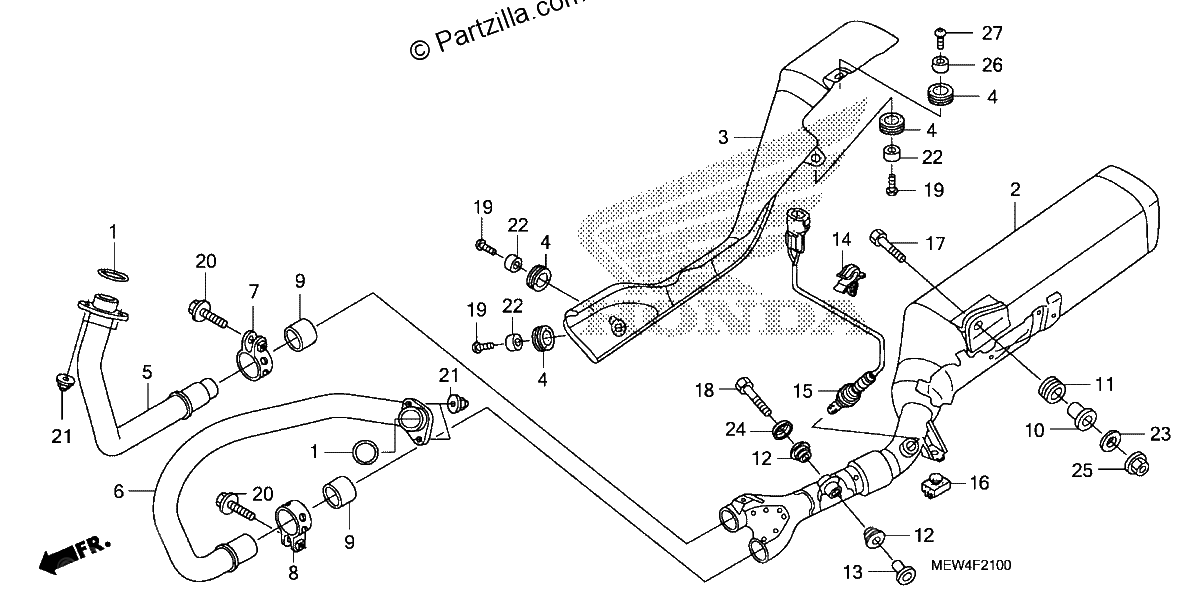

Diagrama de MUFFLER

Repuestos

#001
18291-MN4-920
GASKET, EX. PIPE
$6.44¢3 219
1
#002
18300-MEW-305
MUFFLER (COO)
$1483.14¢741 569
1
#003
18315-MEW-920
COVER, MUFFLER
$337.50¢168 750
1
#004
18316-KFT-620
RUBBER, PROTECTOR
$3.20¢1 600
1
#005
18320-MEW-D40
PIPE, FR. EX.
$165.88¢82 938
1
#006
18370-MEW-920
PIPE, RR. EX.
$134.13¢67 063
1
#007
18373-ML0-000
BAND, R. EX. PIPE
$41.19¢20 594
1
#008
18374-ML0-000
BAND, L. EX. PIPE
$38.89¢19 444
1
#009
18391-MN5-650
GASKET, MUFFLER
$23.94¢11 969
1
#010
18396-MEW-920
COLLAR, MUFFLER SETTING
$4.16¢2 081
1
#011
18397-MEW-920
RUBBER, MUFFLER SETTING
$6.44¢3 219
1
#012
18421-MBL-D00
RUBBER, MUFFLER MOUNTING
$6.11¢3 056
1
#013
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$9.60¢4 800
1
#014
32171-GJ1-003
CLIP, WIRE HARNESS
$4.22¢2 113
1
#015
36531-MEW-D41
SENSOR, OXYGEN
$337.34¢168 669
1
#016
50505-MCS-760
RUBBER, STAND STOPPER
$21.27¢10 638
1
#017
90112-MW3-600
BOLT, SOCKET (8X35)
$4.26¢2 131
1
#018
90116-KY1-000
BOLT, SOCKET (8X45)
$6.79¢3 394
1
#019
90118-MR1-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#020
90161-ML7-000
BOLT, FLANGE (8X35)
$4.44¢2 219
1
#021
90208-438-000
NUT, CAP (8MM)
$3.65¢1 825
1
#022
90325-197-000
COLLAR, RR. SPLASH GUARD
$4.39¢2 194
1
#023
90501-819-000
WASHER (8MM)
$1.84¢919
1
#024
90504-MEW-D41
WASHER, MUFFLER
$7.09¢3 544
1
#025
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#026
33713-GC2-000
COLLAR B, TAILLIGHT
$4.10¢2 050
1
#027
90116-MAS-E00
BOLT, SPECIAL (6X16)
$3.65¢1 825
1
