REAR CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

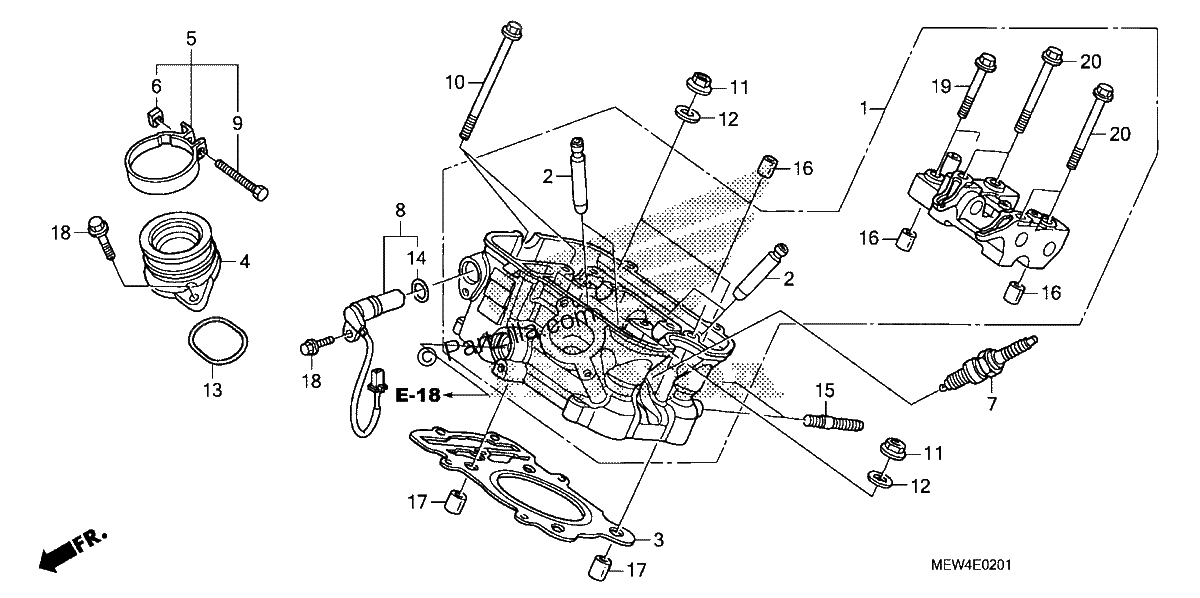

Diagrama de REAR CYLINDER HEAD

Repuestos

#001
12020-MEW-920
CYLINDER HEAD ASSY., RR.
$942.75¢471 375
1
#002
12204-MEW-P00
GUIDE, VALVE (OVER SIZE)
$22.25¢11 125
1
#003
12251-MEW-921
GASKET, CYLINDER HEAD
$191.02¢95 512
1
#004
16210-MEW-920
INSULATOR, THROTTLE BODY
$43.49¢21 744
1
#005
16218-MAT-000
BAND B, INSULATOR
$9.53¢4 763
1
#006
16222-MV4-300
NUT, SQUARE (5MM)
$2.76¢1 381
1
#007
31916-KRM-841
SPARK PLUG (CPR8EA-9) (NGK)
$6.85¢3 425
1
#008
36140-MCH-003
PULSER ASSY., CAM
$214.53¢107 263
1
#009
90005-MM4-000
BOLT, RECESSED (5X32)
$1.38¢688
1
#010
90006-MM5-640
BOLT, FLANGE (8X135)
$8.66¢4 331
1
#011
94030-10000-07
NUT, HEX. (10MM)
$1.90¢950
1
#011
90204-634-000
NUT, FLANGE (10MM)
$1.90¢950
1
#011
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#012
90410-HC4-000
WASHER (10MM)
$4.63¢2 313
1
#013
91303-397-000
O-RING (45X2.5)
$6.08¢3 038
1
#014
91309-PX4-003
O-RING (16X2.1) (NOK)
$3.65¢1 825
1
#015
92900-08022-0E
BOLT, STUD (8X22)
$1.86¢931
1
#016
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#017
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#018
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#019
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
#020
95701-08070-00
BOLT, FLANGE (8X70)
$3.44¢1 719
1
