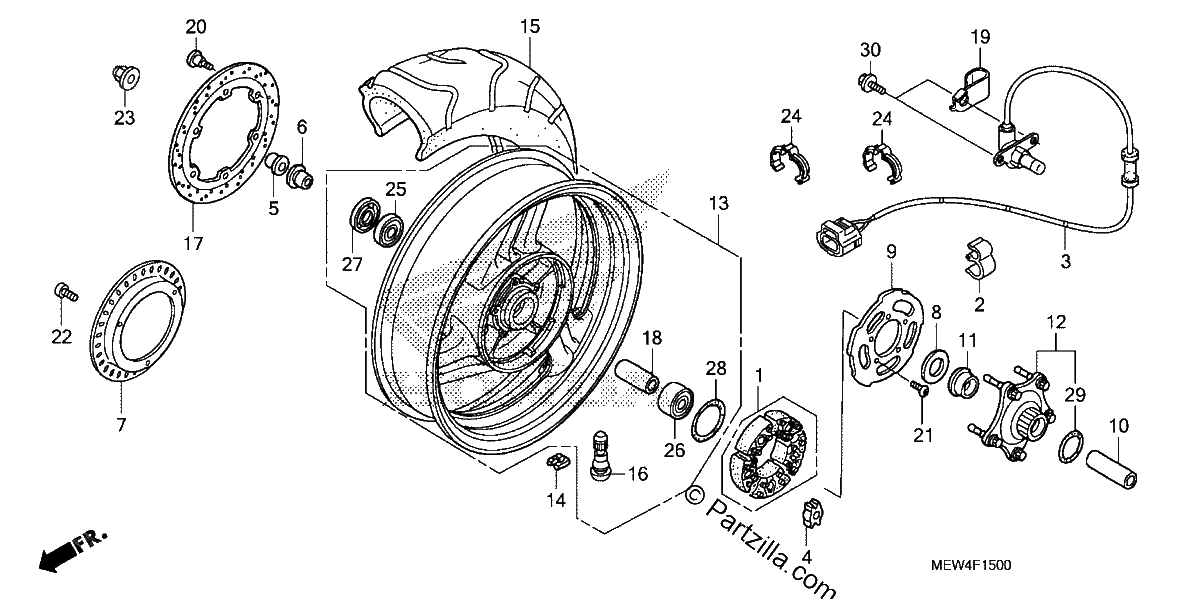

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$54.10¢27 048
#001
DAMPER SET, WHEEL
$54.10¢27 048
#002
CLAMP, PIPE
$7.95¢3 973
#003
SENSOR, RR. WHEEL SPEED
$206.51¢103 253
#004
PIECE, DAMPER WHEEL
$18.69¢9 344
#005
COLLAR, RR. WHEEL SIDE
$10.59¢5 296
#006
COLLAR, RR. WHEEL SIDE
$11.03¢5 514
#007
RING, PULSER
$41.17¢20 585
#008
WASHER, THRUST
$8.90¢4 451
#009
HOLDER, DAMPER
$50.90¢25 449
#010
COLLAR B, RR. DISTANCE
$11.24¢5 618
#011
COLLAR A, RR. DISTANCE
$22.59¢11 293
#012
FLANGE SET, FINAL DRIVEN
$227.57¢113 787
#013
WHEEL SUB-ASSY., RR. (COO)
$454.12¢227 062
#014
WEIGHT, BALANCE (10G)
$10.04¢5 020
#014
WEIGHT, BALANCE (20G)
$20.62¢10 310
#014
WEIGHT, BALANCE (30G)
$20.32¢10 160
#015
TIRE, RR. (150/70ZR17 M/C 69W) (BS)
No Disponible
#016
VALVE, RIM (WONDER)
$13.60¢6 802
#016
VALVE, RIM (BS)
$13.60¢6 802
#017
DISK, RR. BRAKE
$148.52¢74 261
#018
COLLAR, FR. AXLE DISTANCE
$19.84¢9 919
#019
CLAMP
$3.86¢1 932
#020
BOLT, BRAKE DISK (8X24)
$6.92¢3 461
#020
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
#021
BOLT, DISK (6X17)
$4.06¢2 030
#022
BOLT, TORX (5X10)
$3.15¢1 576
#023
NUT, FLANGE (18MM)
$14.04¢7 021
#024
CLIP, CABLE (14MM)
$2.09¢1 047
#025
BEARING, RADIAL BALL (6204UU)
$29.60¢14 800
#026
BEARING, RADIAL BALL (20X47X20.6) (NTN)
$80.05¢40 026
#027
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
#027
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
#028
O-RING (61X2)
$5.76¢2 881
#029
O-RING (46.5X3.5)
$4.20¢2 099
#030
BOLT, FLANGE (6X10)
$1.92¢960
