SIDE GEAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

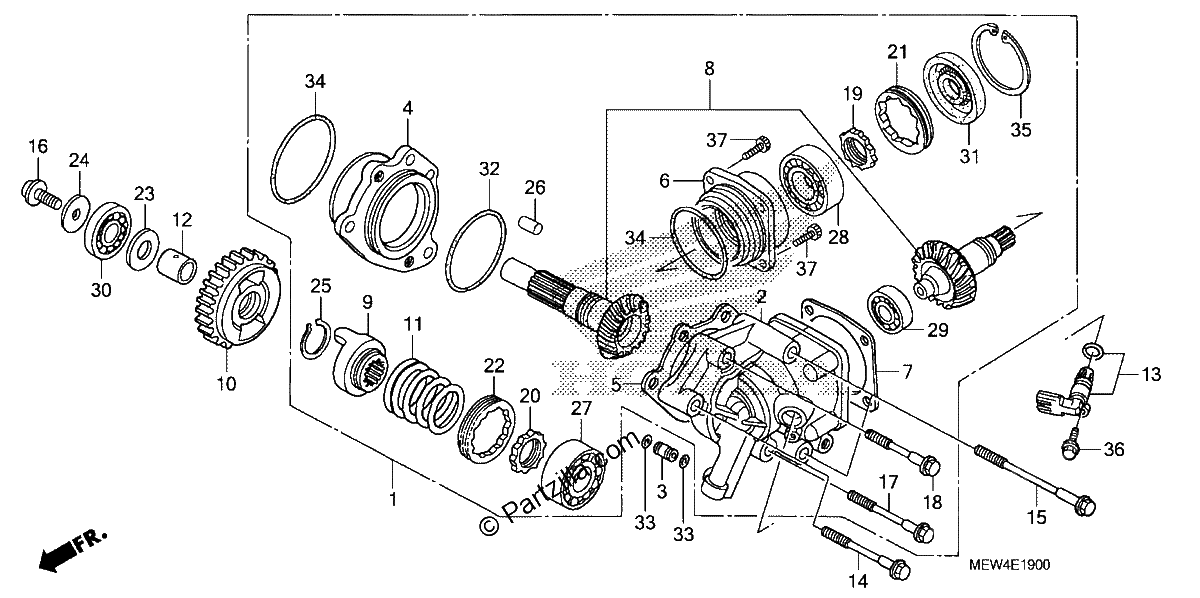

Diagrama de SIDE GEAR CASE

Repuestos

#001
21100-MEW-920
CASE ASSY., SIDE GEAR
$1491.52¢745 758
1
#002
21200-MEW-920
CASE, SIDE GEAR
$672.69¢336 346
1
#003
21215-MEW-920
ORIFICE, SIDE GEAR CASE
$5.63¢2 818
1
#004
21281-MEW-920
HOLDER, FINAL DRIVESHAFT BEARING
$76.97¢38 485
1
#005
21309-MEG-000
SHIM, FINAL DRIVESHAFT (0.30)
$15.13¢7 567
1
#005
21310-MEG-000
SHIM, FINAL DRIVESHAFT (0.35)
$15.13¢7 567
1
#005
21311-MEG-000
SHIM, FINAL DRIVESHAFT (0.40)
$15.13¢7 567
1
#005
21312-MEG-000
SHIM, FINAL DRIVESHAFT (0.45)
$15.13¢7 567
1
#005
21313-MEG-000
SHIM, FINAL DRIVESHAFT (0.50)
$15.13¢7 567
1
#005
21314-MEG-000
SHIM, FINAL DRIVESHAFT (0.55)
$15.13¢7 567
1
#005
21315-MEG-000
SHIM, FINAL DRIVESHAFT (0.60)
$15.13¢7 567
1
#005
21316-MEG-000
SHIM, FINAL DRIVESHAFT (0.65)
$15.13¢7 567
1
#005
21317-MEG-000
SHIM, FINAL DRIVESHAFT (0.70)
$15.13¢7 567
1
#005
21318-MEG-000
SHIM, FINAL DRIVESHAFT (0.75)
$15.13¢7 567
1
#006
21371-MS9-000
HOLDER, CROSS SHAFT BEARING
$75.81¢37 904
1
#007
21377-MB0-770
SHIM, CROSS SHAFT (0.20)
$27.39¢13 696
1
#007
21378-MB0-770
SHIM, CROSS SHAFT (0.25)
$26.21¢13 104
1
#007
21379-MB0-770
SHIM, CROSS SHAFT (0.30)
$26.21¢13 104
1
#007
21380-MB0-770
SHIM, CROSS SHAFT (0.35)
$26.21¢13 104
1
#007
21381-MB0-770
SHIM, CROSS SHAFT (0.40)
$29.90¢14 950
1
#007
21382-MB0-770
SHIM, CROSS SHAFT (0.45)
$29.90¢14 950
1
#007
21383-MB0-770
SHIM, CROSS SHAFT (0.50)
$29.90¢14 950
1
#007
21384-MB0-770
SHIM, CROSS SHAFT (0.55)
$29.90¢14 950
1
#007
21385-MB0-770
SHIM, CROSS SHAFT (0.60)
$29.90¢14 950
1
#008
23200-MEW-920
SHAFT SET, FINAL DRIVE
$319.78¢159 890
1
#009
23721-ME9-000
LIFTER, DAMPER
$90.41¢45 207
1
#010
23726-MEW-920
GEAR, DAMPER SHAFT (31T)
$134.06¢67 028
1
#011
23732-MEW-920
SPRING, DAMPER
$31.71¢15 853
1
#012
23733-MS9-000
COLLAR (20X24X19.8)
$11.47¢5 733
1
#013
37700-MEW-921
SENSOR ASSY., SPEED
$85.70¢42 849
1
#014
90029-MBL-610
BOLT, UBS (8X65)
$3.30¢1 650
1
#015
90030-MBL-610
BOLT, UBS (8X110)
$4.51¢2 254
1
#016
90037-ME9-000
BOLT, SPECIAL (10MM)
$8.58¢4 289
1
#017
90063-MB0-003
BOLT, UBS (8X60)
$7.11¢3 553
1
#018
90065-HA8-680
BOLT, UBS (8X45)
$8.41¢4 203
1
#019
90241-MB0-000
NUT, LOCK (30MM)
$22.53¢11 264
1
#020
90241-MEW-920
NUT, LOCK (30MM)
$14.14¢7 073
1
#021
90242-MB0-000
NUT, LOCK (64MM)
$34.73¢17 365
1
#022
90244-MCH-000
NUT, LOCK (64MM)
No Disponible
1
#023
90401-MEW-920
WASHER, THRUST SPECIAL (20X35X1.5)
$3.51¢1 754
1
#024
90409-952-000
WASHER (10MM)
$2.69¢1 346
1
#025
90602-463-000
CIRCLIP (OUTER) (28MM)
$4.31¢2 156
1
#026
90701-MG8-000
PIN, DOWEL (10X24)
$5.58¢2 789
1
#027
91007-MCH-003
BEARING, SPECIAL BALL (5206) (NTN)
$40.93¢20 464
1
#028
91008-300-008
BEARING, BALL (5206) (TOYO)
$112.79¢56 396
1
#028
91012-MG7-003
BEARING, RADIAL BALL (5206)
$112.79¢56 396
1
#029
91011-MB0-003
BEARING, BALL (6303) (KOYO)
$36.29¢18 147
1
#029
91011-MB0-004
BEARING, BALL (6303) (TOYO)
$36.29¢18 147
1
#030
91102-GE1-711
BEARING, RADIAL BALL (6204) (TOYO)
$23.55¢11 776
1
#031
91205-MG7-003
OIL SEAL (25X66X8.5) (ARAI)
$20.06¢10 028
1
#032
91301-MS9-003
O-RING (64X2.5)
$2.94¢1 472
1
#033
91307-422-000
O-RING (4.8X1.9)
$3.09¢1 547
1
#033
91313-MA6-005
O-RING (4.8X1.9) (NOK)
$3.09¢1 547
1
#034
91314-MG7-003
O-RING (69.5X3) (ARAI)
$9.95¢4 974
1
#035
94520-65120
CIRCLIP (INNER) (65MM)
$3.62¢1 811
1
#036
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#037
96700-08022-17
BOLT, SOCKET (8X22)
$2.39¢1 196
1
