SWINGARM

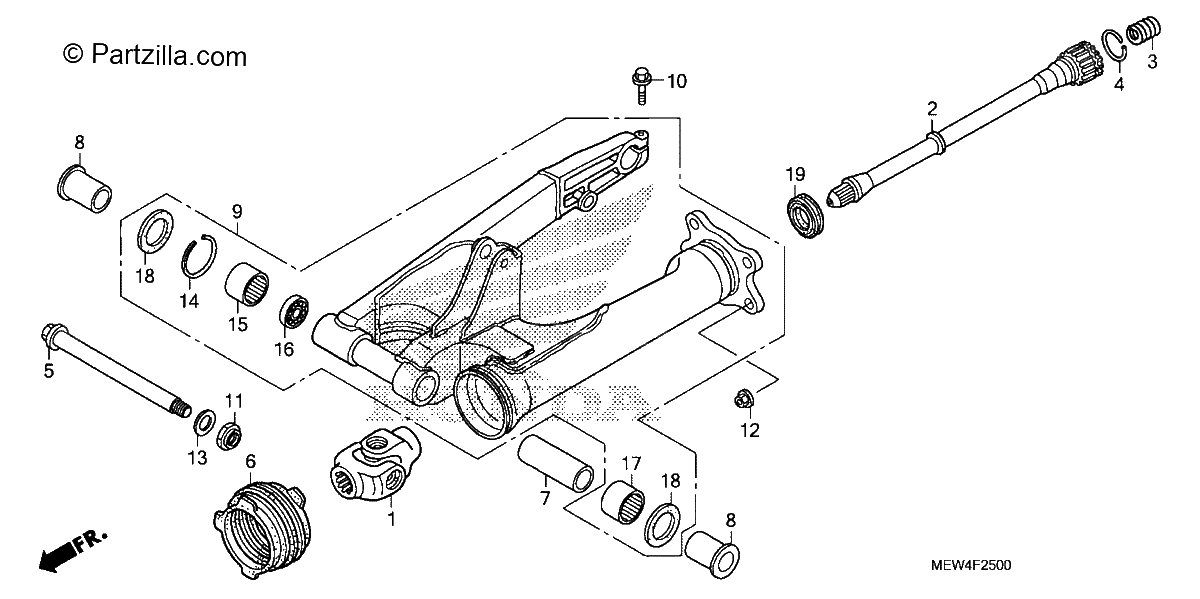

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

40200-MR6-671

JOINT, YOKE

$428.01¢214 006

#002

40201-MBL-610

SHAFT, PROPELLER

$126.82¢63 412

#003

40215-ME9-003

SPRING, PROPELLER SHAFT

$7.16¢3 581

#004

40221-MB0-000

RING, STOPPER

$5.47¢2 738

#005

52101-MEW-920

BOLT, SWINGARM PIVOT

$36.85¢18 425

#006

52104-MEW-920

BOOT, JOINT

$13.69¢6 844

#007

52141-MEW-920

COLLAR, CENTER PIVOT DISTANCE

$32.92¢16 463

#008

52142-MEW-920

COLLAR, PIVOT DISTANCE

$23.66¢11 831

#009

52200-MEW-920

SWINGARM SUB-ASSY., RR.

$1054.90¢527 450

#010

90105-GM9-740

BOLT, FLANGE (8X32)

$5.78¢2 888

#011

90306-MCS-G00

NUT, U (18MM)

$8.64¢4 319

#012

90308-357-000

NUT, HEX. (10MM)

$5.90¢2 950

#013

90432-MCS-G00

WASHER, SPECIAL (18MM)

$3.69¢1 844

#014

90651-MEW-920

CIRCLIP (INNER) (37)

$4.04¢2 019

#015

91071-MBW-E11

BEARING, NEEDLE

$19.98¢9 988

#016

91071-MEW-921

BEARING, RADIAL BALL (20X37X9)

$11.99¢5 994

#017

91071-MR7-003

BEARING, NEEDLE

$29.82¢14 913

#018

91202-MR7-003

DUST SEAL (28X37X4)

$7.70¢3 850

#019

91261-ME9-005

OIL SEAL (27X43X7)

$14.09¢7 044
