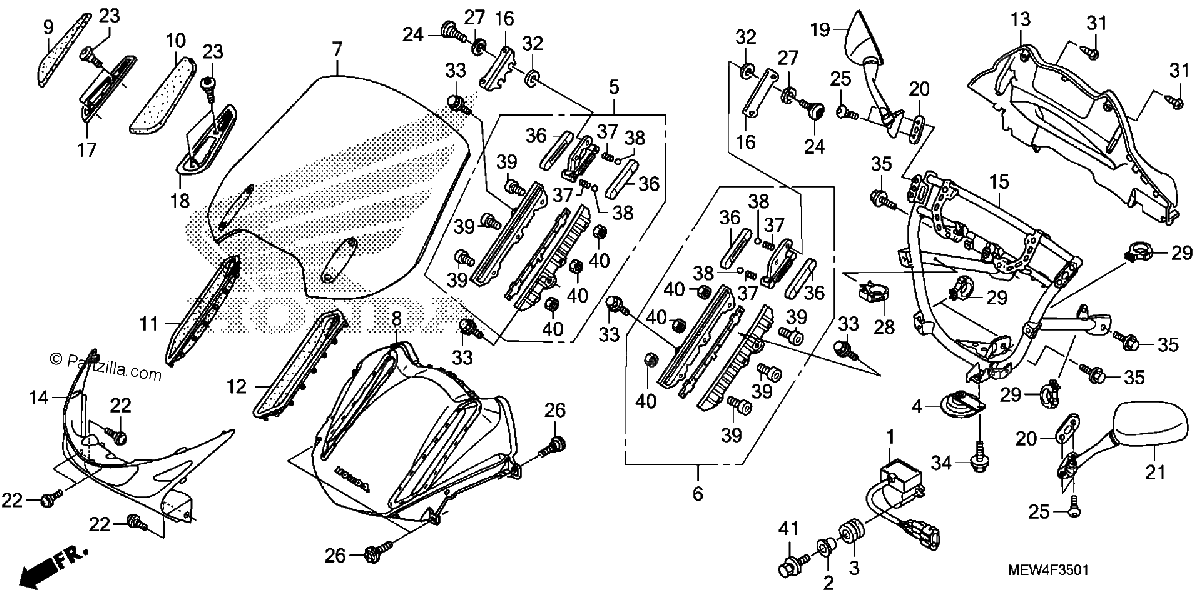

UPPER COWL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SENSOR, BANK ANGLE
$118.73¢59 363
#1
SENSOR, BANK ANGLE
$118.73¢59 363
#2
COLLAR
$8.10¢4 048
#3
GROMMET
$3.51¢1 754
#4
HORN (HIGH)
No Disponible
#4
HORN (HIGH)
No Disponible
#5
RAIL ASSY., R. SCREEN ADJUST
$222.36¢111 182
#6
RAIL ASSY., L. SCREEN ADJUST
$222.36¢111 182
#7
WINDSCREEN (COO)
$243.21¢121 607
#8
COWL SET, SCREEN (INNER) (WL)
$46.80¢23 403
#9
COVER, R. WINDSCREEN
$6.84¢3 421
#10
COVER, L. WINDSCREEN
$6.84¢3 421
#11
COVER, R. RAIL
No Disponible
#12
COVER, L. RAIL
No Disponible
#13
VISOR, METER
$64.16¢32 079
#14
COWL, HEADLIGHT (LOWER)
$38.77¢19 383
#15
STAY, COWL (UPPER)
$215.14¢107 571
#16
STAY, SCREEN
$13.35¢6 676
#17
SPACER, R. SCREEN
$3.37¢1 685
#18
SPACER, L. SCREEN
$3.37¢1 685
#19
MIRROR ASSY., R. BACK (COO)
$53.61¢26 806
#20
RUBBER, MIRROR MOUNTING
$8.44¢4 220
#21
MIRROR ASSY., L. BACK (COO)
$53.61¢26 806
#22
SCREW, SPECIAL (5X12)
$3.36¢1 679
#23
SCREW, PAN (6X16)
$1.64¢822
#24
BOLT, SCREEN STAY
$3.43¢1 713
#25
BOLT, TORX (6X13)
$3.63¢1 817
#26
SCREW, PAN (5X13)
$1.28¢638
#27
WASHER, BUMPER BOLT
$4.04¢2 018
#28
CLIP, CABLE (10MM)
$2.59¢1 294
#29
CLIP, CABLE (15MM)
$2.59¢1 294
#31
SCREW, TAPPING (4X12)
$1.07¢535
#32
WASHER, PLAIN (6MM)
$0.85¢426
#33
BOLT, FLANGE (6X12)
$1.92¢960
#34
BOLT, FLANGE (8X12)
$1.98¢989
#35
(SOURCE: VINTAGE PARTS INC.)
$4.24¢2 122
#36
GUIDE, SCREEN SLIDER
$4.77¢2 386
#37
SPRING, CLICK
$2.15¢1 075
#38
BALL, STEEL (#8) (1/4)
$1.47¢736
#39
BOLT, SOCKET (6X16)
$2.06¢1 029
#40
NUT, HEX. (6MM)
$1.47¢736
#41
BOLT-WASHER (4X20)
$0.79¢397
