PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

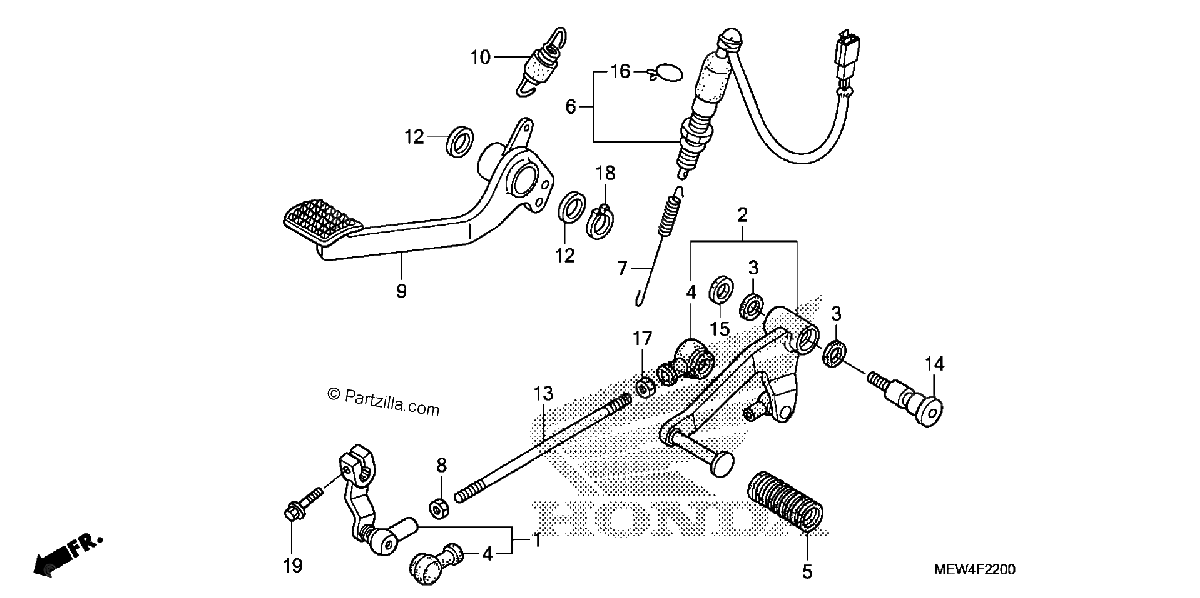

Diagrama de PEDAL

Repuestos

#1
24702-MEW-920
ARM, GEARSHIFT
$113.73¢56 863
1
#2
24705-MBL-305
PEDAL, GEARSHIFT (COO)
$85.29¢42 644
1
#3
24706-MK3-770
RUBBER, DUST SEAL
$5.42¢2 713
1
#4
24724-422-000
COVER, DUST
$8.09¢4 044
1
#5
24781-449-000
RUBBER, GEARSHIFT
$4.20¢2 100
1
#6
35350-MEW-D40
SWITCH ASSY., RR. STOP
$28.94¢14 469
1
#6
35350-MEW-D41
SWITCH ASSY., RR. STOP
$28.94¢14 469
1
#7
35357-KN6-960
SPRING, STOP SWITCH
$2.07¢1 037
1
#8
45423-KA4-700
NUT, HEX. (6MM) (LEFT HAND THREAD)
$1.99¢994
1
#9
46500-MEW-305
PEDAL, RR. BRAKE (COO)
$77.85¢38 925
1
#10
46511-KZ4-J00
SPRING ASSY., RR. BRAKE RETURN
$9.06¢4 531
1
#12
50715-KE8-000
PLATE, PILLION STEP SIDE
$5.09¢2 544
1
#13
90065-MEW-920
BOLT, TIE ROD
$4.35¢2 175
1
#14
90115-KAF-000
BOLT, CHANGE PIVOT
$22.93¢11 463
1
#15
90526-GB0-930
WASHER (8.5X20)
$2.48¢1 238
1
#16
90601-KAF-003
CLIP, SWITCH COVER
$3.44¢1 719
1
#17
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#17
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#18
94511-19000
CIRCLIP (OUTER) (19MM)
$1.21¢606
1
#19
96300-06022-00
BOLT, FLANGE (6X22)
$1.80¢900
1
