HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

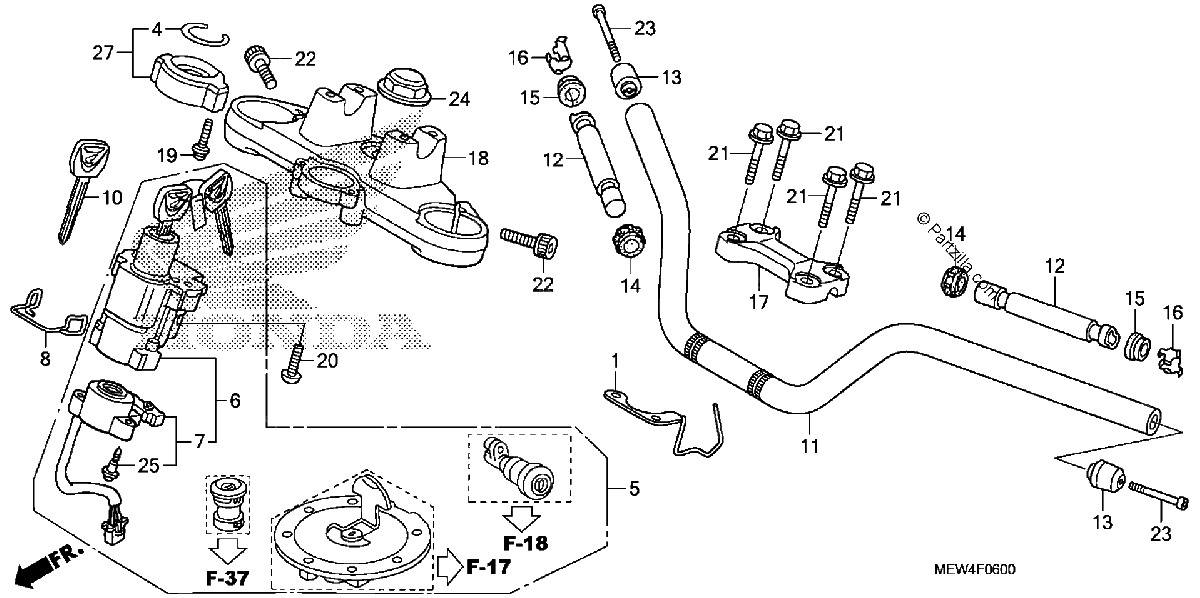

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
17970-MEW-920
GUIDE, THROTTLE CABLE
$17.09¢8 544
1
#4
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#5
35010-MEW-L00
LOCK SET
No Disponible
1
#6
35100-MEW-L01
SWITCH ASSY., COMBINATION LOCK
$225.78¢112 888
1
#7
35101-MEW-921
BASE, CONTACT
$96.68¢48 338
1
#8
35105-MEJ-J00
GUIDE, WIRE
$11.44¢5 719
1
#10
35121-MAS-G01
KEY, BLANK
$14.79¢7 394
1
#11
53100-MEW-305
HANDLEBAR (COO)
$276.64¢138 319
1
#12
53104-MS2-000
WEIGHT B, HANDLEBAR
$28.20¢14 100
1
#13
53105-MCS-G00
WEIGHT, HANDLEBAR
$24.60¢12 300
1
#14
53106-MJ0-000
RUBBER A, HANDLE WEIGHT
$4.76¢2 381
1
#15
53107-MEW-920
RUBBER B, HANDLE WEIGHT
$6.47¢3 238
1
#16
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$7.55¢3 775
1
#17
53131-MEW-920
HOLDER, HANDLE (UPPER)
$46.22¢23 112
1
#18
53230-MEW-920
BRIDGE, FORK TOP
No Disponible
1
#19
90020-MBW-610
SCREW-WASHER (5X22)
$3.30¢1 650
1
#20
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#21
90111-KFK-000
BOLT, FLANGE (8X36)
$5.55¢2 775
1
#22
90160-MN0-000
BOLT, SOCKET (8X32)
$5.00¢2 500
1
#23
90191-MEW-920
BOLT, SOCKET (6X75)
$5.70¢2 850
1
#24
90304-MK4-000
NUT, STEERING STEM
$25.19¢12 594
1
#25
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#27
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
