FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

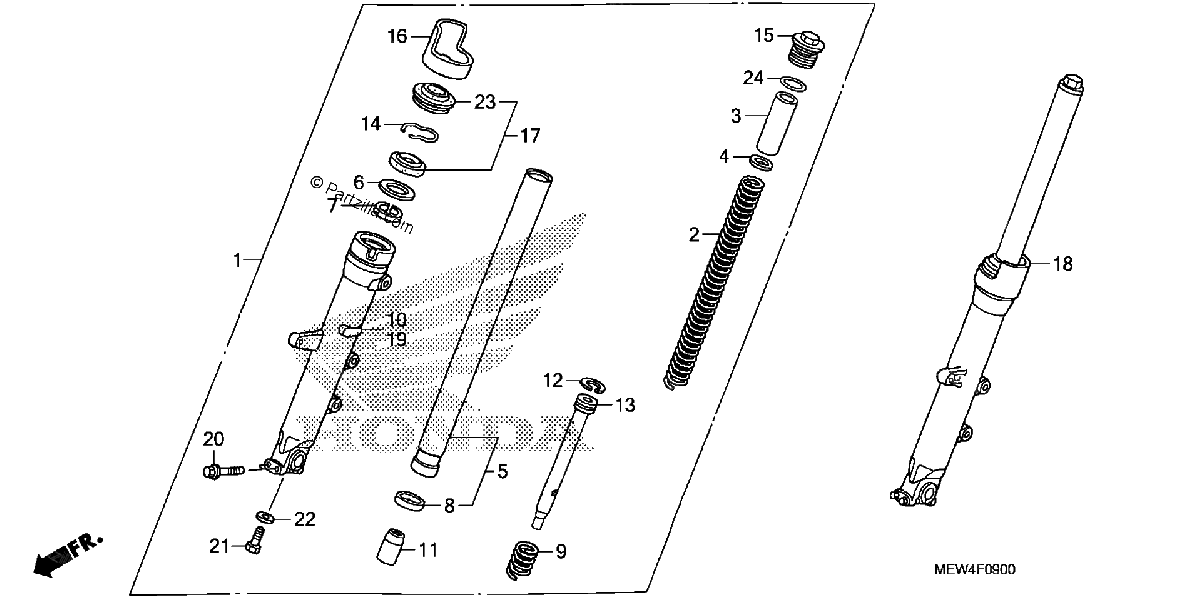

Diagrama de FRONT FORK

Repuestos

#1
51400-MEW-305
FORK ASSY., R. FR. (COO)
$709.26¢354 631
1
#2
51401-MEW-921
SPRING, FR. FORK
$101.17¢50 583
1
#3
51402-MV8-901
COLLAR, SPRING
$20.96¢10 482
1
#4
51403-KF0-003
SEAT, SPRING (SHOWA)
$5.35¢2 674
1
#4
51403-MBL-611
SEAT, SPRING
$5.35¢2 674
1
#5
51410-MEW-D41
PIPE, FR. FORK
$293.66¢146 832
1
#6
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#6
51412-MBL-611
RING, BACK-UP
$6.99¢3 496
1
#7
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#8
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#9
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$8.61¢4 307
1
#9
51416-MBL-611
SPRING, FR. REBOUND
$7.58¢3 789
1
#10
51420-MEW-921
CASE, R. (LOWER)
$300.26¢150 133
1
#11
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#11
51432-MBL-D01
PIECE, OIL LOCK
$22.51¢11 253
1
#12
51437-MEW-921
RING, PISTON
$7.29¢3 645
1
#13
51440-MEW-921
PIPE, SEAT
$44.62¢22 310
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#14
51447-MBL-611
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#15
51454-MER-D01
BOLT, FR. FORK
$35.86¢17 929
1
#16
51460-MT3-611
PROTECTOR, FORK PIPE
$12.59¢6 296
1
#17
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#18
51500-MEW-305
FORK ASSY., L. FR. (COO)
$709.26¢354 631
1
#19
51520-MEW-921
CASE, L. (LOWER)
$300.26¢150 133
1
#20
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#21
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#22
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#23
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#24
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
