SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

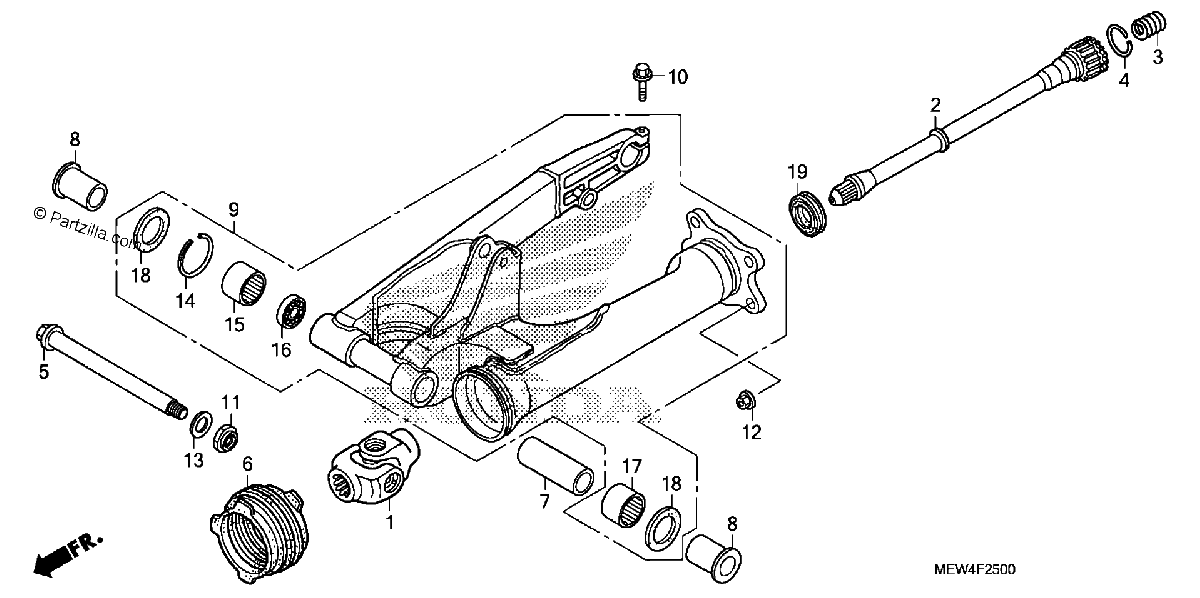

Diagrama de SWINGARM

Repuestos

#1
40200-MR6-671
JOINT, YOKE
$428.01¢214 006
1
#2
40201-MBL-610
SHAFT, PROPELLER
$126.82¢63 412
1
#3
40215-ME9-003
SPRING, PROPELLER SHAFT
$7.16¢3 581
1
#4
40221-MB0-000
RING, STOPPER
$5.47¢2 738
1
#5
52101-MEW-920
BOLT, SWINGARM PIVOT
$36.85¢18 425
1
#6
52104-MEW-920
BOOT, JOINT
$13.69¢6 844
1
#7
52141-MEW-920
COLLAR, CENTER PIVOT DISTANCE
$32.92¢16 463
1
#8
52142-MEW-920
COLLAR, PIVOT DISTANCE
$23.66¢11 831
1
#9
52200-MEW-920
SWINGARM SUB-ASSY., RR.
$1054.90¢527 450
1
#10
90105-GM9-740
BOLT, FLANGE (8X32)
$5.78¢2 888
1
#11
90306-MCS-G00
NUT, U (18MM)
$8.64¢4 319
1
#12
90308-357-000
NUT, HEX. (10MM)
$5.90¢2 950
1
#13
90432-MCS-G00
WASHER, SPECIAL (18MM)
$3.69¢1 844
1
#14
90651-MEW-920
CIRCLIP (INNER) (37)
$4.04¢2 019
1
#15
91071-MBW-E11
BEARING, NEEDLE
$19.98¢9 988
1
#16
91071-MEW-921
BEARING, RADIAL BALL (20X37X9)
$11.99¢5 994
1
#17
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#18
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#19
91261-ME9-005
OIL SEAL (27X43X7)
$14.09¢7 044
1
