CRANKCASE 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

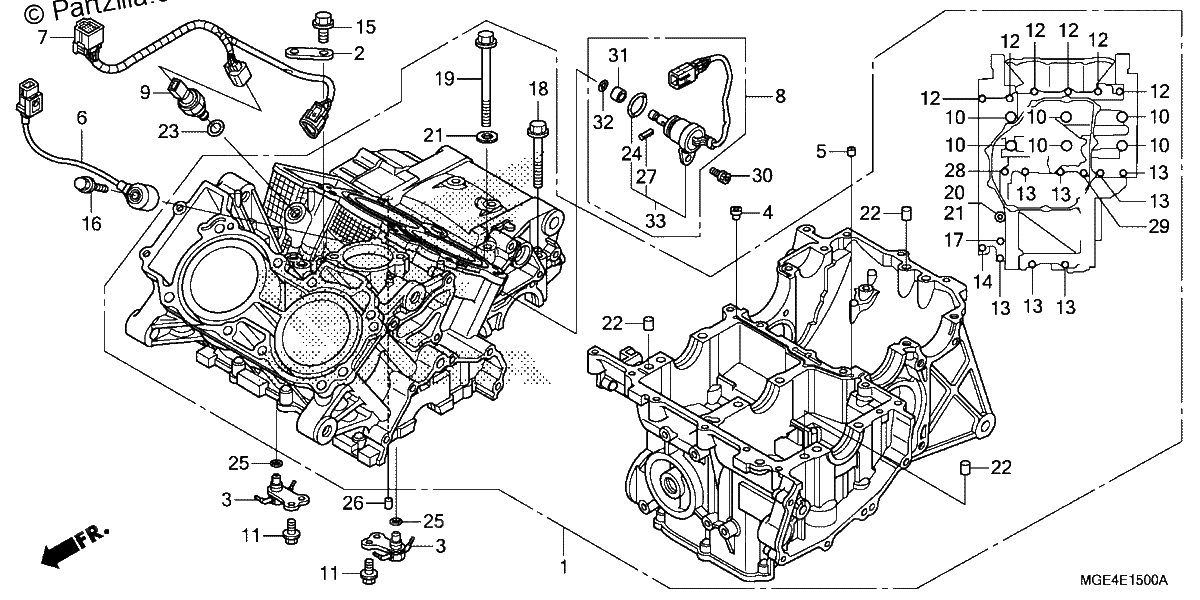

Diagrama de CRANKCASE 1

Repuestos

#001
11000-MGE-030
CRANKCASE SET (NOT AVAILABLE)
No Disponible
1
#002
11180-MGE-000
BRIDGE, KNOCK SENSOR
$5.22¢2 613
1
#003
15310-MGE-000
JET, OIL
$48.61¢24 306
1
#004
15515-MGE-000
ORIFICE A
$7.11¢3 556
1
#005
15517-MGE-000
ORIFICE C
$6.80¢3 400
1
#006
30530-MGE-641
SENSOR, KNOCK
$78.26¢39 131
1
#007
32111-MGE-640
SUB-HARNESS, ENGINE
$62.99¢31 494
1
#008
35759-MGE-003
SW Assembly,CHANGE
$137.50¢68 750
1
#008
35759-MGE-040
SWITCH Assembly., CHANGE
$137.50¢68 750
1
#009
37260-MGE-641
SENSOR, OIL PRESSURE
$220.39¢110 194
1
#010
90001-MGE-003
BOLT, FLANGE (9X109)
$9.45¢4 725
1
#011
90011-MFJ-D00
BOLT, KNOCK (6MM)
$3.65¢1 825
1
#012
90018-MGE-000
BOLT, FLANGE (7X40)
$3.44¢1 719
1
#013
90033-MGE-000
BOLT, FLANGE (6X28)
$2.81¢1 406
1
#014
90034-MGE-000
BOLT, FLANGE (6X35)
$2.81¢1 406
1
#015
90061-MGE-000
BOLT, FLANGE (8X14)
$3.01¢1 506
1
#016
90062-MGE-000
BOLT, FLANGE (8X30)
$3.44¢1 719
1
#017
90063-MGE-000
BOLT, FLANGE (8X40)
$3.44¢1 719
1
#018
90064-MGE-000
BOLT, FLANGE (8X70)
$4.30¢2 150
1
#019
90065-MGE-010
BOLT, FLANGE (8X120)
$6.64¢3 319
1
#020
90066-MGE-010
BOLT, FLANGE (8X125)
$6.64¢3 319
1
#021
90442-MR1-770
WASHER, SEALING (8MM)
$2.92¢1 463
1
#022
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#023
91301-MEH-003
O-RING (13X1.5)
$2.09¢1 044
1
#024
91305-KC1-850
O-RING (16.5X2.5)
$2.52¢1 263
1
#025
91305-MG7-003
O-RING (5X1.7) (ARAI)
$3.65¢1 825
1
#026
94302-08100
PIN B, DOWEL (8X10)
$2.89¢1 444
1
#027
94305-20082
PIN, SPRING (2X8)
$1.33¢663
1
#028
95701-08065-00
BOLT, FLANGE (8X65)
$2.21¢1 106
1
#029
95701-08110-00
BOLT, FLANGE (8X110)
$3.54¢1 769
1
#030
96600-06014-00
BOLT, SOCKET (6X14)
$5.09¢2 544
1
#031
35761-MGE-000
COLLAR, CHANGE SWITCH
$2.54¢1 269
1
#032
91305-MGE-000
O-RING (2.8X1.3)
$6.64¢3 319
1
