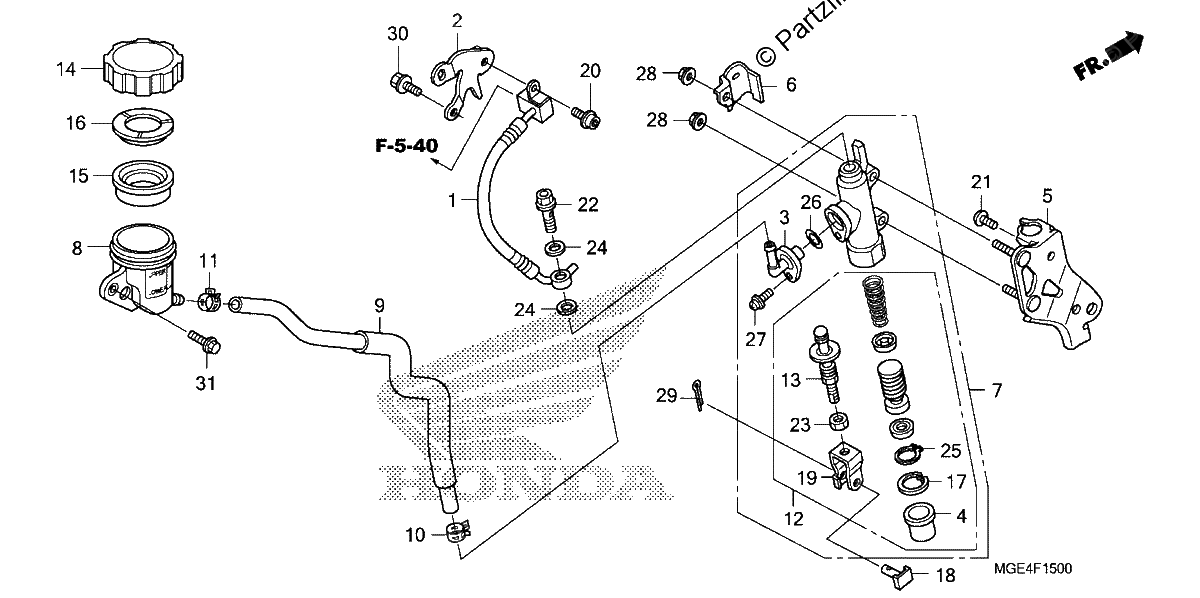

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
HOSE A, Rear BRAKE
$61.92¢30 963
#002
STAY, RR. BRAKE HOSE
$13.30¢6 650
#003
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
#004
BOOT
$11.74¢5 869
#005
STAY, Rear MASTER CYLINDER
$19.33¢9 663
#006
COVER, STOP SWITCH
$11.00¢5 500
#007
MASTER CYLINDER SUB-Assembly., Rear.
$276.70¢138 350
#007
MASTER CYLINDER SUB-Assembly., Rear.(COO)
$276.70¢138 350
#008
CUP, MASTER CYLINDER OIL
$29.00¢14 500
#009
HOSE, Rear BRAKE MASTER CYLINDER
$48.08¢24 038
#010
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#011
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
#012
PISTON SET, Rear MASTER CYLINDER
$146.44¢73 219
#013
ROD, PUSH
$35.90¢17 950
#014
CAP, OIL CUP
$21.39¢10 694
#015
DIAPHRAGM
$10.59¢5 294
#016
PLATE, DIAPHRAGM
$4.91¢2 456
#017
CIRCLIP
$2.50¢1 250
#018
PIN, BRAKE ROD
$7.72¢3 863
#019
JOINT, BRAKE ROD
$17.25¢8 625
#020
BOLT, FLANGE SOCKET (6X12)
$4.74¢2 369
#021
BOLT, SPECIAL (6X14)
$2.99¢1 494
#022
BOLT, OIL (10X22)
$8.89¢4 444
#023
NUT, HEX. (8MM)
$1.96¢981
#024
WASHER, OIL BOLT
$4.85¢2 425
#025
CIRCLIP, PISTON
$3.66¢1 831
#026
O-RING (14.8X2.4)
$3.30¢1 650
#027
SCREW-WASHER (4X12)
$1.72¢862
#027
SCREW-WASHER (4X12)
$1.72¢862
#028
NUT, FLANGE (6MM)
$1.86¢931
#029
PIN, SPLIT (2.0X12)
$1.27¢638
#030
BOLT, FLANGE (6X12)
$2.09¢1 044
#031
BOLT, FLANGE (6X16)
$1.35¢675
