ABS MODULATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

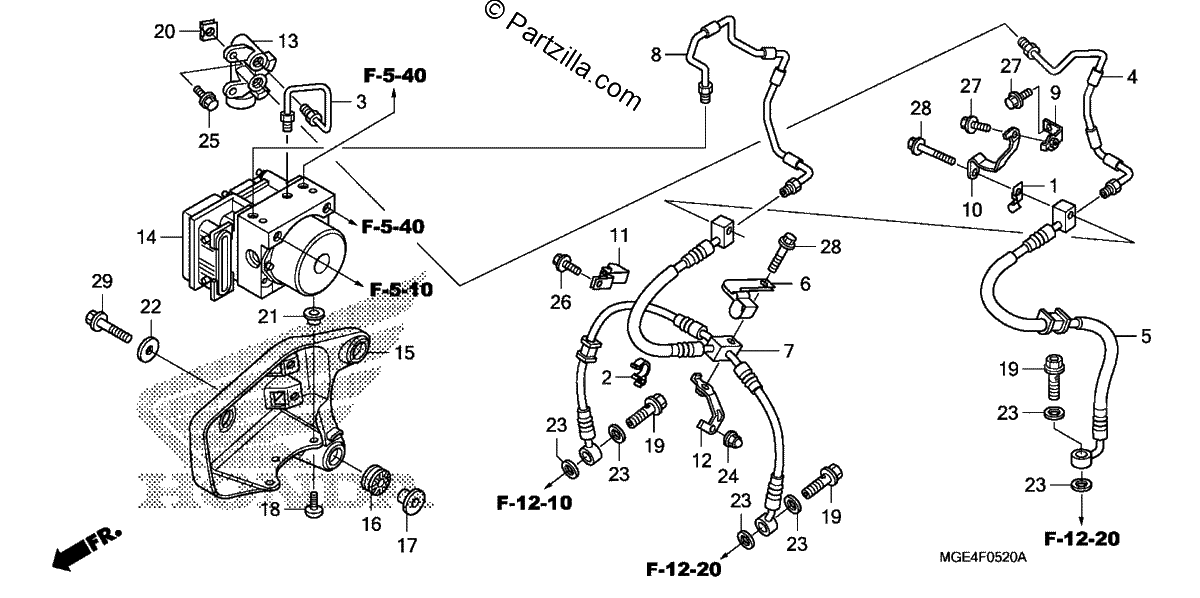

Diagrama de ABS MODULATOR

Repuestos

#001
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.68¢1 340
1
#002
38517-MGE-003
CLAMP, ABS WIRE (D12)
$3.22¢1 610
1
#003
43320-MGE-000
SUB-PIPE A, BRAKE
$11.85¢5 923
1
#004
43321-MGE-000
SUB-PIPE B, BRAKE
$18.76¢9 378
1
#005
43322-MGE-003
SUB-HOSE A, BRAKE
$69.94¢34 972
1
#006
43323-MGE-000
CLAMP, Front BRAKE HOSE
$3.89¢1 943
1
#007
45124-MGE-003
HOSE B, Front BRAKE
$139.91¢69 955
1
#008
45126-MGE-000
PIPE B, Front BRAKE
$20.85¢10 425
1
#009
45161-MGE-000
STAY, FR. HOSE
$7.93¢3 968
1
#010
45162-MGE-000
STAY, FR. BRAKE
$7.13¢3 565
1
#011
45164-MGE-000
CLAMP, R. FR. BRAKE HOSE
$6.96¢3 479
1
#012
45165-MGE-000
STAY, L Front BRAKE
$5.96¢2 978
1
#013
46300-MGE-006
VALVE ASSY., DELAY
$213.01¢106 507
1
#014
57110-MGE-003
MODULATOR Assembly. (MSDS)
$2013.05¢1 006 526
1
#015
57150-MGE-000
GUARD, ABS
$47.18¢23 592
1
#016
57156-MGE-000
CUSHION, RUBBER
$4.75¢2 375
1
#017
77216-KG1-920
COLLAR, SEAT MOUNTING
$3.45¢1 725
1
#018
90106-MAV-000
SCREW, PAN
$2.59¢1 294
1
#019
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#020
90320-747-000
NUT, SPRING (6MM)
$2.64¢1 322
1
#021
90522-170-700
COLLAR, GEARSHIFT LEVER SETTING
$2.30¢1 150
1
#022
90524-030-000
WASHER A, HANDLE HOLDER SETTING
$1.64¢822
1
#023
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#024
94021-06070-0S
NUT, CAP (6MM)
$1.83¢914
1
#025
95701-06016-07
BOLT, FLANGE (6X16)
$1.92¢960
1
#026
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#027
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#028
96001-06028-07
BOLT, FLANGE (6X28)
$1.79¢897
1
#029
96300-08032-00
BOLT, FLANGE (8X32)
$1.92¢960
1
