FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

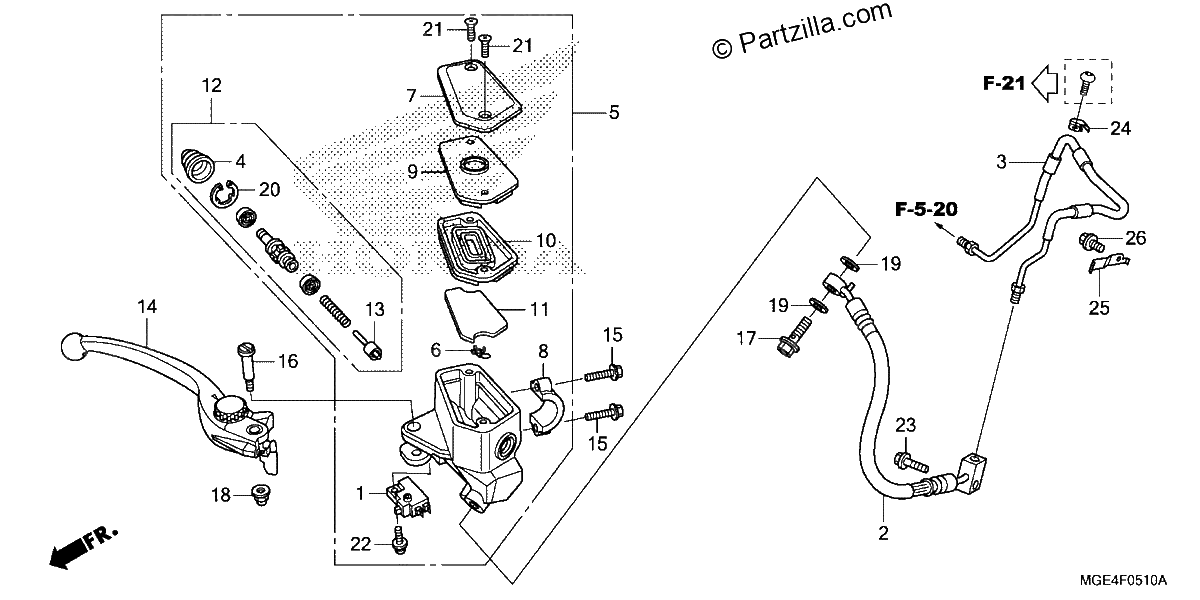

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#001
35340-MM5-600
SWITCH Assembly., Front STOP
$23.13¢11 563
1
#002
45123-MGE-003
HOSE A, Front BRAKE
$48.77¢24 386
1
#003
45125-MGE-010
PIPE A, Front BRAKE
$21.61¢10 804
1
#004
45504-MCF-006
BOOT
$14.06¢7 032
1
#005
45510-MGE-006
MASTER CYLINDER SUB-Assembly., Front.
$474.01¢237 003
1
#005
45510-MGE-305
MASTER CYLINDER SUB-Assembly., Front.(COO)
$474.01¢237 003
1
#005
45510-MGE-D41
MASTER CYLINDER SUB-Assembly., Front BRAKE
$474.01¢237 003
1
#006
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#007
45513-MGE-006
CAP, MASTER CYLINDER
$41.48¢20 740
1
#008
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#009
45518-MGE-006
PLATE, DIAPHRAGM
$9.54¢4 773
1
#010
45520-MGE-006
DIAPHRAGM
$17.95¢8 976
1
#011
45523-MGE-006
FLOAT, Front MASTER CYLINDER
$6.90¢3 450
1
#012
45530-MGE-006
MASTER CYLINDER SET
$50.84¢25 421
1
#013
46140-MGE-006
GUIDE, SPRING
$5.69¢2 846
1
#014
53170-MGE-006
LEVER Assembly., Right HANDLE
$72.56¢36 283
1
#014
53170-MGE-305
LEVER SET, Right HANDLE (COO)
$72.56¢36 283
1
#015
90010-GHB-660
BOLT, FLANGE (6X22)
$1.47¢736
1
#015
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#016
90114-MCF-006
BOLT, HANDLE LEVER
$6.49¢3 243
1
#017
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#018
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#019
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#020
90651-MCF-006
CIRCLIP
$2.68¢1 340
1
#021
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#021
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#022
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#022
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#023
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
