CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

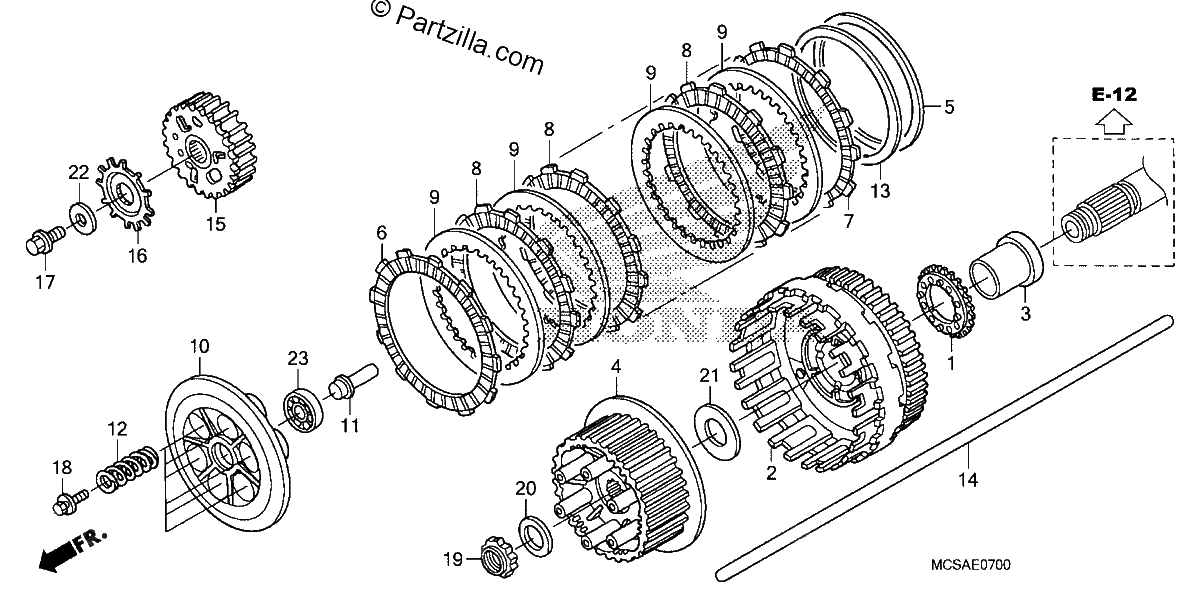

Diagrama de CLUTCH

Repuestos

#001
19230-MCS-000
SPROCKET, WATER PUMP DRIVE (33T)
$59.18¢29 589
1
#002
22100-MCS-000
CLUTCH OUTER
$438.26¢219 133
1
#003
22116-MCS-700
COLLAR, CLUTCH (OUTER)
$28.28¢14 139
1
#004
22120-MCS-000
CENTER, CLUTCH
$141.92¢70 961
1
#005
22125-MAT-000
SEAT, JUDDER SPRING
$14.33¢7 165
1
#006
22201-MCA-000
DISK, CLUTCH FRICTION
$19.26¢9 631
1
#007
22202-MCS-000
DISK B, CLUTCH FRICTION
$16.77¢8 384
1
#008
22203-MCA-000
DISK A, CLUTCH FRICTION
$20.22¢10 108
1
#009
22321-MN5-000
PLATE A, CLUTCH
$14.93¢7 464
1
#010
22350-MCH-000
PLATE, CLUTCH PRESSURE
$90.82¢45 408
1
#011
22366-MS2-611
PIECE, CLUTCH JOINT
$20.17¢10 085
1
#012
22401-MCS-000
SPRING, CLUTCH
$4.96¢2 478
1
#013
22402-MAT-000
SPRING, JUDDER
$25.86¢12 932
1
#014
22851-MCS-000
ROD, CLUTCH LIFTER
$33.14¢16 572
1
#015
23100-MCS-000
GEAR ASSY., PRIMARY DRIVE (42T)
$255.66¢127 828
1
#016
30291-MCS-000
ROTOR, PULSER
$17.91¢8 953
1
#017
90005-MN5-000
BOLT, FLANGE (12X30)
$9.96¢4 980
1
#018
90022-MAT-E00
BOLT-WASHER (6X35)
$5.44¢2 720
1
#019
90231-MS2-610
NUT, LOCK (25MM)
$20.06¢10 028
1
#020
90401-MBB-000
WASHER (25.1X37X5)
$4.69¢2 346
1
#021
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$18.79¢9 395
1
#022
90402-MBB-000
WASHER (12.5X36X6)
$4.77¢2 386
1
#023
91008-362-000
BEARING, RADIAL BALL (16003)
$16.57¢8 286
1
#023
91008-KK6-000
BEARING, RADIAL BALL (16003)
$16.57¢8 286
1
#023
91010-HC0-003
BEARING, RADIAL BALL (16003)
$16.57¢8 286
1
#023
91011-KK6-013
BEARING, RADIAL BALL (16003)
$16.57¢8 286
1
