FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

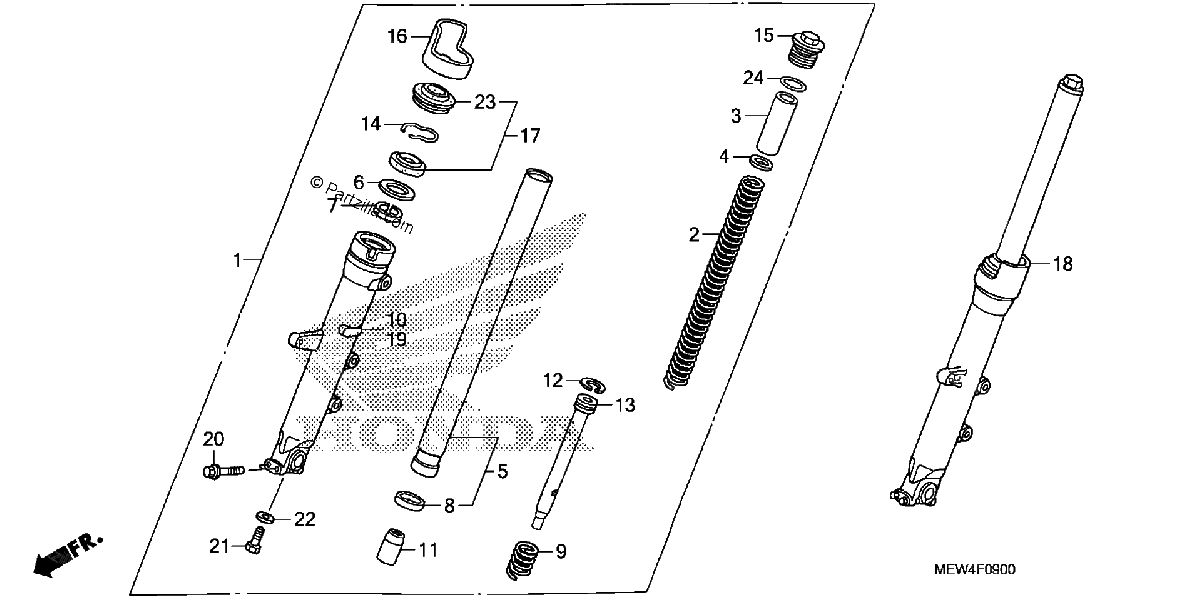

Diagrama de FRONT FORK

Repuestos

#1
51400-MEW-305
FORK ASSY., R. FR. (COO)
$770.94¢385 469
1
#2
51401-MEW-921
SPRING, FR. FORK
$109.96¢54 981
1
#3
51402-MV8-901
COLLAR, SPRING
$22.79¢11 394
1
#4
51403-KF0-003
SEAT, SPRING (SHOWA)
$5.81¢2 906
1
#4
51403-MBL-611
SEAT, SPRING
$5.81¢2 906
1
#5
51410-MEW-D41
PIPE, FR. FORK
$319.20¢159 600
1
#6
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#6
51412-MBL-611
RING, BACK-UP
$7.60¢3 800
1
#7
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#8
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#9
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$9.36¢4 681
1
#9
51416-MBL-611
SPRING, FR. REBOUND
$8.24¢4 119
1
#10
51420-MEW-921
CASE, R. (LOWER)
$326.38¢163 188
1
#11
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$28.82¢14 413
1
#11
51432-MBL-D01
PIECE, OIL LOCK
$24.46¢12 231
1
#12
51437-MEW-921
RING, PISTON
$7.92¢3 963
1
#13
51440-MEW-921
PIPE, SEAT
$48.50¢24 250
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#14
51447-MBL-611
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#15
51454-MER-D01
BOLT, FR. FORK
$38.98¢19 488
1
#16
51460-MT3-611
PROTECTOR, FORK PIPE
$13.69¢6 844
1
#17
51490-MER-R61
SEAL SET, Front FORK
$26.44¢13 219
1
#18
51500-MEW-305
FORK ASSY., L. FR. (COO)
$770.94¢385 469
1
#19
51520-MEW-921
CASE, L. (LOWER)
$326.38¢163 188
1
#20
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#21
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#22
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#23
91254-MEE-D01
DUST SEAL (SHOWA)
$10.00¢5 000
1
#24
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
