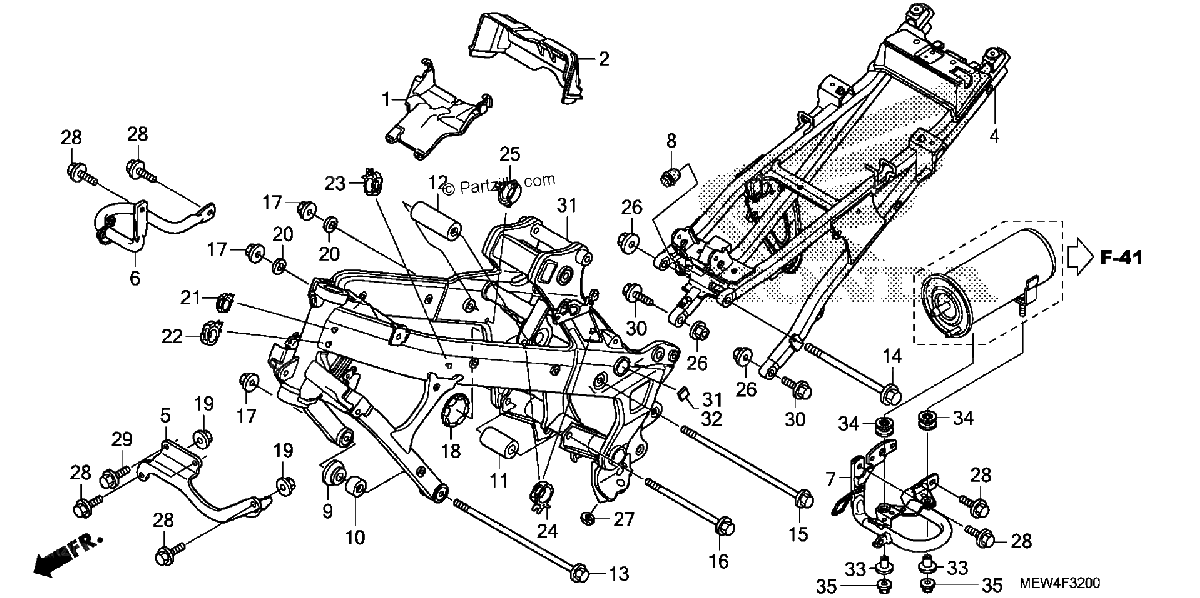

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PLATE, FR. HEAT GUARD
$16.54¢8 269
#2
GUARD, RR. HEAT
$31.29¢15 644
#4
RAIL, SEAT
$590.26¢295 131
#5
PLATE, FR. CROSS
$44.07¢22 037
#6
GUARD, R. ENGINE
$110.45¢55 225
#7
GUARD, L. ENGINE
$126.99¢63 494
#8
RUBBER, STOPPER
$3.65¢1 825
#9
COLLAR, R. FR. ENGINE HANGER
$9.39¢4 694
#10
COLLAR A, L. ENGINE HANGER
$7.52¢3 762
#11
COLLAR D, ENGINE HANGER
$8.53¢4 263
#12
COLLAR C, L. ENGINE HANGER (24X65)
$10.10¢5 050
#13
BOLT, ENGINE HANGER (10X270)
$26.31¢13 156
#14
BOLT, FLANGE (12X205)
$17.24¢8 619
#15
BOLT, FLANGE (10X265)
$16.00¢8 000
#16
BOLT, FLANGE (10X185)
$15.80¢7 900
#17
NUT, FLANGE (10MM)
$1.90¢950
#17
NUT, FLANGE (10MM)
$1.90¢950
#17
NUT, HEX. (10MM)
$1.90¢950
#18
CAP, PIVOT
$9.53¢4 763
#19
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
#20
WASHER (10.5X25)
$4.84¢2 419
#21
CLIP, CABLE (15MM)
$2.81¢1 406
#22
CLIP, CABLE (20MM)
$2.81¢1 406
#23
CLIP, CABLE (25MM)
$2.81¢1 406
#24
CLIP, CABLE (30MM)
$3.65¢1 825
#25
CLIP, WIRE HARNESS (BLACK)
$9.18¢4 588
#26
NUT, FLANGE (12MM)
$1.27¢638
#27
E-RING (6MM)
$3.65¢1 825
#28
BOLT, FLANGE (8X20)
$2.03¢1 013
#29
BOLT, FLANGE (8X55)
$3.08¢1 538
#30
BOLT, FLANGE (12X70) (DR)
$3.98¢1 988
#31
FRAME SET
$1874.97¢937 488
#32
FASTENER B, DUAL LOCK (20X20)
$3.65¢1 825
#33
COLLAR, SETTING
$8.39¢4 194
#34
RUBBER B, SIDE SHELTER
$5.47¢2 738
#35
NUT, FLANGE (6MM)
$1.86¢931
