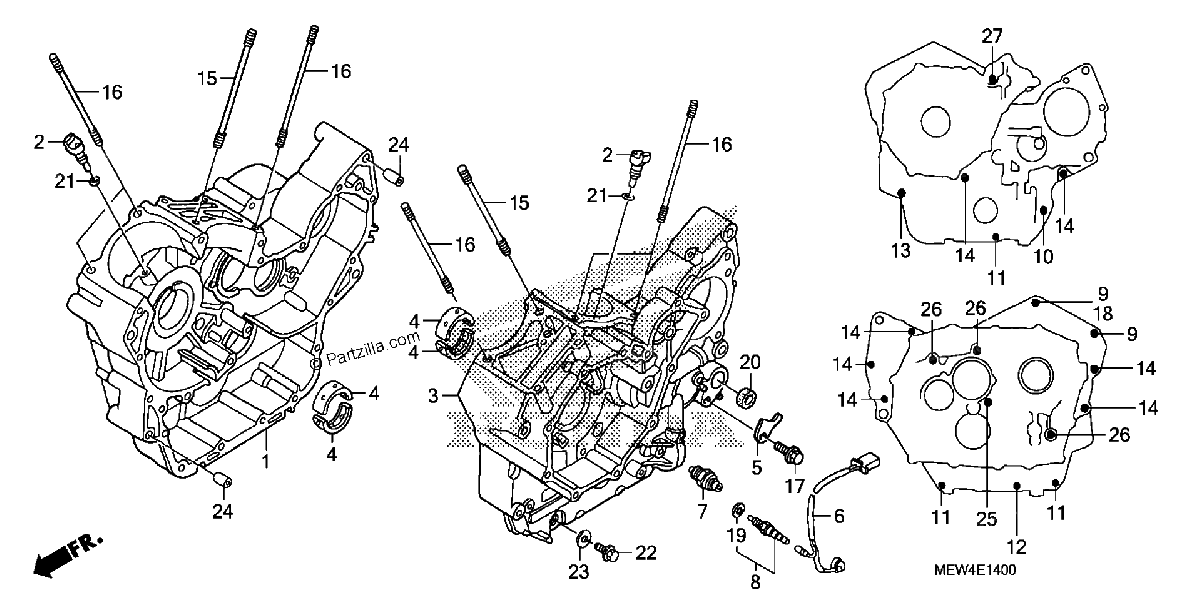

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE, R.
$1051.78¢525 889
#2
JET, OIL
$13.48¢6 739
#3
CRANKCASE, L.
$1051.78¢525 889
#4
BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW)
$15.48¢7 740
#4
BEARING G, CRANKSHAFT (OVER SIZE) (RED)
$15.48¢7 740
#4
BEARING F, CRANKSHAFT (OVER SIZE) (PINK)
$15.48¢7 740
#4
BEARING D, CRANKSHAFT (GREEN)
$16.16¢8 079
#4
BEARING C, CRANKSHAFT (BROWN)
$16.16¢8 079
#4
BEARING B, CRANKSHAFT (BLACK)
$16.16¢8 079
#4
BEARING A, CRANKSHAFT (BLUE)
$16.16¢8 079
#5
PLATE, SPINDLE
$11.56¢5 779
#6
SUB-HARNESS, ENGINE
$60.12¢30 061
#7
SWITCH Assembly., OIL PRESSURE (DENSO)
$45.33¢22 667
#8
SWITCH Assembly., NEUTRAL (TEC)
$25.36¢12 679
#9
BOLT, FLANGE (8X140)
$5.37¢2 685
#10
BOLT, FLANGE (6X35) (NSHF)
$2.28¢1 138
#11
BOLT, FLANGE (6X50) (NSHF)
$2.13¢1 064
#12
BOLT, FLANGE (6X80) (NSHF)
$2.39¢1 196
#13
BOLT, FLANGE (8X70)
$4.52¢2 260
#14
BOLT, FLANGE (8X80)
$3.09¢1 547
#15
BOLT, STUD (12X146.5)
$9.59¢4 796
#16
BOLT, STUD (10X150.5)
$8.76¢4 382
#17
BOLT, FLANGE (6X14) (CT200)
$2.64¢1 322
#18
WASHER, SEALING (8MM)
$3.09¢1 547
#19
WASHER, NEUTRAL SWITCH
$1.59¢793
#20
OIL SEAL (12.5X25X8) (ARAI)
$7.38¢3 691
#21
O-RING (5X1.7) (ARAI)
$3.36¢1 679
#22
BOLT, DRAIN PLUG (14MM)
$3.98¢1 989
#23
WASHER, DRAIN PLUG (14MM)
$0.74¢368
#24
PIN, DOWEL (14X20)
$2.70¢1 351
#25
BOLT, FLANGE (8X65)
$2.04¢1 018
#26
BOLT, FLANGE (8X80)
$1.54¢771
#27
BOLT, FLANGE (8X125)
$5.50¢2 749
#27
BOLT, FLANGE (8X125)
$5.50¢2 749
