THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

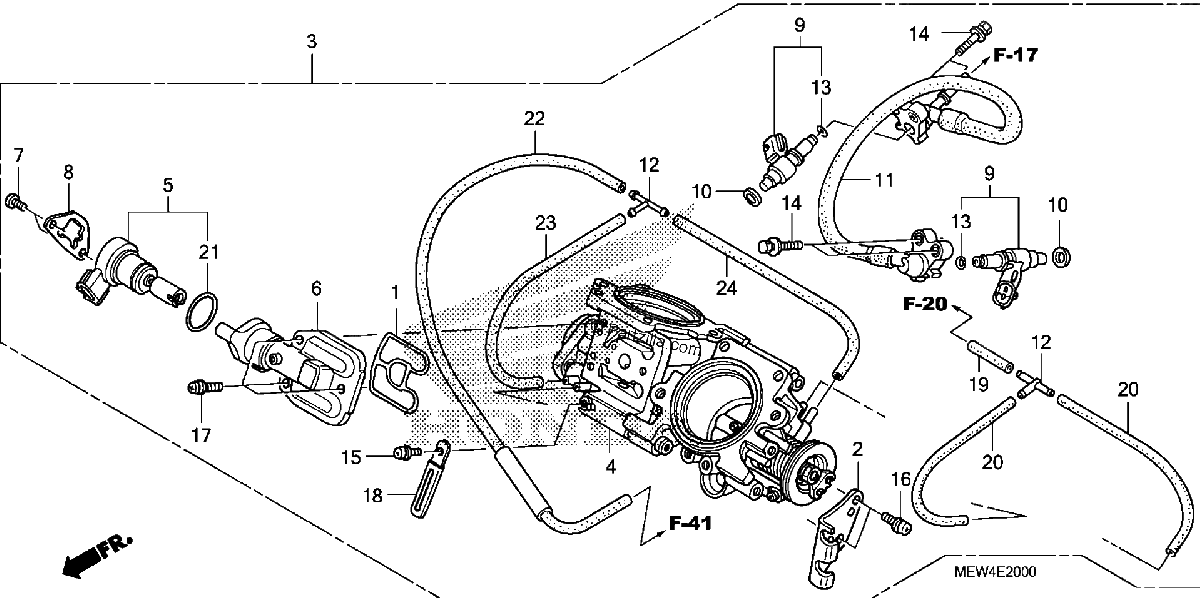

Diagrama de THROTTLE BODY

Repuestos

#1
16075-MEW-921
O-RING
$2.81¢1 406
1
#2
16169-MEW-921
STAY, WIRE
$13.10¢6 550
1
#3
16400-MEW-L01
BODY ASSY., THROTTLE (GQ66C A)
$1436.79¢718 394
1
#4
16401-MEW-L01
BODY ASSY., THROTTLE
$1350.09¢675 044
1
#5
16430-MEW-921
MOTOR ASSY.
$117.03¢58 513
1
#6
16431-MEW-921
BODY, IDLE AIR CONTROL VALVE
$98.77¢49 387
1
#7
16433-HN8-A61
SCREW, TORX
$0.47¢238
1
#8
16433-MEW-921
PLATE, IDLE AIR CONTROL VALVE
$13.32¢6 663
1
#9
16450-MEW-922
INJECTOR ASSY., FUEL
$153.63¢76 813
1
#10
16472-MCW-000
SEAL RING, INJECTOR
$3.08¢1 538
1
#11
16610-MEW-921
PIPE, FUEL
$9.80¢4 900
1
#12
17201-MG9-000
JOINT A, VACUUM TUBE
$18.50¢9 250
1
#13
91301-P7A-004
O-RING (7.8X1.9)
$4.07¢2 037
1
#14
93403-05025-00
BOLT-WASHER (5X25)
$1.57¢788
1
#15
93892-04008-00
SCREW-WASHER (4X8)
$0.65¢325
1
#15
93892-04008-10
SCREW-WASHER (4X8)
$0.65¢325
1
#16
93892-05012-00
SCREW-WASHER (5X12)
$1.06¢531
1
#16
93892-05012-10
SCREW-WASHER (5X12)
$1.06¢531
1
#17
93892-05016-00
SCREW-WASHER (5X16)
$0.83¢413
1
#17
93892-05016-10
SCREW-WASHER (5X16)
$0.83¢413
1
#18
94591-25000
CLIP (2X50)
$2.97¢1 487
1
#19
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
#20
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
#21
16435-MFJ-D01
O-RING (17.8X1.9)
$3.91¢1 956
1
#22
17411-MEW-L00
TUBE (PCV-THROTTLE BODY)
$7.13¢3 563
1
#23
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
#24
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
