AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

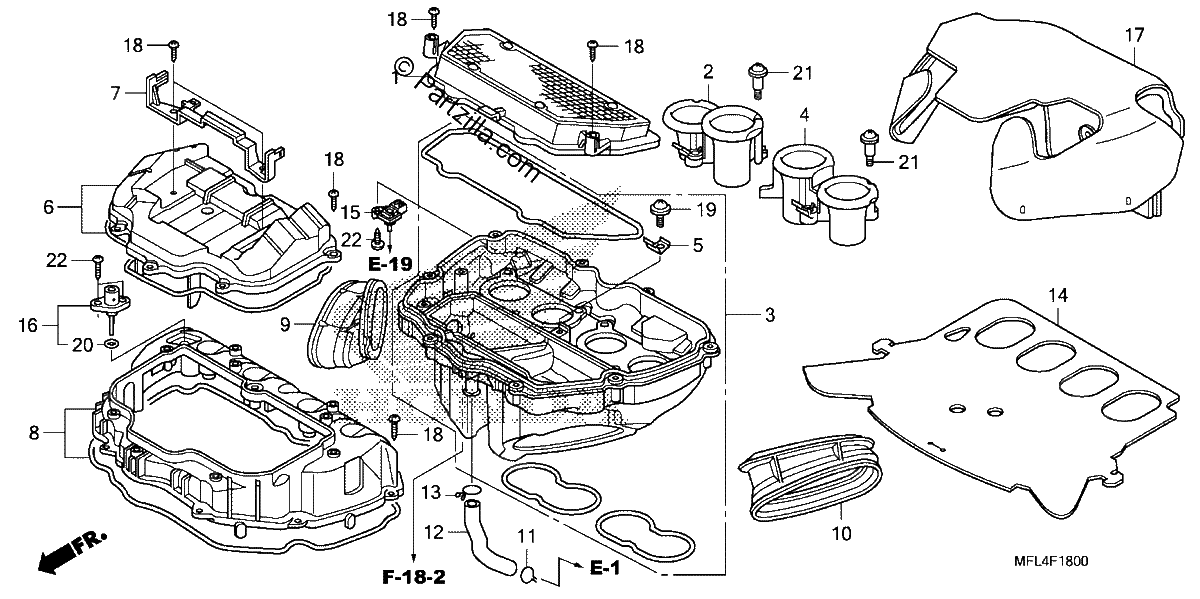

Diagrama de AIR CLEANER

Repuestos

#001
17210-MFL-000
ELEMENT, AIR CLEANER
$49.74¢24 869
1
#002
17215-MFL-670
FUNNEL, R. AIR
$45.09¢22 544
1
#003
17220-MFL-000
HOUSING, AIR CLEANER (LOWER)
$151.99¢75 994
1
#004
17225-MFL-670
FUNNEL, L. AIR
$45.09¢22 544
1
#005
17227-MEE-000
RETAINER, AIR CLEANER ELEMENT
$6.67¢3 338
1
#006
17230-MFL-000
COVER, AIR CLEANER
$97.64¢48 819
1
#006
17230-MFL-010
COVER, AIR CLEANER
$97.64¢48 819
1
#007
17239-MFL-000
PLATE, PGM-FI UNIT SETTING
$4.77¢2 387
1
#008
17240-MFL-000
HOUSING, AIR CLEANER MIDDLE
$131.13¢65 563
1
#009
17255-MFL-010
JOINT, R. RAM DUCT
$15.28¢7 638
1
#010
17265-MFL-010
JOINT, L. RAM DUCT
$15.28¢7 638
1
#011
17366-MJ0-000
CLIP B, TUBE
$2.89¢1 444
1
#012
17551-MFL-000
TUBE, ENGINE BREATHER
$10.61¢5 306
1
#013
18532-634-670
CLIP, AIR HOSE (21.5)
$9.63¢4 813
1
#014
19127-MFL-000
RUBBER, HEAT GUARD
$41.64¢20 819
1
#015
37830-MEL-003
SENSOR ASSY., MAP
$150.09¢75 044
1
#016
37880-P05-A00
SENSOR ASSY., AIR TEMPERATURE
$38.05¢19 025
1
#017
64401-MFL-000
MAT, AIR CLEANER
$58.01¢29 006
1
#018
90105-MFJ-D00
SCREW, TAPPING (4X18) (DELTA PT)
$2.64¢1 319
1
#019
90145-MBY-000
SCREW, SPECIAL (5X8)
$4.69¢2 344
1
#020
91303-PK2-005
O-RING (7.5X1.5)
$3.63¢1 813
1
#021
91508-MM5-000
SCREW, PAN (5MM)
$4.95¢2 475
1
#022
93901-25420
SCREW, TAPPING (5X20)
$1.06¢531
1
