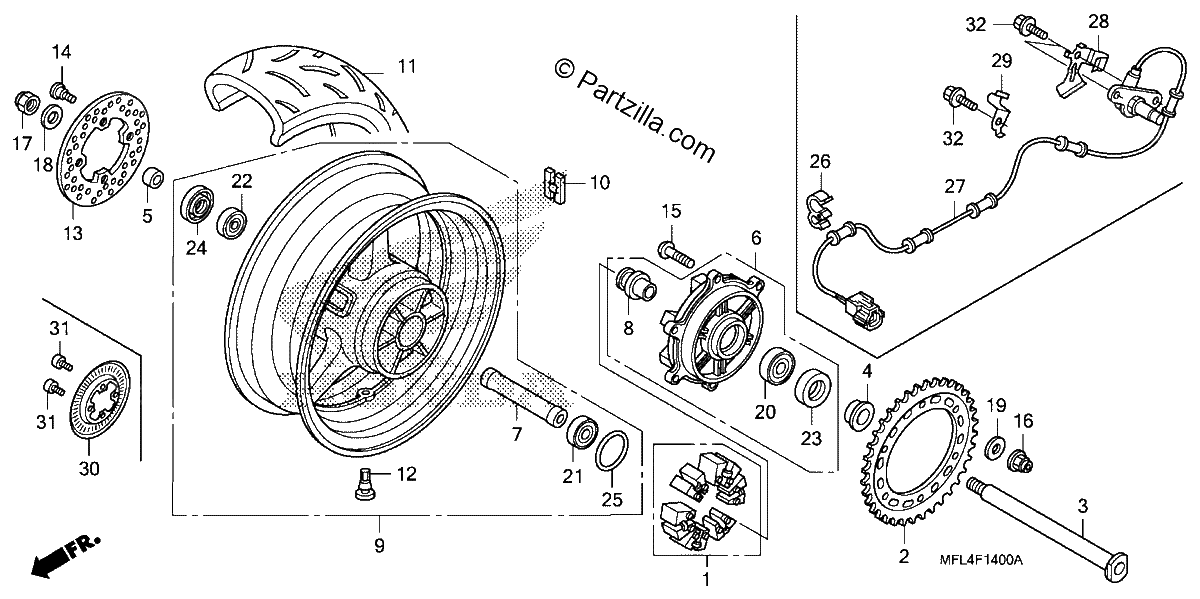

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$58.91¢29 457
#002
SPROCKET, FINAL DRIVEN (42T)
$131.13¢65 567
#003
AXLE, RR. WHEEL
$85.02¢42 510
#004
COLLAR, RR. WHEEL SIDE
$26.66¢13 328
#005
COLLAR, RR. BRAKE SIDE
$14.19¢7 095
#006
FLANGE SUB-ASSY., RR. DRIVEN
$227.04¢113 522
#007
COLLAR, RR. AXLE DISTANCE
$46.55¢23 276
#008
COLLAR B, RR. WHEEL DISTANCE
$32.84¢16 422
#009
WHEEL SUB-ASSY., RR. (TYPE2)
$1224.83¢612 415
#009
WHEEL SUB-ASSY., RR. (TYPE2) (COO)
$1224.83¢612 415
#010
WEIGHT, BALANCE (10G)
$10.04¢5 020
#010
WEIGHT, BALANCE (20G)
$20.62¢10 310
#010
WEIGHT, BALANCE (30G)
$20.32¢10 160
#011
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
No Disponible
#011
TIRE, RR. (190/50ZR17) (M/C 73W) (DUNLOP)
$337.04¢168 521
#012
VALVE, RIM (BS)
$13.60¢6 802
#012
VALVE, RIM (DUNLOP)
$13.60¢6 802
#013
DISK, RR. BRAKE
$245.61¢122 803
#014
BOLT, BRAKE DISK (8X24)
$4.47¢2 237
#015
BOLT (10X30)
$3.36¢1 679
#016
NUT, U (10MM)
$4.83¢2 415
#017
NUT, U (22MM)
$8.58¢4 289
#017
NUT, U (22MM)
$8.58¢4 289
#018
WASHER (23X37X2.5)
$5.63¢2 818
#019
WASHER (10MM)
$3.32¢1 662
#020
BEARING, ANGULAR BALL (28X56X15)
$42.84¢21 419
#021
BEARING, RADIAL BALL (6005)
$16.03¢8 015
#022
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
#023
DUST SEAL (35X56X7.5)
$8.84¢4 422
#024
DUST SEAL (35X57X7.5)
$8.03¢4 013
#025
O-RING (51X2)
$4.21¢2 105
