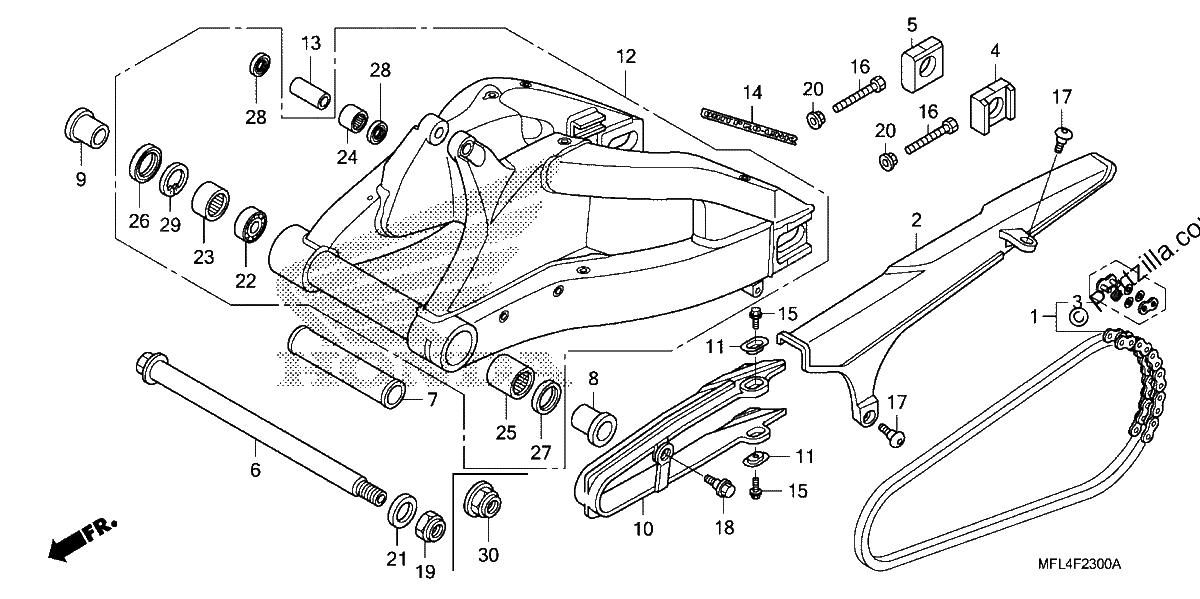

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
(STANDARD LINK 116L)
$362.13¢181 063
#001
(STANDARD LINK 116L)
$362.13¢181 063
#002
CASE, DRIVE CHAIN
$57.39¢28 694
#003
MASTER LINK (RK EXCEL)
$15.90¢7 950
#003
MASTER LINK (DAIDO)
$10.96¢5 481
#004
COLLAR, L. RR. AXLE
$29.26¢14 631
#005
COLLAR, R. RR. AXLE
$35.41¢17 706
#006
BOLT, SWINGARM PIVOT
$80.61¢40 306
#007
COLLAR, RR. SWINGARM DISTANCE
$38.46¢19 231
#008
COLLAR, L. PIVOT DISTANCE
$40.23¢20 113
#009
COLLAR, R. PIVOT DISTANCE
$31.23¢15 613
#010
SLIDER, CHAIN
$57.27¢28 638
#011
WASHER, CHAIN SLIDER
$2.85¢1 425
#012
SWINGARM SUB-Assembly.
$2821.11¢1 410 556
#012
SWINGARM SUB-ASSY.
$2821.11¢1 410 556
#013
COLLAR, CUSHION CONNECTING ROD
$13.66¢6 831
#014
MARK (UNIT PROLINK)
$4.95¢2 475
#015
BOLT, FLANGE (6X18)
$3.65¢1 825
#016
BOLT, HEX. (8X50)
$3.71¢1 856
#017
SCREW, SPECIAL (6X16)
$3.34¢1 669
#018
BOLT, CHAIN SLIDER
$3.71¢1 856
#019
NUT, U (22MM)
$9.32¢4 663
#019
NUT, U (22MM)
$9.32¢4 663
#020
NUT, HEX. (8MM)
$4.13¢2 063
#021
WASHER (23X37X2.5)
$6.13¢3 063
#022
BEARING, RADIAL BALL (6905)
$19.49¢9 744
#023
BEARING, NEEDLE (32X42X20)
$37.27¢18 638
#024
BEARING, NEEDLE (KOYO)
$28.90¢14 450
#025
BEARING, NEEDLE (32X42X37)
$24.45¢12 225
#026
DUST SEAL (32X45X5)
$8.39¢4 194
#027
DUST SEAL (32X42X6)
$7.77¢3 887
#028
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
#029
CIRCLIP, INNER (45MM)
$2.95¢1 475
