GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

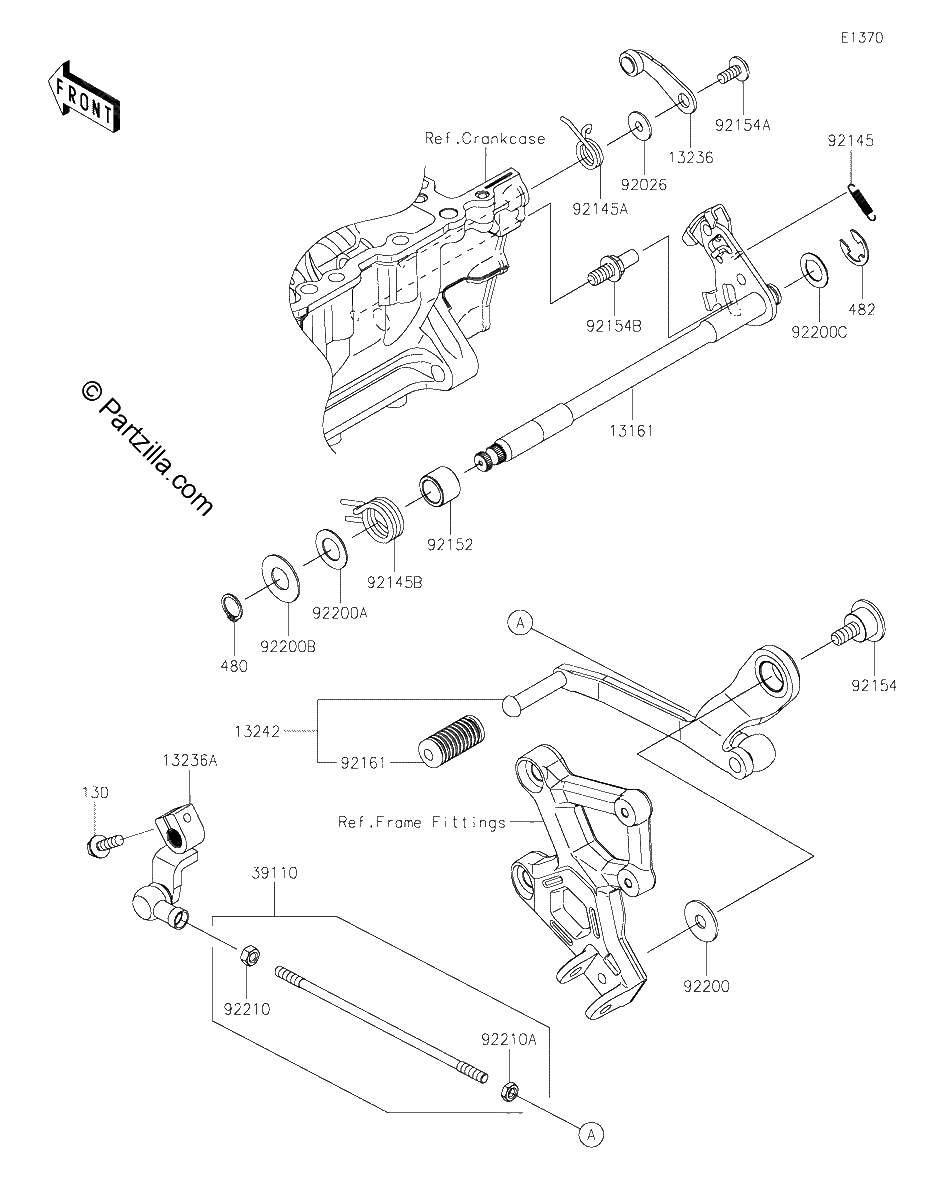

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#130
130CB0620
BOLT-FLANGED,6X20
$7.61¢3 806
1
#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.96¢2 481
1
#482
482J0200
CIRCLIP-TYPE-E,12MM
$4.13¢2 063
1
#13161
13161-0609
LEVER COMP CHANGE SHAFT
$88.54¢44 269
1
#13236A
13236-0858
LEVER COMP
$59.40¢29 700
1
#13236
13236-0794
LEVER-COMP,POSITION
$11.71¢5 856
1
#13242
13242-0173
LEVER Assembly CHANGE
$56.33¢28 163
1
#39110
39110-0312
ROD Assembly TIE
$84.05¢42 025
1
#92026
92026-1217
SPACER
$5.45¢2 725
1
#92145B
92145-1958
SPRING,RETURN
$8.58¢4 288
1
#92145A
92145-1814
SPRING,DRUM POSITION
$1.04¢519
1
#92145
92145-1813
SPRING,PAWL RETURN
$1.04¢519
1
#92152
92152-2370
COLLAR,14.2X19.9X14.3
$4.79¢2 394
1
#92154B
92154-4400
BOLT,RETURN SPRING
$3.17¢1 588
1
#92154A
92154-2731
BOLT,SOCKET,6X14
$2.13¢1 063
1
#92154
92154-1884
BOLT
$33.71¢16 856
1
#92161
92161-1466
DAMPER,CHANGE PEDAL
$3.01¢1 506
1
#92200C
92200-2559
WASHER,CHANGE SHAFT
$1.25¢625
1
#92200B
92200-2295
WASHER,14.3X30X1.2
$2.48¢1 238
1
#92200A
92200-1933
WASHER,14.2X25X1
$0.81¢406
1
#92200
92200-1446
WASHER
$1.91¢956
1
#92210
92210-1596
NUT,6MM
$2.26¢1 131
1
#92210A
92210-1597
NUT,LEFT HANDED,6MM
$2.86¢1 431
1
