CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

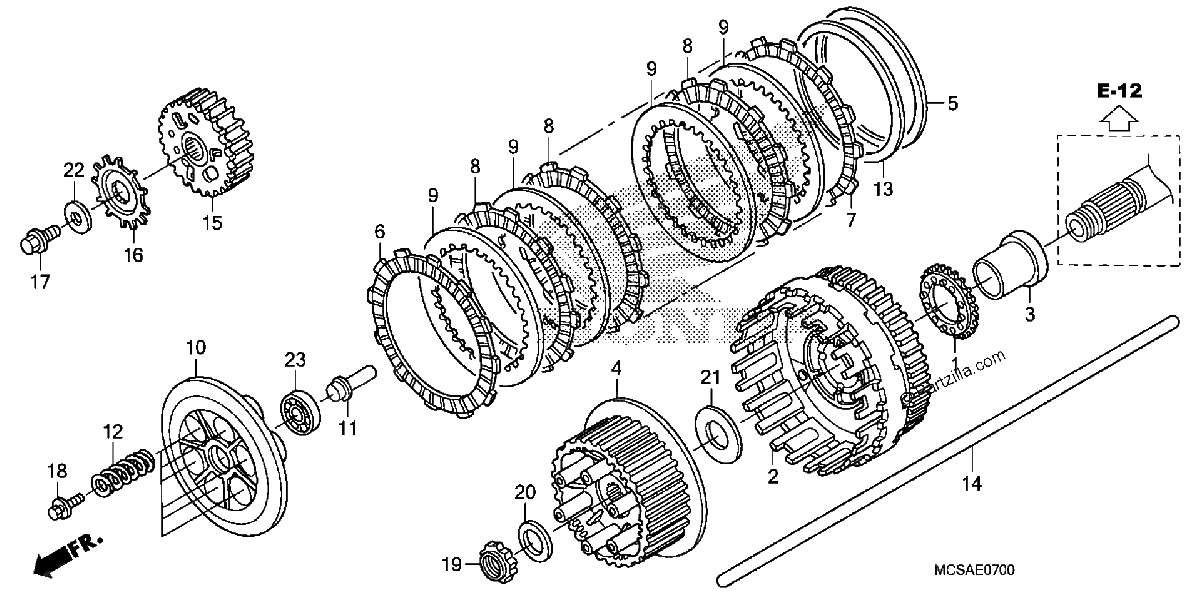

Diagrama de CLUTCH

Repuestos

#1
19230-MCS-000
SPROCKET, WATER PUMP DRIVE (33T)
$64.33¢32 163
1
#2
22100-MCS-000
CLUTCH OUTER
$476.38¢238 188
1
#3
22116-MCS-700
COLLAR, CLUTCH (OUTER)
$30.74¢15 369
1
#4
22120-MCS-000
CENTER, CLUTCH
$154.26¢77 131
1
#5
22125-MAT-000
SEAT, JUDDER SPRING
$15.58¢7 788
1
#6
22201-MCA-000
DISK, CLUTCH FRICTION
$20.94¢10 469
1
#7
22202-MCS-000
DISK B, CLUTCH FRICTION
$18.23¢9 113
1
#8
22203-MCA-000
DISK A, CLUTCH FRICTION
$21.97¢10 987
1
#9
22321-MN5-000
PLATE A, CLUTCH
$16.23¢8 113
1
#10
22350-MCH-000
PLATE, CLUTCH PRESSURE
$98.71¢49 356
1
#11
22366-MS2-611
PIECE, CLUTCH JOINT
$21.92¢10 962
1
#12
22401-MCS-000
SPRING, CLUTCH
$5.39¢2 694
1
#13
22402-MAT-000
SPRING, JUDDER
$28.11¢14 056
1
#14
22851-MCS-000
ROD, CLUTCH LIFTER
$36.02¢18 013
1
#15
23100-MCS-000
GEAR ASSY., PRIMARY DRIVE (42T)
$277.89¢138 944
1
#16
30291-MCS-000
ROTOR, PULSER
$19.46¢9 731
1
#17
90005-MN5-000
BOLT, FLANGE (12X30)
$10.82¢5 413
1
#18
90022-MAT-E00
BOLT-WASHER (6X35)
$5.91¢2 956
1
#19
90231-MS2-610
NUT, LOCK (25MM)
$21.80¢10 900
1
#20
90401-MBB-000
WASHER (25.1X37X5)
$5.10¢2 550
1
#21
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$20.43¢10 213
1
#22
90402-MBB-000
WASHER (12.5X36X6)
$5.19¢2 594
1
#23
91008-362-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#23
91008-KK6-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#23
91010-HC0-003
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#23
91011-KK6-013
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
