FINAL DRIVEN GEAR ST1300

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

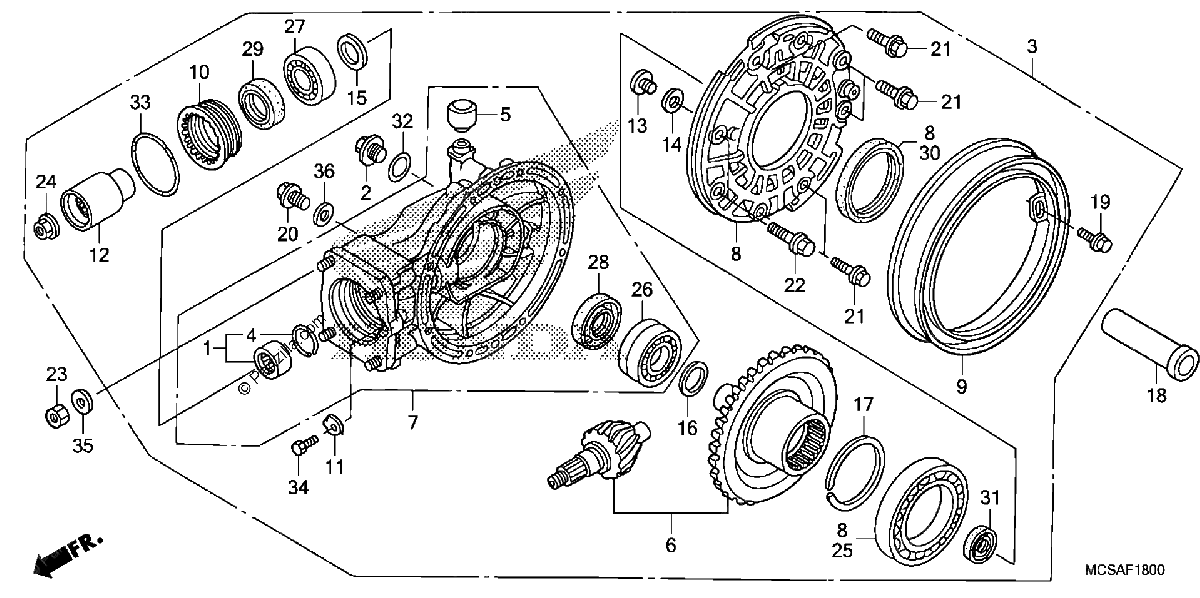

Diagrama de FINAL DRIVEN GEAR ST1300

Repuestos

#1
06910-MZ0-000
BEARING SET, NEEDLE
$42.47¢21 237
1
#2
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$12.51¢6 256
1
#2
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#2
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#3
41300-MCS-612
GEAR ASSY., FINAL DRIVEN
No Disponible
1
#4
41305-MB4-770
RING, STOPPER
$7.24¢3 619
1
#5
41306-MB0-020
CAP, BREATHER
$10.81¢5 406
1
#6
41310-MCS-G01
GEAR SET, FINAL
$507.95¢253 975
1
#7
41311-MCS-G02
CASE SUB-ASSY., FINAL GEAR
$1567.34¢783 669
1
#8
41320-MCS-610
COVER SUB-ASSY., FINAL GEAR
$292.31¢146 156
1
#9
41324-MAJ-G00
PLATE, DUST GUARD
$41.34¢20 669
1
#10
41331-MN5-000
RETAINER, BEARING
$148.49¢74 244
1
#11
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$3.24¢1 619
1
#11
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$3.24¢1 619
1
#12
41410-MCS-G00
JOINT, PINION
$84.74¢42 369
1
#13
41436-MB0-310
PIN, RING GEAR STOPPER
$41.09¢20 544
1
#14
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
$6.81¢3 406
1
#14
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
$6.23¢3 113
1
#15
41457-MT3-610
SHIM H, PINION GEAR (1.53)
$9.57¢4 788
1
#15
41462-MT3-610
SHIM M, PINION GEAR (1.68)
$9.57¢4 788
1
#15
41461-MT3-610
SHIM L, PINION GEAR (1.65)
$9.57¢4 788
1
#15
41460-MT3-610
SHIM K, PINION GEAR (1.62)
$9.57¢4 788
1
#15
41459-MT3-610
SHIM J, PINION GEAR (1.59)
$9.57¢4 788
1
#15
41458-MT3-610
SHIM I, PINION GEAR (1.56)
$9.57¢4 788
1
#15
41452-MT3-610
SHIM C, PINION GEAR (1.38)
$9.57¢4 788
1
#15
41456-MT3-610
SHIM G, PINION GEAR (1.50)
$9.57¢4 788
1
#15
41455-MT3-610
SHIM F, PINION GEAR (1.47)
$9.57¢4 788
1
#15
41454-MT3-610
SHIM E, PINION GEAR (1.44)
$9.57¢4 788
1
#15
41453-MT3-610
SHIM D, PINION GEAR (1.41)
$9.57¢4 788
1
#15
41451-MT3-610
SHIM B, PINION GEAR (1.35)
$9.57¢4 788
1
#15
41450-MT3-610
SHIM A, PINION GEAR (1.32)
$9.57¢4 788
1
#16
41510-MB0-003
WASHER, SPECIAL (35X40)
$15.80¢7 900
1
#17
41539-MT3-610
SHIM J, RING GEAR (2.09)
$29.22¢14 612
1
#17
41546-MT3-610
SHIM Q, RING GEAR (2.30)
$29.22¢14 612
1
#17
41545-MT3-610
SHIM P, RING GEAR (2.27)
$29.22¢14 612
1
#17
41544-MT3-610
SHIM O, RING GEAR (2.24)
$29.22¢14 612
1
#17
41543-MT3-610
SHIM N, RING GEAR (2.21)
$29.22¢14 612
1
#17
41542-MT3-610
SHIM M, RING GEAR (2.18)
$29.22¢14 612
1
#17
41541-MT3-610
SHIM L, RING GEAR (2.15)
$29.22¢14 612
1
#17
41540-MT3-610
SHIM K, RING GEAR (2.12)
$30.54¢15 269
1
#17
41532-MT3-610
SHIM C, RING GEAR (1.88)
$29.22¢14 612
1
#17
41538-MT3-610
SHIM I, RING GEAR (2.06)
$30.54¢15 269
1
#17
41537-MT3-610
SHIM H, RING GEAR (2.03)
$29.22¢14 612
1
#17
41536-MT3-610
SHIM G, RING GEAR (2.00)
$30.54¢15 269
1
#17
41535-MT3-610
SHIM F, RING GEAR (1.97)
$29.22¢14 612
1
#17
41534-MT3-610
SHIM E, RING GEAR (1.94)
$30.54¢15 269
1
#17
41533-MT3-610
SHIM D, RING GEAR (1.91)
$29.22¢14 612
1
#17
41531-MT3-610
SHIM B, RING GEAR (1.85)
$30.54¢15 269
1
#17
41530-MT3-610
SHIM A, RING GEAR (1.82)
$29.22¢14 612
1
#18
42625-MCS-760
COLLAR B, RR. AXLE DISTANCE
$39.94¢19 969
1
#19
90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.90¢950
1
#20
90118-MCH-000
BOLT, PLUG (14MM)
$8.22¢4 113
1
#21
90133-MB0-000
BOLT, FLANGE (8X27)
$9.83¢4 913
1
#22
90134-HA0-000
BOLT, FLANGE (10X35)
$9.56¢4 781
1
#23
90308-357-000
NUT, HEX. (10MM)
$5.90¢2 950
1
#24
90381-MT3-000
NUT, HEX. (16MM)
$8.77¢4 387
1
#25
91051-MN5-003
BEARING, RADIAL BALL (65X100X11) (TOYO)
$136.19¢68 094
1
#26
91052-MCS-G01
BEARING, RADIAL BALL (35X62X19)
$53.69¢26 844
1
#27
91061-MT3-003
BEARING, RADIAL BALL (QJ3/28V1)
$78.80¢39 400
1
#28
91261-MY3-003
OIL SEAL (35X54X8) (NOK)
$18.40¢9 200
1
#29
91262-MY3-003
OIL SEAL (39X56X7) (NOK)
$15.64¢7 819
1
#30
91265-MY3-003
OIL SEAL (65X85X7) (NOK)
$19.71¢9 856
1
#31
91268-463-003
DUST SEAL (26X40X5)
$8.03¢4 013
1
#32
91302-001-020
O-RING (30.8MM)
$4.54¢2 269
1
#33
91359-MG9-003
O-RING (64.5X3.5) (ARAI)
$5.47¢2 738
1
#34
92101-06012-0A
BOLT, HEX. (6X12)
$1.82¢913
1
#35
94101-10000
WASHER, PLAIN (10MM)
$1.47¢737
1
#36
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.80¢400
1
