FRONT BRAKE HOSE ST1300

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

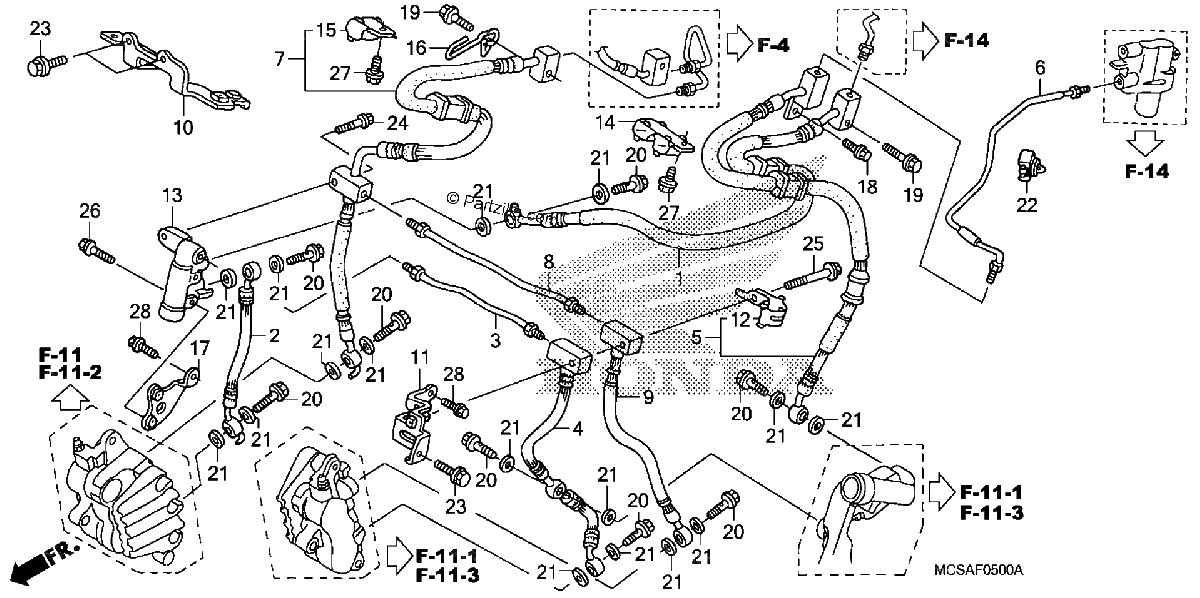

Diagrama de FRONT BRAKE HOSE ST1300

Repuestos

#1
43323-MCS-G01
HOSE B, SUB-BRAKE
$63.08¢31 538
1
#2
43324-MCS-R11
HOSE C, SUB-BRAKE
$41.06¢20 531
1
#3
43325-MCS-G00
PIPE C, SUB-BRAKE
$9.44¢4 719
1
#4
43326-MCS-R11
HOSE D, SUB-BRAKE
$64.35¢32 175
1
#5
43330-MCS-G02
HOSE A, SECOND BRAKE MASTER CYLINDER
$95.14¢47 569
1
#6
43331-MCS-G02
PIPE A, SECOND BRAKE MASTER CYLINDER
$31.21¢15 606
1
#7
45128-MCS-R11
HOSE B, FR. BRAKE
$137.41¢68 706
1
#8
45129-MCS-G00
PIPE C, FR. BRAKE
$10.28¢5 138
1
#9
45131-MCS-R11
HOSE C, FR. BRAKE
$52.30¢26 150
1
#10
45156-MCS-760
STAY A, FR. BRAKE HOSE
$17.30¢8 650
1
#11
45157-MCS-G00
STAY B, FR. BRAKE HOSE
$12.46¢6 231
1
#12
45158-MCS-G00
CLAMP, FR. BRAKE HOSE
$7.75¢3 875
1
#13
46300-MCS-G02
VALVE ASSY., DELAY
$233.95¢116 975
1
#14
52115-MAT-000
CLAMP, BRAKE HOSE
$8.07¢4 037
1
#15
52115-ML8-670
CLAMP, BRAKE HOSE
$6.99¢3 494
1
#16
53121-MCS-G00
GUIDE, THROTTLE CABLE
$9.81¢4 906
1
#17
61103-MCS-G00
STAY, FR. FENDER
$13.32¢6 663
1
#18
90103-MCS-G00
BOLT, FLANGE (6X12)
$1.66¢831
1
#19
90114-MCS-G00
BOLT, FLANGE (6X28)
$1.80¢900
1
#20
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#21
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#22
90661-MCA-003
CLAMP, BRAKE PIPE
$2.76¢1 381
1
#23
95701-06014-07
BOLT, FLANGE (6X14)
$1.77¢888
1
#24
95701-06025-07
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#25
95701-06045-07
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#26
95801-06038-07
BOLT, FLANGE (6X38)
$4.84¢2 419
1
#27
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#28
96001-06016-07
BOLT, FLANGE (6X16)
$1.35¢675
1
