FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

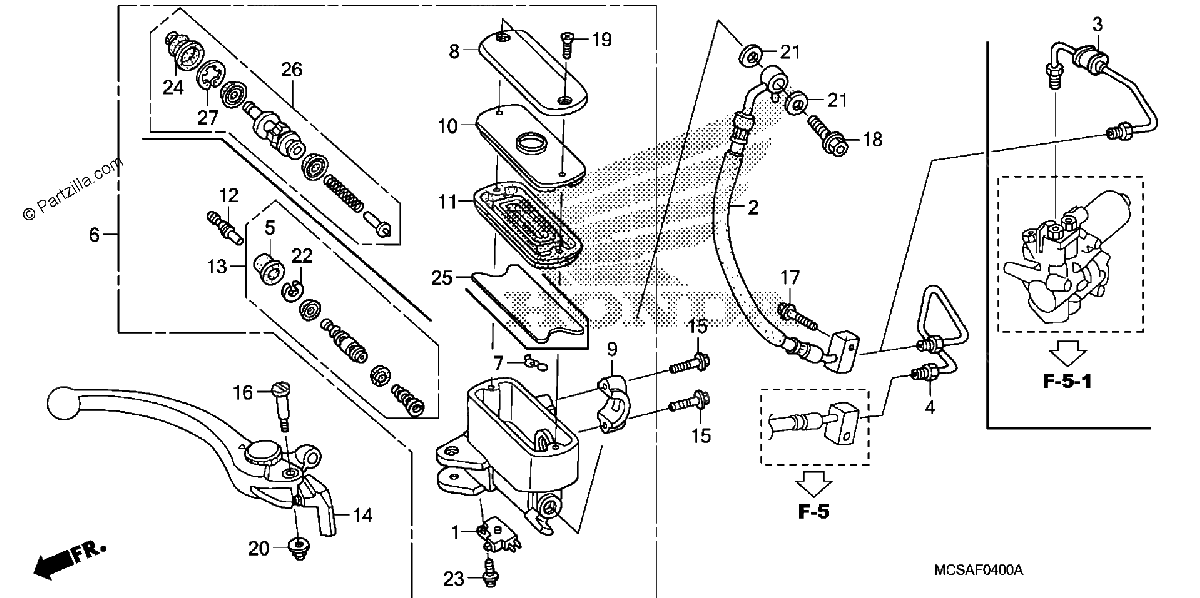

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MM5-600
SWITCH Assembly., Front STOP
$23.13¢11 563
1
#2
45125-MCS-G02
HOSE A, FR. BRAKE
$85.42¢42 711
1
#4
45126-MCS-610
PIPE A, FR. BRAKE
$6.87¢3 433
1
#6
45510-MCS-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$319.47¢159 735
1
#7
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#8
45513-MR1-016
CAP, MASTER CYLINDER (NISSIN)
$32.69¢16 347
1
#9
45517-MCS-761
HOLDER, MASTER CYLINDER
$13.51¢6 756
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#11
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#14
53170-MCS-305
LEVER ASSY., R. HANDLE (COO)
$61.19¢30 596
1
#15
90010-GHB-660
BOLT, FLANGE (6X22)
$1.47¢736
1
#15
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#16
90114-MCF-006
BOLT, HANDLE LEVER
$6.49¢3 243
1
#17
90114-MCS-G00
BOLT, FLANGE (6X28)
$1.66¢828
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#19
90158-MT7-000
SCREW, FLAT
$2.54¢1 271
1
#20
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#21
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#23
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#23
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#24
45504-MCF-006
BOOT
$14.06¢7 032
1
#25
45523-MN5-006
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.01¢2 507
1
#26
45530-MCS-R01
MASTER CYLINDER SET
$59.95¢29 975
1
#27
90651-MCF-006
CIRCLIP
$2.68¢1 340
1
