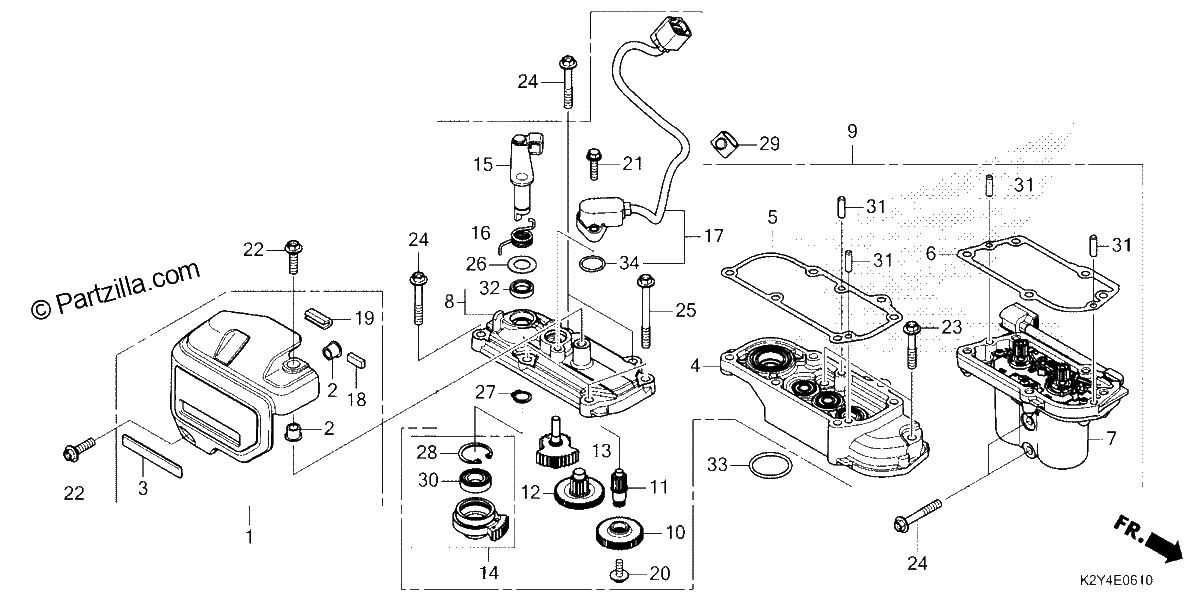

CLUTCH ACTUATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, CLUTCH ARM
$46.73¢23 363
#002
COLLAR
$2.17¢1 088
#003
PLATE, EMBLEM
$28.91¢14 456
#004
CASE, CLUTCH ACTUATOR
$79.46¢39 731
#005
GASKET, CLUTCH ACTUATOR COVER
$7.64¢3 819
#006
GASKET, CLUTCH ACTUATOR CASE
$1.44¢719
#007
CASE Assembly., CLUTCH ACTUATOR MOTOR
$258.46¢129 231
#008
COVER, CLUTCH ACTUATOR
$107.03¢53 513
#009
ACTUATOR Assembly., CLUTCH
$884.98¢442 488
#010
GEAR A, CLUTCH ACTUATOR (51T)
$38.85¢19 425
#011
SHAFT A, CLUTCH ACTUATOR (17T)
$51.34¢25 669
#012
GEAR B, CLUTCH ACTUATOR (62T/11T)
$53.14¢26 569
#013
GEAR C, CLUTCH ACTUATOR (12T/9T)
$70.70¢35 350
#014
GEAR Assembly D, CLUTCH ACTUATOR (8T)
$72.17¢36 088
#015
LEVER, CLUTCH
$33.91¢16 956
#016
SPRING, CLUTCH LEVER
$1.72¢862
#017
SENSOR Assembly., ANGLE (110DEG)
$298.63¢149 313
#018
RUBBER, HANDLE COVER
$1.54¢769
#019
PROTECTOR, RUBBER
$2.24¢1 119
#020
BOLT-WASHER, SPECIAL (5X14)
$1.23¢613
#021
BOLT, FLANGE (5X20)
$1.15¢575
#022
BOLT, FLANGE (6X22)
$3.11¢1 556
#023
BOLT, FLANGE (6X35) (S-NSHF)
$2.64¢1 319
#024
BOLT, FLANGE (6X40)
$3.08¢1 538
#025
BOLT, FLANGE (6X60) (S-NSHF)
$2.48¢1 238
#026
WASHER
$3.08¢1 538
#027
CIRCLIP (OUTER) (12MM)
$1.25¢625
#028
CIRCLIP (INNER) (24MM)
$2.24¢1 119
#029
BAND, RUBBER (50)
$3.77¢1 888
#030
BEARING, RADIAL BALL (6901ZZ)
$5.39¢2 694
#031
ROLLER (5X17.8)
$1.25¢625
#032
OIL SEAL (12X18X5)
$1.15¢575
#033
O-RING (28X2.6)
$1.80¢900
#034
O-RING, ANGLE SENSOR
$3.50¢1 750
