TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

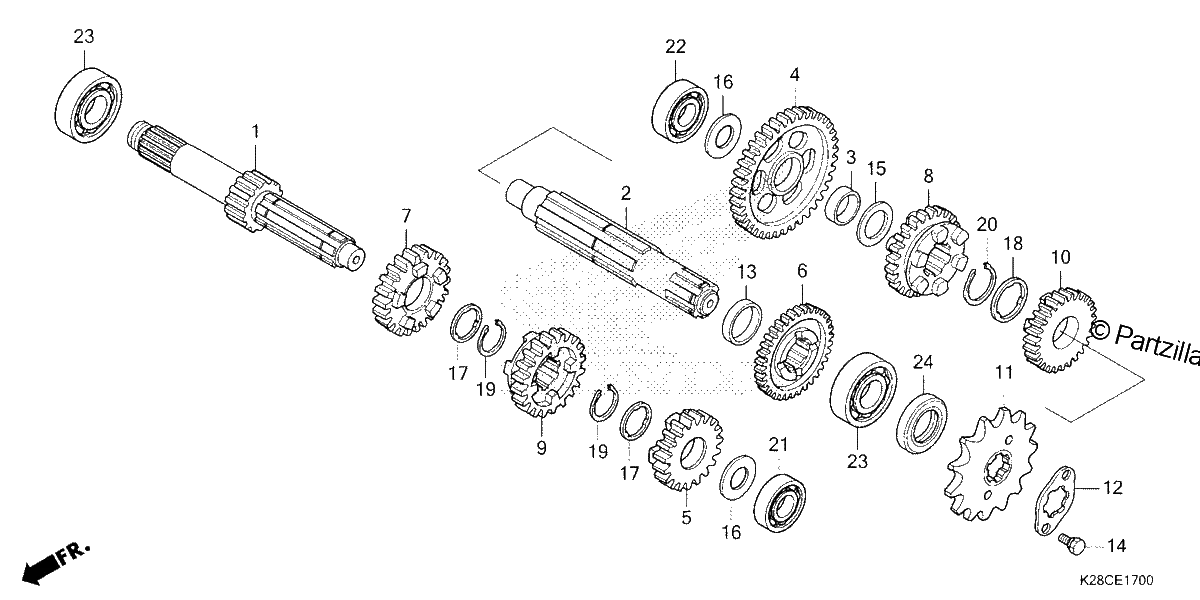

Diagrama de TRANSMISSION

Repuestos

#001
23211-KYY-900
MAINSHAFT (11T)
$141.15¢70 575
1
#002
23221-KYY-900
COUNTERSHAFT
$117.05¢58 525
1
#003
23415-KPH-900
BUSH (15MM)
$6.67¢3 338
1
#004
23421-KYY-900
GEAR, COUNTERSHAFT FIRST (35T)
$106.76¢53 381
1
#005
23431-KYY-900
GEAR, MAINSHAFT SECOND (17T)
$81.48¢40 738
1
#006
23441-KYY-900
GEAR, COUNTERSHAFT SECOND (29T)
$90.86¢45 431
1
#007
23451-KYY-901
GEAR, MAINSHAFT THIRD (21T)
$90.54¢45 269
1
#008
23461-KYY-901
GEAR, COUNTERSHAFT THIRD (26T)
$108.01¢54 006
1
#009
23471-KYY-901
GEAR, MAINSHAFT FOURTH (24T)
$98.63¢49 313
1
#010
23481-KYY-901
GEAR, COUNTERSHAFT FOURTH (22T)
$96.76¢48 381
1
#011
23801-K28-910
SPROCKET, DRIVE (13T)
$23.60¢11 800
1
#012
23802-K28-910
PLATE, FIXING
$5.38¢2 688
1
#013
23911-KWS-900
COLLAR (20MM)
$4.97¢2 488
1
#014
90084-041-000
BOLT, DRIVE SPROCKET FIXING
$5.59¢2 794
1
#015
90412-187-000
WASHER, THRUST (15MM)
$2.76¢1 381
1
#016
90412-KPH-900
WASHER, SPECIAL (12X23)
$0.90¢450
1
#017
90461-035-000
WASHER, SPLINE (17MM)
$3.33¢1 663
1
#018
90461-459-010
WASHER, SPLINE (20MM)
$7.13¢3 563
1
#019
90601-KYY-900
CIRCLIP (17MM)
$3.65¢1 825
1
#020
90602-KYY-900
CIRCLIP (20MM)
$4.53¢2 263
1
#021
91013-KZV-J01
BEARING, RADIAL BALL (6001)
$25.94¢12 969
1
#021
96100-60010-00
BEARING, RADIAL BALL (6001)
$25.94¢12 969
1
#022
91014-KZV-J01
BEARING, RADIAL BALL (6201)
$20.51¢10 256
1
#023
91015-KZV-J01
BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)
No Disponible
1
#024
91204-KWB-601
OIL SEAL (17X29X5)
$1.60¢800
1
