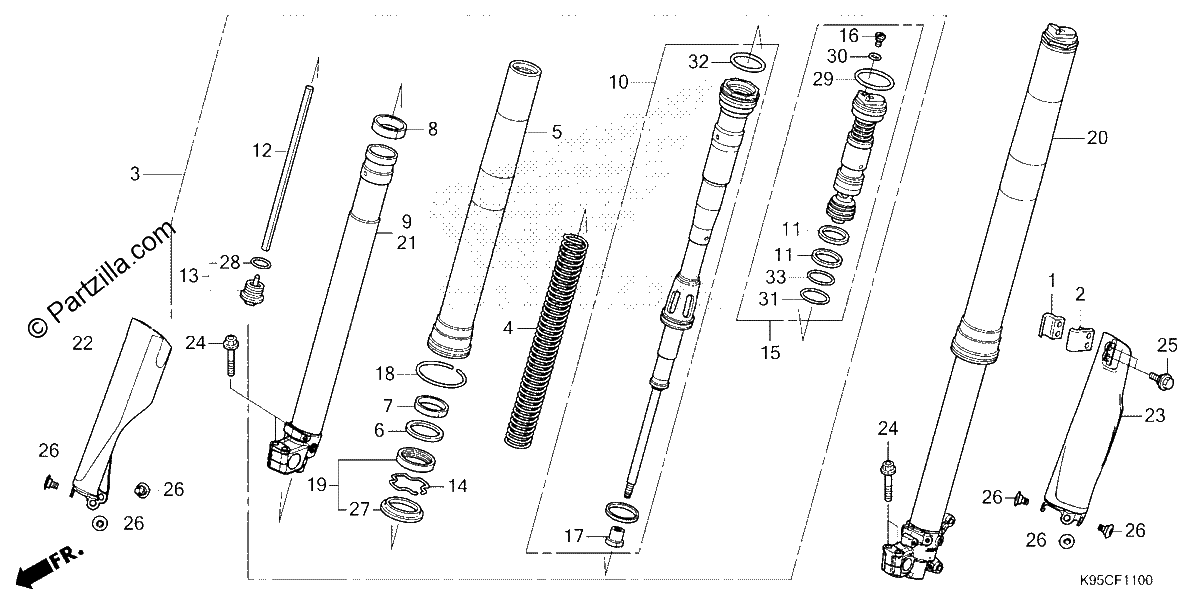

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, FR. BRAKE HOSE
$7.08¢3 542
#002
CLAMP B, FR. BRAKE HOSE
$5.22¢2 610
#003
FORK Assembly., Right Front. (WOL)
$1303.80¢651 901
#004
SPRING, Front FORK (4.6N/MM)
$84.97¢42 487
#004
SPRING, Front FORK (4.8N/MM)
$84.97¢42 487
#004
SPRING, Front FORK (5.0N/MM)
$84.97¢42 487
#005
TUBE (OUTER)
$422.22¢211 111
#006
RING, BACK-UP
$9.31¢4 658
#007
BUSH, GUIDE
$13.98¢6 992
#008
BUSH, SLIDER
$13.75¢6 877
#009
PIPE, Right SLIDE
$338.78¢169 389
#010
DAMPER, Front.
$355.32¢177 658
#011
BUSH, SLIDER
$16.25¢8 125
#012
COLLAR, REBOUND NEEDLE
$9.59¢4 796
#013
BOLT, CENTER
$41.89¢20 947
#014
RING, OIL SEAL STOP
$4.17¢2 087
#015
BOLT Assembly., Front FORK
$180.99¢90 494
#016
BOLT, PLUG
$6.92¢3 461
#017
NUT, LOCK
$13.97¢6 986
#018
RING, WEAR
$8.61¢4 307
#019
SEAL SET, Front FORK
$24.23¢12 115
#020
FORK Assembly., L Front. (WOL)
$1303.80¢651 901
#021
PIPE, L SLIDE
$338.78¢169 389
#022
PROTECTOR, Right Front FORK R292R (WOL)(EXTREME RED)
$90.40¢45 201
#023
PROTECTOR, L Front FORK R292R (WOL)(EXTREME RED)
$90.79¢45 396
#024
BOLT, FLANGE (8X40)
$2.53¢1 265
#025
BOLT, FLANGE (6MM)
$3.36¢1 679
#026
BOLT, PROTECTOR
$3.93¢1 967
#027
DUST SEAL
$11.71¢5 853
#028
O-RING (22.1X1.9)
$2.98¢1 489
#029
O-RING (42.2X2.4)
$6.59¢3 295
#030
O-RING (3.5X1.5)
$3.21¢1 604
#031
O-RING (35.5X2)
$2.84¢1 420
#032
O-RING (47.2X2.4)
$4.21¢2 105
#033
O-RING (32.7X3.5)
$3.75¢1 874
