CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

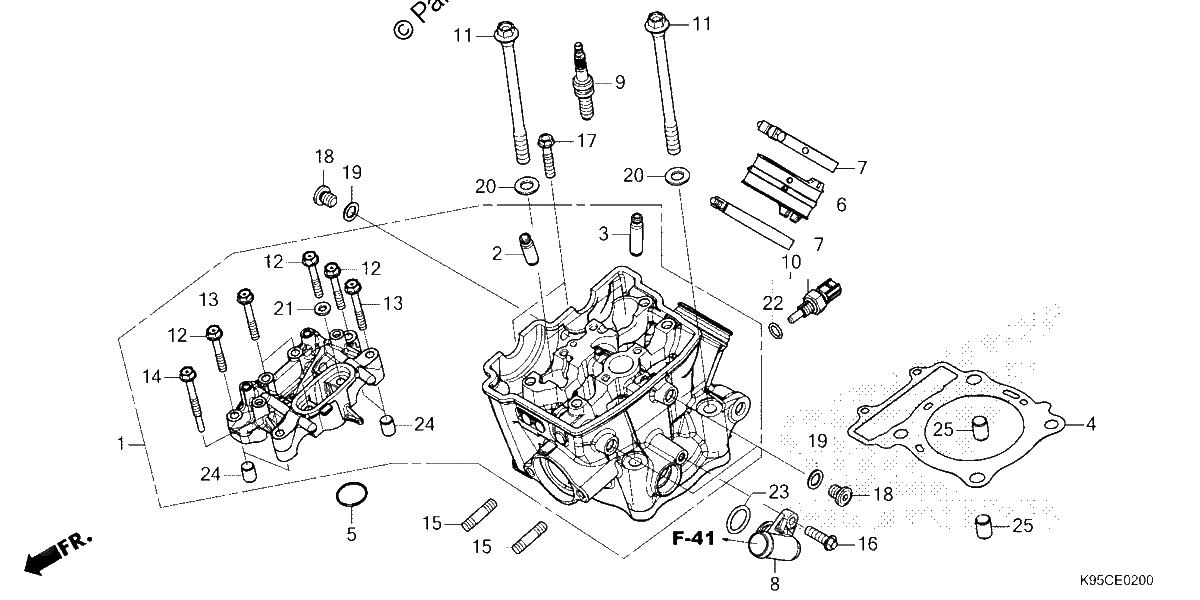

Diagrama de CYLINDER HEAD

Repuestos

#001
12010-K95-AA0
CYLINDER HEAD Assembly.
$639.81¢319 906
1
#002
12204-K95-P20
GUIDE, VALVE (OVER SIZE)
$19.51¢9 756
1
#003
12204-KRN-P10
GUIDE, VALVE (OVER SIZE)
$15.48¢7 738
1
#004
12251-K95-A21
GASKET, CYLINDER HEAD
$34.24¢17 119
1
#005
12395-MKR-D10
O-RING, PLUG HOLE
$4.15¢2 075
1
#006
16211-K95-AA0
INSULATOR, THROTTLE BODY
$18.27¢9 138
1
#007
16217-MKE-AF0
BAND, INSULATOR
$13.39¢6 694
1
#008
19523-KRN-730
JOINT, WATER
$19.42¢9 712
1
#009
31909-MEN-A31
SPARK PLUG (SILMAR9A9S) (NGK)
$21.36¢10 681
1
#010
37870-KZR-601
SENSOR Assembly., WATER TEMPERATURE (PANASONIC)
$10.38¢5 188
1
#011
90001-K95-A20
BOLT, FLANGE (10X135)
$9.47¢4 738
1
#012
90003-K95-A20
BOLT, FLANGE (6X40)
$3.77¢1 888
1
#013
90004-K95-AA0
BOLT, FLANGE (6X45)
$3.94¢1 969
1
#014
90007-K95-AA0
BOLT, SPECIAL FLANGE (6X45)
$6.76¢3 381
1
#015
90012-KM9-000
BOLT, STUD (8X34)
$3.85¢1 925
1
#016
90020-GHB-660
BOLT, FLANGE (6X20)
$2.99¢1 494
1
#017
90020-GHB-690
BOLT, FLANGE (6X28)
$2.99¢1 494
1
#018
90042-K95-AA0
BOLT, SPECIAL (10MM)
$4.85¢2 425
1
#019
90443-MB0-000
WASHER, SEALING (10.2MM)
$3.65¢1 825
1
#020
90453-MKE-A00
WASHER, PLAIN (10MM)
$3.65¢1 825
1
#021
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#022
91307-PLC-004
O-RING (9.5X1.9) (PANASONIC)
$3.76¢1 881
1
#023
91312-KE7-003
O-RING (19X3) (NOK)
$3.36¢1 681
1
#024
94301-08100
PIN, DOWEL (8X10)
$2.89¢1 444
1
#025
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
