SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

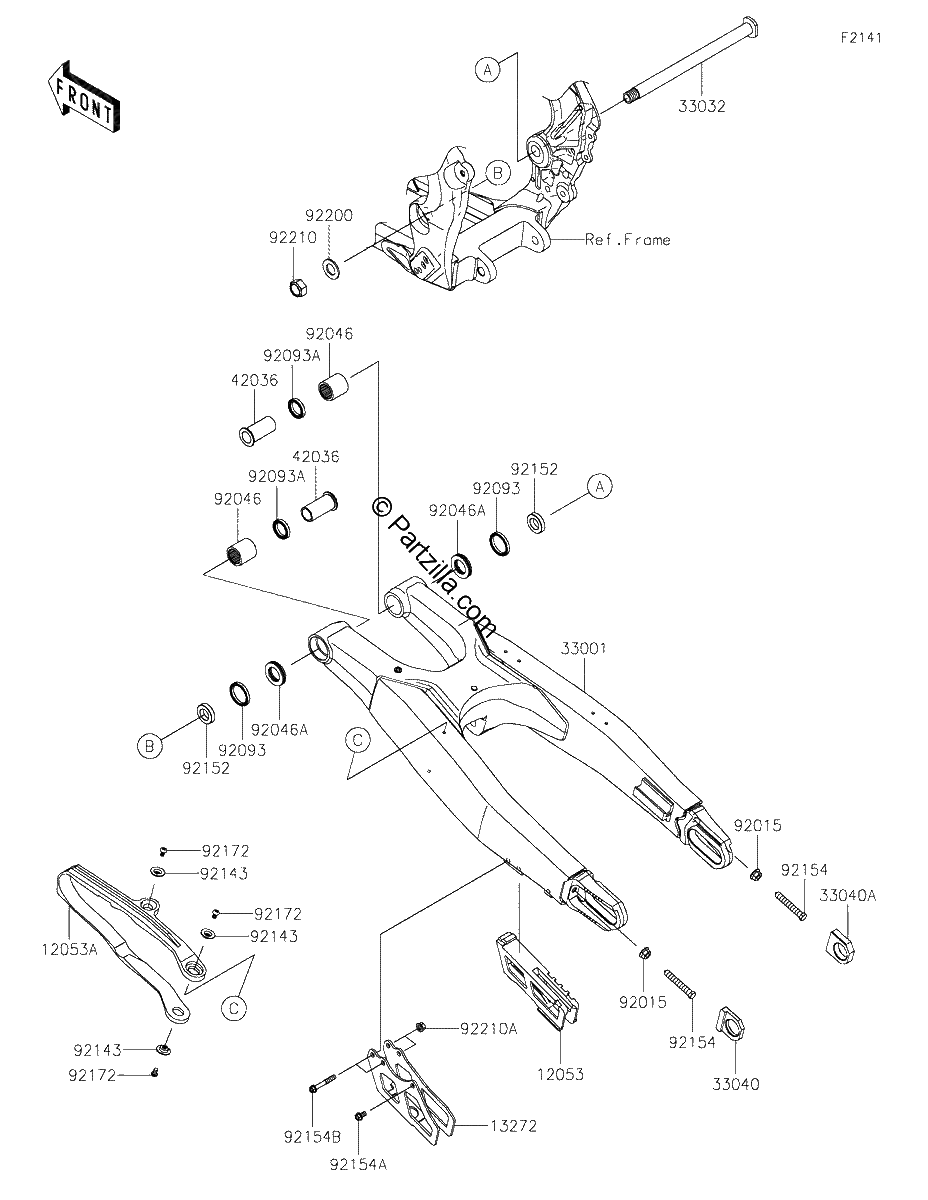

Diagrama de SWINGARM

Repuestos

#12053
12053-0125
GUIDE-CHAIN
$74.81¢37 406
1
#12053A
12053-0254
GUIDE CHAIN
$103.99¢51 994
1
#13272
13272-2485
PLATE,CHAIN GUARD
$56.31¢28 156
1
#33001
33001-0713
ARM-COMP-SWING
$1273.89¢636 944
1
#33032
33032-0012
SHAFT-SWING ARM
$57.47¢28 737
1
#33040
33040-0050
ADJUSTER CHAIN,Left Hand
$16.86¢8 431
1
#33040A
33040-0080
ADJUSTER-CHAIN,RH
$16.86¢8 431
1
#42036
42036-0784
SLEEVE,17X22X47.3
$34.16¢17 081
1
#92015
92015-1014
NUT,FLANGED,8MM
$0.74¢369
1
#92046
92046-1174
BEARING-NEEDLE,TA2230Z
$42.01¢21 006
1
#92046A
92046-1240
BEARING NEEDLE,NTBR22356E01
$18.79¢9 394
1
#92093A
92093-1435
SEAL,SDO22X29X5
$8.73¢4 363
1
#92093
92093-1434
SEAL,SDO29X35X4.5
$9.05¢4 525
1
#92143
92143-1676
COLLAR
$6.09¢3 044
1
#92152
92152-2222
COLLAR,17.1X29X6.7
$14.05¢7 025
1
#92154B
92154-2968
BOLT,6X40
$1.04¢519
1
#92154A
92154-2963
BOLT,6X10
$0.81¢406
1
#92154
92154-2957
BOLT,8X50
$4.81¢2 406
1
#92172
92172-0119
SCREW,5X8
$2.00¢1 000
1
#92200
92200-0285
WASHER,17.2X30X2.3
$3.89¢1 944
1
#92210
92210-0285
NUT,LOCK,16MM
$21.51¢10 756
1
#92210A
92210-0630
NUT,FLANGED,6MM
$1.90¢950
1
