HANDLE SWITCH MIRROR CMX1100D D2 D3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

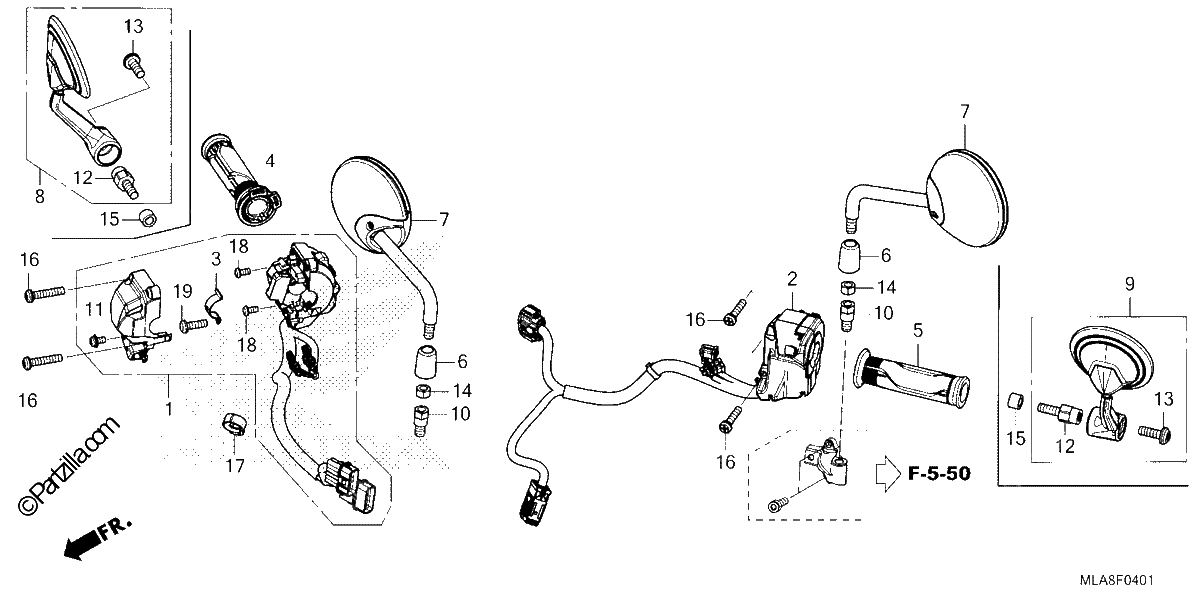

Diagrama de HANDLE SWITCH MIRROR CMX1100D D2 D3

Repuestos

#001
35135-MLA-AF1
SWITCH UNIT, ENGINE STOP & D-NMODE & GRIP APS
$369.66¢184 828
1
#002
35200-MLA-AF1
SWITCH Assembly., TURN SIGNAL & HAND SHIFT
$300.03¢150 017
1
#003
37971-MLL-D01
PLATE A, SETTING
$3.62¢1 811
1
#004
53140-MKK-D01
GRIP ASSY., THROTTLE
$41.95¢20 976
1
#005
53166-MGE-000
GRIP, L. HANDLE
$18.95¢9 476
1
#006
88119-K87-A00
CAP, LOCK NUT
$2.56¢1 282
1
#007
88210-MLA-A01ZA
MIRROR NH105 (MAT BLACK) (Right SIDE)
$35.67¢17 836
1
#010
90101-KWW-640
BOLT, ADAPTER (10MM)
$2.66¢1 328
1
#011
90110-MKS-E20
SCREW-WASHER (4X8)
$1.71¢857
1
#014
90301-KWW-640
NUT, HEX. (10MM) (LEFT HAND THREAD)
$1.28¢638
1
#016
90508-MGE-D00
SCREW-WASHER (5X25)
$1.53¢765
1
#017
90683-KJ2-003
CLIP, WIRE HARNESS
$3.98¢1 989
1
#018
93892-04008-08
SCREW-WASHER (4X8)
$1.36¢678
1
#018
93892-04008-18
SCREW-WASHER (4X8)
$1.36¢678
1
#019
93892-05008-08
SCREW-WASHER (5X8)
$1.24¢621
1
