GENERATOR COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

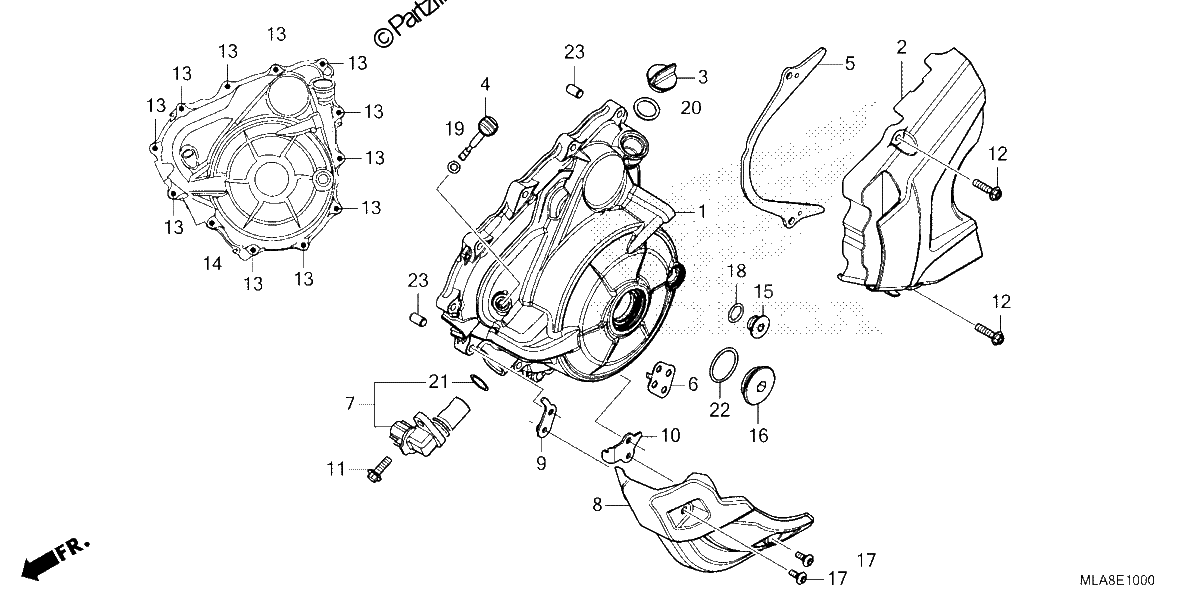

Diagrama de GENERATOR COVER

Repuestos

#001
11320-MLA-A00
COVER, ALTERNATOR
$318.49¢159 246
1
#002
11350-MLA-A00
COVER, L. RR.
$89.87¢44 936
1
#003
15611-KA4-710
CAP, OIL FILLER
$15.38¢7 688
1
#004
15650-MKK-D00
DIPSTICK, OIL
$19.78¢9 890
1
#005
23812-MLA-A00
GUIDE, DRIVE CHAIN
$14.31¢7 153
1
#006
32158-MJM-D00
STAY, HARNESS CLIP
$6.09¢3 048
1
#007
37500-MKT-D02
SENSOR Assembly., CRANK
$63.85¢31 924
1
#008
64401-MLA-A00
COVER, ALTERNATOR CORD
$15.24¢7 619
1
#009
64402-MLA-A00
STAY, Front ALTERNATOR COVER
$4.63¢2 317
1
#010
64403-MJP-G50
STAY, RR. ALTERNATOR COVER
$6.87¢3 433
1
#011
90026-GHB-650
BOLT, FLANGE (6X18)
$2.64¢1 322
1
#012
90026-GHB-680
BOLT, FLANGE (6X25)
$2.59¢1 294
1
#013
90026-GHB-690
BOLT, FLANGE (6X28)
$2.59¢1 294
1
#014
90026-GHB-740
BOLT, FLANGE (6X40)
$2.83¢1 414
1
#015
90084-MN8-010
CAP (14MM)
$13.68¢6 842
1
#016
90087-MJP-G50
CAP (30MM)
$19.91¢9 953
1
#017
90112-MLA-A00
SCREW, PAN (5X13)
$3.36¢1 679
1
#018
91303-377-000
O-RING (13.8X2.5)
$3.82¢1 909
1
#019
91303-MJ0-003
O-RING (6.3X2.3) (ARAI)
$4.52¢2 260
1
#020
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#021
91333-PNC-006
O-RING
$3.90¢1 949
1
#022
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.36¢1 679
1
#023
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
