FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

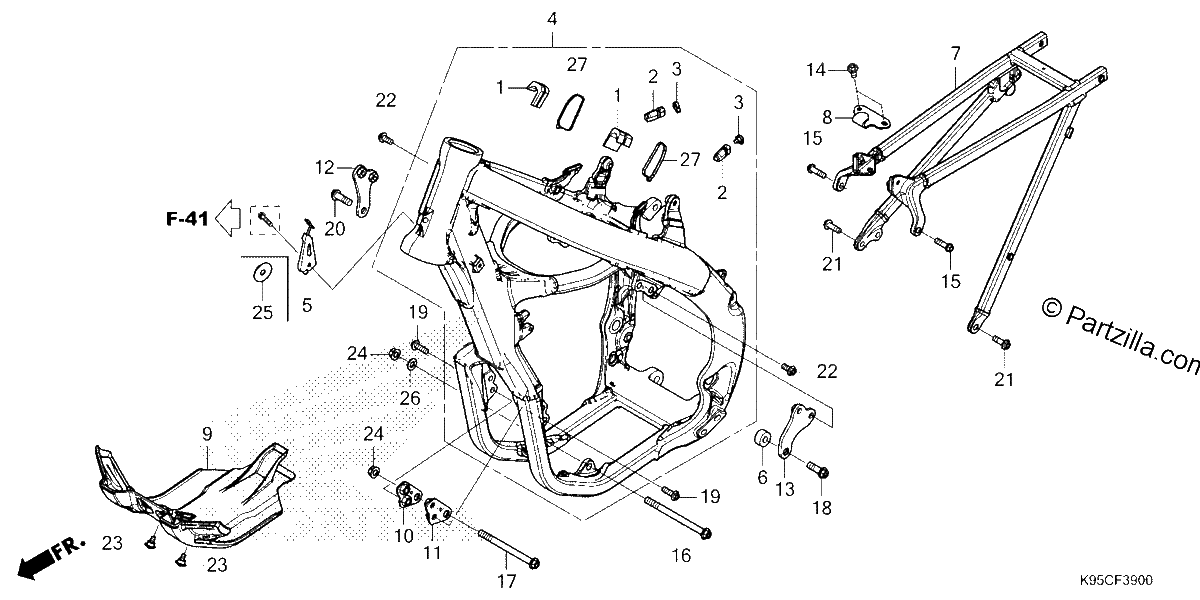

Diagrama de FRAME

Repuestos

#001
17522-MEN-730
RUBBER, TANK SIDE MOUNTING
$7.99¢3 994
1
#002
17526-MKE-AF0
RUBBER, RR. TANK MOUNTING
$5.65¢2 825
1
#003
35701-MG9-950
BAND (BLACK 3.5X140)
$2.56¢1 281
1
#004
50010-K95-AG0
FRAME SET
$2353.21¢1 176 606
1
#005
50128-K95-AA0
GUIDE, CABLE
$12.85¢6 425
1
#006
50194-K95-AA0
COLLAR, ENGINE HANGER
$9.06¢4 531
1
#007
50200-K95-AG0
FRAME, Rear.
$534.58¢267 288
1
#008
50210-K95-AG0
STAY, TANK HOOK
$8.89¢4 444
1
#009
50357-MKE-AF0
GUARD, ENGINE
$33.42¢16 713
1
#010
50405-K95-AA0
PLATE, Right Front HANGER
$14.45¢7 225
1
#011
50406-K95-AA0
PLATE, L Front HANGER
$14.45¢7 225
1
#012
50407-K95-AA0
PLATE, Right HEAD HANGER
$25.26¢12 631
1
#013
50408-K95-AA0
PLATE, L HEAD HANGER
$30.23¢15 113
1
#014
90025-GHB-620
BOLT, FLANGE (6X12)
$2.88¢1 438
1
#015
90101-KZ3-J50
BOLT, FLANGE (8X24)
$3.43¢1 713
1
#016
90102-MKE-AF0
BOLT, FLANGE (10X134) (SH)
$9.00¢4 500
1
#017
90104-MKE-AF0
BOLT, FLANGE (10X121.5) (SH)
$9.53¢4 763
1
#018
90105-MEN-A30
BOLT, FLANGE (10X37)
$4.41¢2 206
1
#019
90109-MKE-A00
BOLT, FLANGE (8X25) (SH)
$3.65¢1 825
1
#020
90122-MEN-730
BOLT (10X24)
$2.99¢1 494
1
#021
90122-MKE-AF0
BOLT, FLANGE (8X24)
$4.13¢2 063
1
#022
90123-MEN-730
BOLT (8X18)
$2.54¢1 269
1
#023
90126-MKE-A00
BOLT, SPECIAL (6MM)
$3.71¢1 856
1
#024
90302-KZ3-J40
NUT, FLANGE (10MM)
$3.50¢1 750
1
#026
90410-HC4-000
WASHER (10MM)
$4.63¢2 313
1
#027
91560-MS8-600
TY-RAP, CABLE
$3.05¢1 525
1
