FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

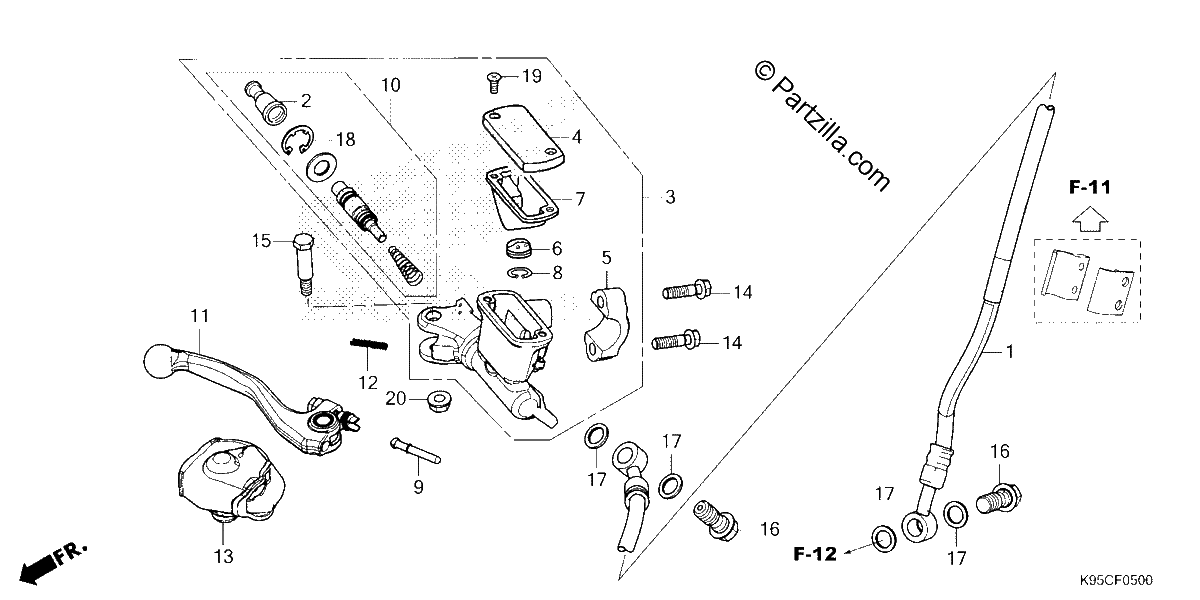

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
45125-MKE-A71
HOSE, Front BRAKE
$169.16¢84 581
1
#002
45504-MEN-J01
BOOT
$11.85¢5 925
1
#003
45510-KRN-A91
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$272.93¢136 463
1
#004
45513-KCE-671
CAP, MASTER CYLINDER
$26.71¢13 356
1
#005
45517-GW0-751
HOLDER, MASTER CYLINDER
$14.40¢7 200
1
#006
45518-MEN-J01
SEPARATOR
$9.24¢4 619
1
#007
45520-KA3-731
DIAPHRAGM
$15.75¢7 875
1
#008
45523-KA3-731
RING
$3.65¢1 825
1
#009
45525-MEN-J01
ROD, PUSH
$9.39¢4 694
1
#010
45530-MEN-J01
PISTON SET, MASTER CYLINDER
$46.06¢23 031
1
#011
53171-MEN-J01
LEVER, R. HANDLEBAR
$44.13¢22 063
1
#012
53174-KN5-006
SPRING, BRAKE LEVER
$3.65¢1 825
1
#014
90020-GHB-670
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#015
90114-MKE-AG1
BOLT, LEVER PIVOT
$7.66¢3 831
1
#016
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#017
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#018
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#019
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#019
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#020
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
