FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

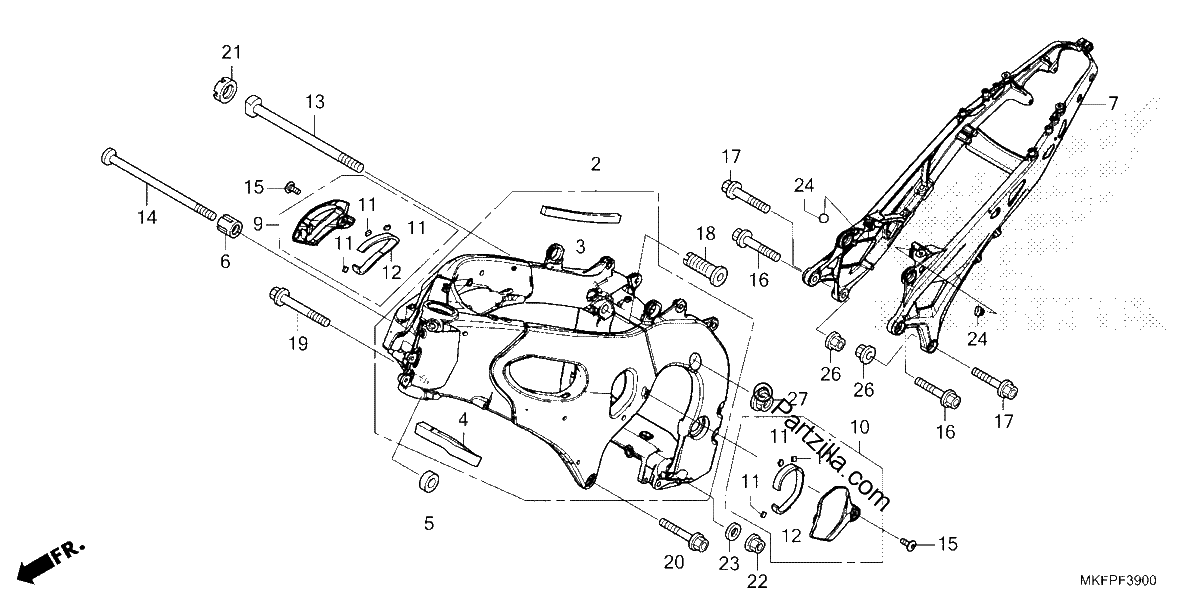

Diagrama de FRAME

Repuestos

#002
50010-MKF-A20ZC
FRAME SET NHA86M (MAT BALLISTIC BLACK)
$2055.79¢1 027 893
1
#003
50132-MFJ-J00
MAT A, PIVOT BRACKET
$2.83¢1 414
1
#004
50133-MFJ-J00
MAT B, PIVOT BRACKET
$2.79¢1 397
1
#005
50193-MKF-D40
COLLAR A, ENGINE HANGER
$9.08¢4 542
1
#006
50194-MFL-000
COLLAR C, ENGINE HANGER
$24.53¢12 265
1
#007
50200-MKF-D41ZB
RAIL Assembly., SEAT NHA86M (MAT BALLISTIC BLACK)
$637.99¢318 993
1
#009
83215-MKF-D40
COVER, R. FRAME SIDE
$22.29¢11 143
1
#010
83265-MKF-D40
COVER, L. FRAME SIDE
$22.29¢11 143
1
#011
83266-MKF-D40
RUBBER, PROTECTOR
$2.32¢1 162
1
#012
83640-MGE-700
URETHANE, R. HEAT GUARD
$2.22¢1 110
1
#013
90101-MFL-000
BOLT, SPECIAL (12X261.5)
$16.04¢8 021
1
#014
90102-MFL-000
BOLT, SPECIAL (12X269.5)
$25.94¢12 972
1
#015
90108-MKF-D40
SCREW, SPECIAL (6MM)
$3.81¢1 903
1
#016
90109-MFL-000
BOLT, FLANGE (10X29)
$7.97¢3 985
1
#017
90110-MFL-000
BOLT, FLANGE (10X33.5)
$7.97¢3 985
1
#018
90152-MFL-000
BOLT, ADJUSTING (20X1.0X49.5)
$17.87¢8 936
1
#019
90163-MFL-D20
BOLT, FLANGE (12X50)
$4.96¢2 478
1
#020
90164-MFL-D20
BOLT, FLANGE (12X45)
$4.96¢2 478
1
#021
90303-MFJ-D00
NUT, LOCK (20MM) (P=1.0)
$8.07¢4 036
1
#022
90371-MFL-000
NUT, FLANGE (12MM)
$2.06¢1 029
1
#023
90439-K23-C00
WASHER (12X24X2.3)
$2.09¢1 047
1
#024
90572-KV3-300
RUBBER, SEPARATOR MOUNTING
$4.78¢2 392
1
#026
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#027
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
