SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

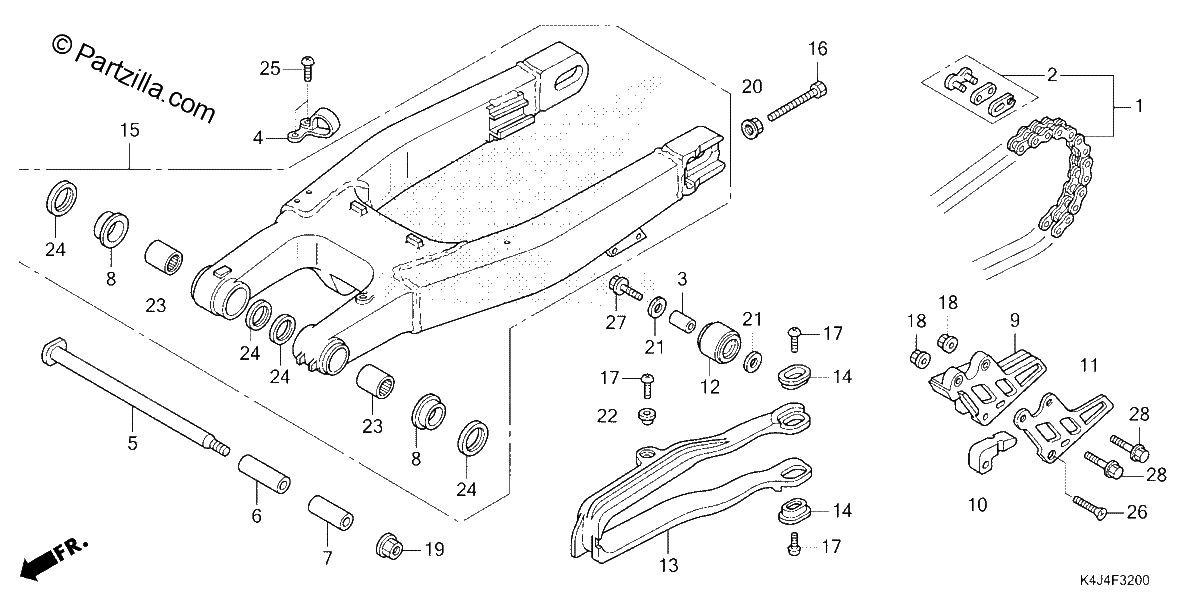

Diagrama de SWINGARM

Repuestos

#001
40530-KSE-841
CHAIN, DRIVE (DID420DS3-126RB) (DAIDO)
$108.79¢54 394
1
#001
40540-KSE-003
CHAIN, DRIVE (DID420DS3-130RB) (DAIDO)
$88.66¢44 331
1
#002
40531-KSE-671
MASTER LINK
$9.98¢4 988
1
#003
43435-392-000
COLLAR, LINK
$7.16¢3 581
1
#004
43468-MEB-000
GUIDE, RR. BRAKE HOSE
$4.68¢2 338
1
#005
52101-KSE-000
SHAFT, SWINGARM PIVOT
$19.04¢9 519
1
#006
52141-GBF-J00
COLLAR, R. SWINGARM
$22.00¢11 000
1
#007
52142-GBF-J00
COLLAR, L. SWINGARM
$19.39¢9 694
1
#008
52143-GBF-J00
COLLAR, THRUST PIVOT
$8.47¢4 238
1
#009
52146-KSE-000
GUIDE, CHAIN
$34.66¢17 331
1
#010
52147-GM7-701
SLIDER, CHAIN GUIDE
$17.01¢8 506
1
#011
52147-KSE-000
PLATE, CHAIN GUIDE
$31.54¢15 769
1
#012
52158-GBF-830
ROLLER, CHAIN TENSIONER
$20.66¢10 331
1
#013
52170-KSE-N10
SLIDER, CHAIN
$50.82¢25 412
1
#014
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#015
52200-KSE-N40
SWINGARM SUB-ASSY., RR.
$931.39¢465 694
1
#016
90105-MEN-000
BOLT, HEX. (8X47.5)
$3.65¢1 825
1
#017
90115-KV3-700
SCREW, PAN (5X8)
$3.36¢1 681
1
#018
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#019
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
1
#020
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#021
90485-KSE-000
WASHER (8MM)
$2.60¢1 300
1
#022
90520-134-000
WASHER, HEADLIGHT CASE SETTING
$3.43¢1 713
1
#023
91070-GC4-601
BEARING, NEEDLE (20X26X20) (NTN)
$28.71¢14 356
1
#024
91254-KS6-003
DUST SEAL (20X26X4.5) (ARAI)
$10.76¢5 381
1
#025
93500-05008-0A
SCREW, PAN (5X8)
$1.13¢563
1
#026
93600-06040-0A
SCREW, FLAT (6X40)
$1.68¢838
1
#027
95701-08035-00
BOLT, FLANGE (8X35)
$2.95¢1 475
1
#028
96001-06035-00
BOLT, FLANGE (6X35)
$1.80¢900
1
