PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

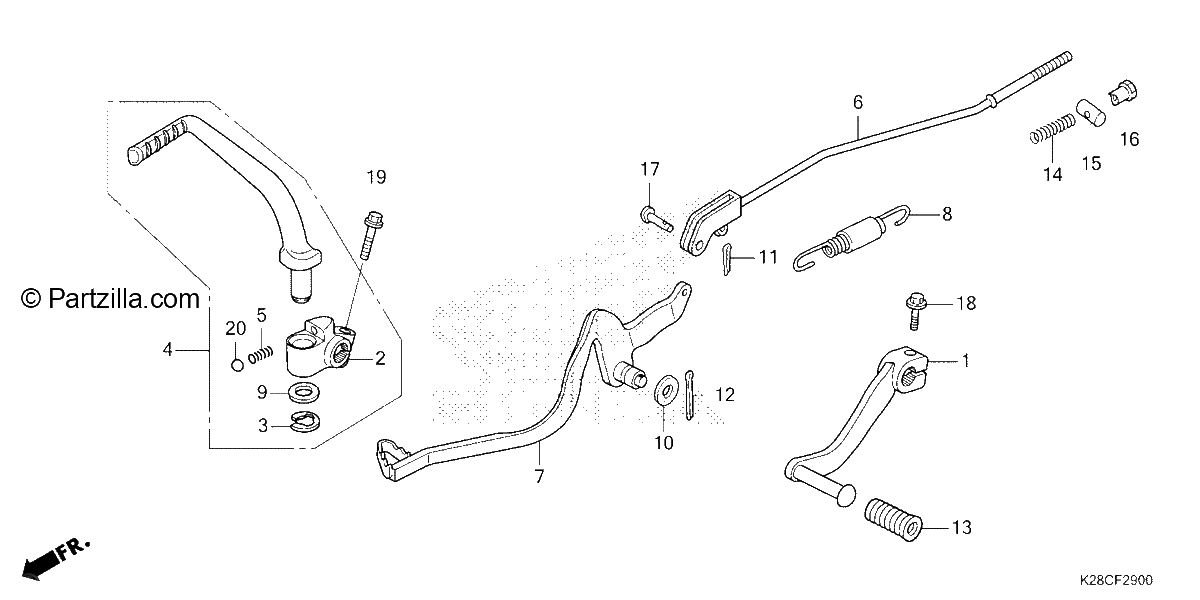

Diagrama de PEDAL

Repuestos

#001
24701-K28-305
PEDAL, GEARSHIFT (COO)
$43.32¢21 662
1
#001
24701-K28-910
PEDAL, GEARSHIFT
$43.32¢21 662
1
#002
28241-K28-910
JOINT, KICK ARM
$58.65¢29 325
1
#003
28293-333-000
CLIP, KICK STARTER ARM
$3.44¢1 719
1
#004
28300-K28-305
ARM ASSY., KICK STARTER (COO)
$143.72¢71 863
1
#004
28300-K28-910
ARM Assembly., KICK STARTER
$143.72¢71 863
1
#005
28333-KK0-000
SPRING, KICK STARTER
$3.24¢1 619
1
#006
43451-K28-920
ROD, RR. BRAKE
$22.46¢11 231
1
#007
46500-K28-910
PEDAL, BRAKE
$82.25¢41 125
1
#008
46513-KRH-900
SPRING SET, BRAKE PEDAL
$13.79¢6 894
1
#009
90505-KRM-860
WASHER (15.5X22)
$0.43¢213
1
#010
94101-10000
WASHER, PLAIN (10MM)
$1.47¢737
1
#011
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#012
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#013
95011-40000
RUBBER, CHANGE PEDAL
$1.63¢813
1
#014
95014-73100
SPRING A, BRAKE ROD
$1.66¢831
1
#015
95015-32001
JOINT B, BRAKE ARM
$1.21¢606
1
#016
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.48¢1 238
1
#017
95015-53000
PIN C, JOINT
$3.71¢1 856
1
#018
95701-06020-08
BOLT, FLANGE (6X20)
$0.47¢238
1
#019
95701-08028-08
BOLT, FLANGE (8X28)
$2.70¢1 350
1
#020
96211-08000
BALL, STEEL (#8) (1/4)
$1.60¢800
1
