WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

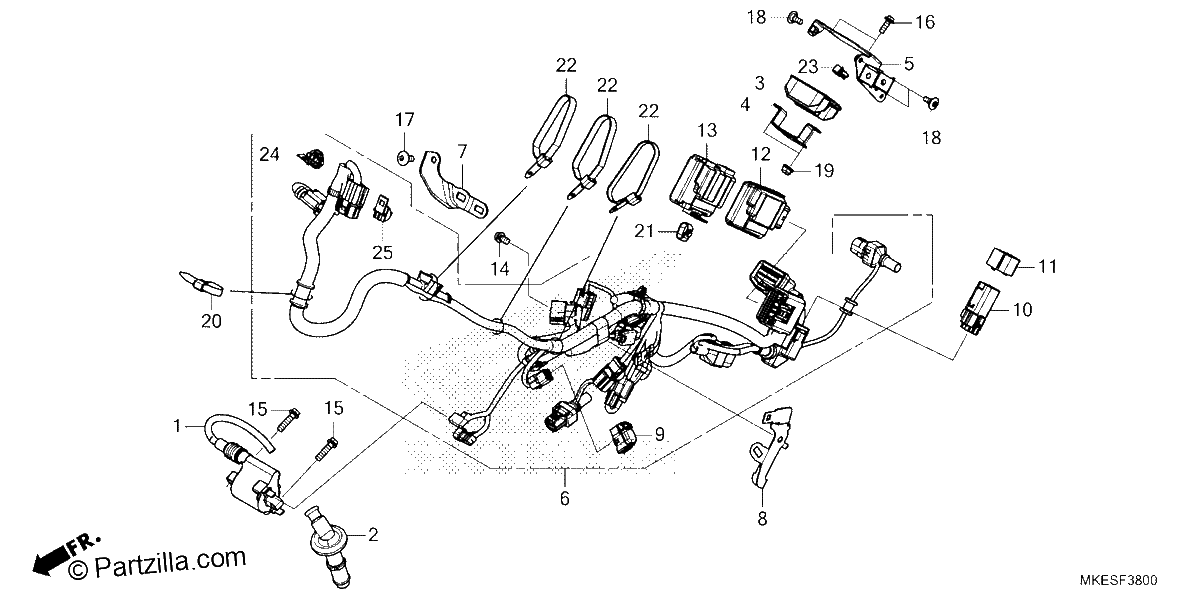

Diagrama de WIRE HARNESS

Repuestos

#001
30500-MKE-A01
COIL ASSY., IGNITION
$74.22¢37 111
1
#002
30700-MKE-A01
CAP ASSY., NOISE SUPPRESSOR
$66.64¢33 321
1
#003
31600-KZL-931
RECTIFIER ASSY., REGULATE
$188.48¢94 242
1
#004
31601-K95-AG0
COVER, REGULATOR CONNECTING
$5.62¢2 812
1
#005
31605-K95-AG0
STAY, REGULATE RECTIFIER
$22.88¢11 442
1
#006
32100-K95-AH0
WIRE HARNESS
$331.69¢165 847
1
#007
32110-MKE-AF0
STAY, FR. CONNECTOR
$11.15¢5 577
1
#008
32125-MKE-AF0
STAY, HARNESS (L)
$9.11¢4 554
1
#009
32606-K44-V01
CAP, DUMMY (WPC 4P 090 M) (RED)
$8.02¢4 008
1
#010
38580-MKE-A61
RELAY (2P) (WPC)
$54.08¢27 042
1
#011
38585-MKE-A11
CUSHION, RELAY
$6.45¢3 226
1
#012
38770-MKE-BP1
PGM-FI UNIT
$600.54¢300 271
1
#013
38771-K95-AG0
SUSPENSION, PGM-FI UNIT
$12.03¢6 015
1
#014
90020-GHB-610
BOLT, FLANGE (6X10)
$2.51¢1 254
1
#015
90020-GHB-670
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#016
90025-GHB-650
BOLT, FLANGE (6X18)
$2.54¢1 271
1
#017
90106-KSE-000
SCREW, PAN (6X12)
$2.27¢1 133
1
#018
90114-MAC-780
BOLT, FR. DISK COVER
$3.45¢1 725
1
#019
90343-ZE6-000
NUT, SELF-LOCK (6MM)
$2.01¢1 006
1
#020
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#021
90652-MKH-D20
BAND, RUBBER (50)
$3.47¢1 737
1
#022
90679-KPE-C21
BAND, SUCTION HOSE
$2.43¢1 213
1
#023
90682-MGS-D41
CLIP, CABLE
$3.96¢1 978
1
#024
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
1
#025
91565-S0X-003
CLIP, CONNECTOR (DARK GREEN)
$4.30¢2 151
1
